MV-105 cable

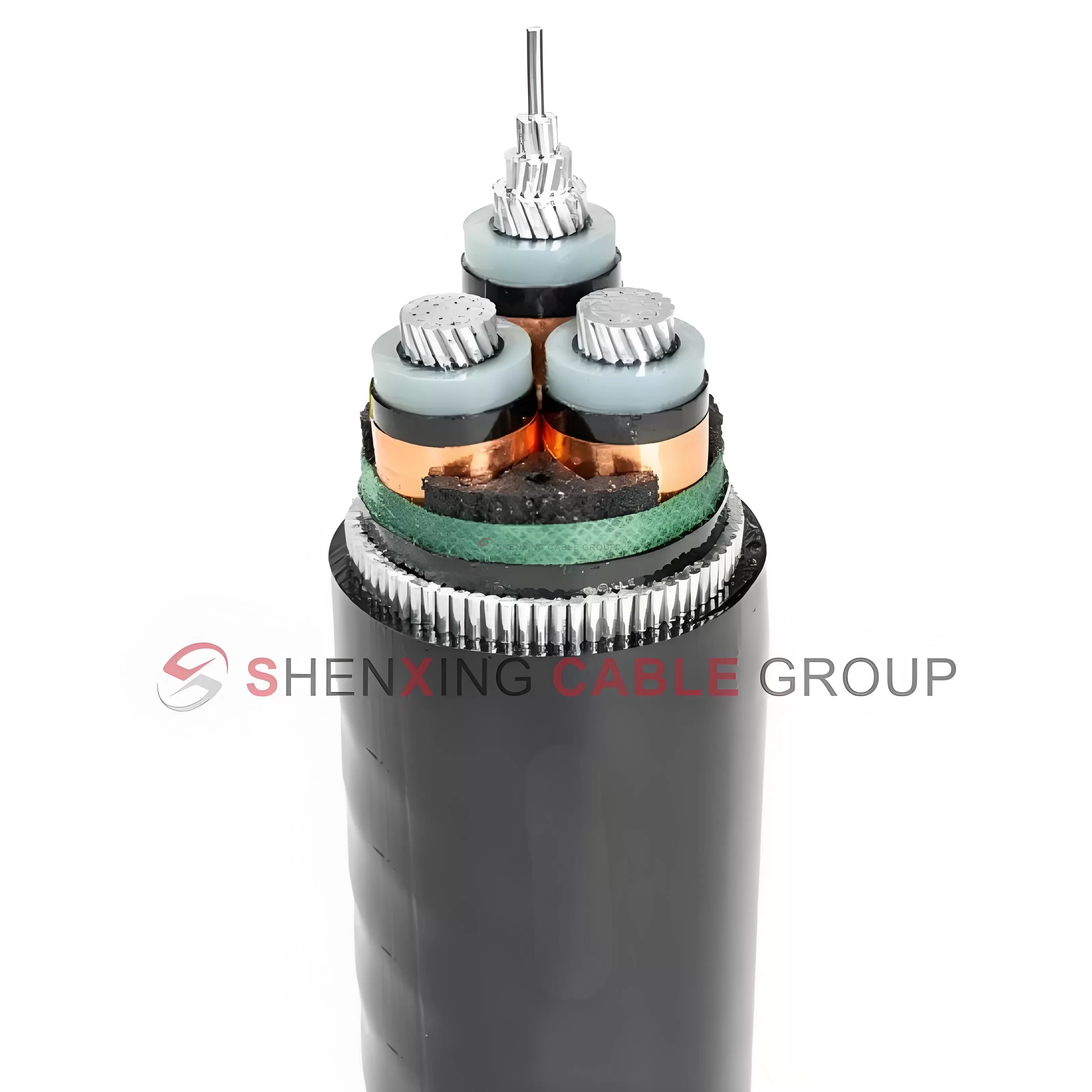

MV-105 Medium Voltage Power Cable

5kV, 8kV, 15kV, 25kV & 35kV

Shenxing's MV-105 Medium-Voltage Power Cable is for use in main feeder, distribution and branch circuits in industrial, commercial and electric utility installations.

The MV-105 cable is suitable for use in wet or dry working environments, and its conductor operating temperature must meet the classification standards: no more than 90°C under normal working conditions, an upper limit of 130°C under emergency overload conditions, and an instantaneous tolerance of 250°C under extreme short-circuit conditions. The cable can carry a maximum voltage of 15,000 volts and is equipped with a 133% insulation redundancy level to meet the safe operation requirements of the power system under complex working conditions.

Features

UL listed as Type MV-105

Flame retardant: IEC 60332-1

Excellent mechanical and physical properties

Sunlight resistant jacket

Suitable for direct burial, use in cable tray and embedment in concrete.

Experimental Performance

Rated Voltage:

Maximum operating temperature 90℃

Conductor maximum temperature 250℃ during short circuit (no more than 5 seconds)

Laying temperature not less than 0℃

Tensile strength ≥12.5N/mm²

Cable Bending Radius:

Single core: 20D±5%

Three cores without armor: 15D±5%

Three cores with armor: 12D±5%

Specifications / Conform To:
Complies with international standards such as IEC 60502, IEC 60228 and GB/T 12706 to ensure product safety and reliability.
