Control Cable Basics: Types, Size and Color Code

May 27, 2025

Share:

Control cables are essential components in industrial, commercial, and residential electrical systems. They are used to transmit signals and control commands between equipment, ensuring proper operation and coordination of machinery and automation systems. These cables are commonly found in manufacturing plants, power stations, transportation systems, and building management systems.


Designed for flexibility, durability, and precision, control cables are typically shielded to reduce electromagnetic interference and can handle low-voltage signals. Their insulation and sheathing materials are chosen based on the application environment, such as resistance to heat, oil, moisture, or chemicals.


Types of Control Cables


There are several types of control cables, each suited for specific applications. The most common include:


  • Unshielded Control Cables: These cables are suitable for general-purpose applications where electromagnetic interference (EMI) is not a concern.

  • Shielded Control Cables: These include a layer of shielding (such as braided copper or aluminum foil) to protect against EMI. They are used in environments with high electrical noise.

  • Multicore Control Cables: These cables have multiple conductors under one jacket, often used for complex systems where multiple signals must be transmitted.

  • Armored Control Cables: Designed with additional protection for use in environments prone to mechanical damage or where additional strength is needed.

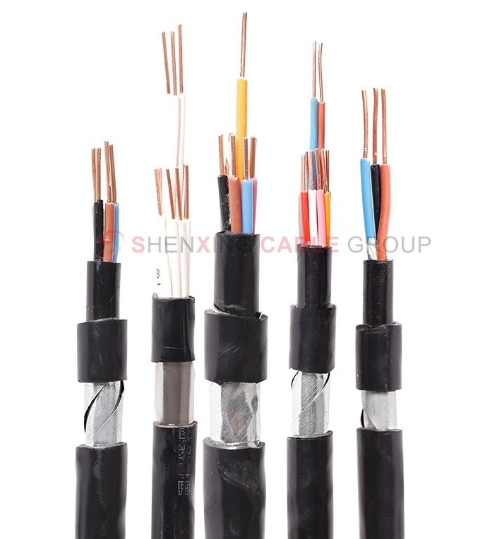

Multi-core Armored Control Flexible Cable

Multi-core Armored Control Flexible Cable

Control Cable Size


The size of a control cable refers to the cross-sectional area of its conductors, typically measured in square millimeters (mm²) or American Wire Gauge (AWG). The correct cable size ensures safe and efficient signal transmission without excessive voltage drop or overheating.


Common control cable sizes include:

  • 0.5 mm² to 1.5 mm² – Used for low-power signal transmission and simple control functions.

  • 2.5 mm² to 4 mm² – Suitable for higher current applications or longer distance signal transmission.

  • 6 mm² and above – Applied in heavy-duty control systems with significant power requirements.

Choosing the right cable size depends on factors such as current load, installation length, ambient temperature, and voltage requirements.


Control Cable Color Code


Color coding is used to identify individual conductors in a multi-core control cable, aiding in proper installation and maintenance. Color codes vary depending on regional standards (such as IEC, NEC, or local codes), but the following is a general guide:


  • Black: Commonly used for standard conductors or live wires in control systems.

  • Red: Often indicates a second live wire or an interconnecting wire.

  • Blue: Frequently used for neutral wires or signaling.

  • Green/Yellow: Reserved for grounding/earth conductors (protective earth).

  • White/Grey: May represent auxiliary or control circuit wiring.


It's essential to follow local wiring regulations and standards to ensure safe and accurate cable identification during installation and troubleshooting.


Conclusion


Control cables are vital for transmitting signals and controlling automated systems across various industries. Understanding the types, sizes, and color codes of control cables helps ensure the right cable is selected for each application. Proper specification, installation, and maintenance of control cables contribute to system reliability, operational safety, and long-term performance.
