​Differences Between Shielded and Unshielded Cables

When it comes to electrical cables, the decision between shielded and unshielded cables is a crucial one for both performance and safety. These two types of cables are used in various applications, from industrial settings to everyday electronics, but understanding the differences between them can help you make an informed decision. In this article, we will explore the unique characteristics, advantages, and ideal use cases of shielded and unshielded cables. We will also delve into factors like cost, installation, and protection against interference, helping you determine which type of cable best suits your needs.

What are Shielded Cables?

Shielded cables are designed to protect the transmission of electrical signals from external electromagnetic interference (EMI) or radio frequency interference (RFI). These cables feature an additional layer of protective material, often in the form of a metallic shield, that surrounds the wire or conductor. The shield can be made from materials like copper, aluminum, or even braided metal. The primary purpose of this shield is to minimize the impact of external sources of interference that could disrupt the signal or lead to data corruption.

Shielded cables are often used in environments with high electromagnetic activity, such as industrial facilities, hospitals, and locations with sensitive equipment. They are also commonly used in applications where data integrity is critical, like networking, telecommunications, and audio-visual systems.

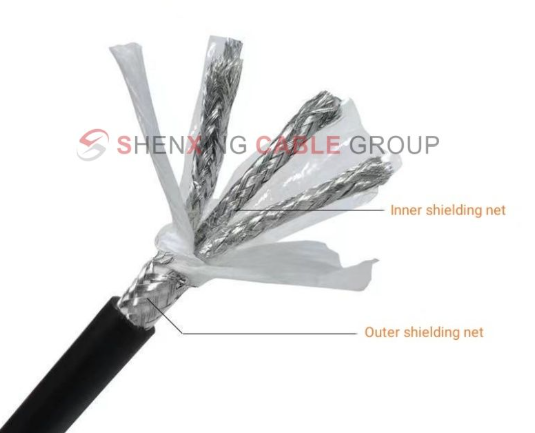

Shielded control cable

What are Unshielded Cables?

Unshielded cables, as the name suggests, lack the additional protective layer found in shielded cables. They are composed of a single conductor (or multiple conductors) encased in an insulating material. While unshielded cables are typically simpler in design and less expensive to manufacture, they are more vulnerable to interference from external sources. This makes them less ideal for environments where electromagnetic interference is prevalent or where high-speed data transmission is required.

Unshielded cables are often used in situations where EMI or RFI is not a significant concern. Examples include home networking setups, basic power supply applications, and other general-purpose wiring scenarios. They are also more common in short-distance connections, as the risk of interference is lower in such cases.

Key Differences Between Shielded and Unshielded Cables

Several key factors distinguish shielded and unshielded cables, including their construction, performance, cost, and use cases. Let’s break down these differences to help you understand which option might be best suited for your specific needs.

Control Cable

Construction and Design

The most obvious difference between shielded and unshielded cables is their construction. Shielded cables have an additional protective layer of metal or other conductive materials surrounding the conductors. This shield is designed to prevent external electrical noise from interfering with the signal being transmitted. In contrast, unshielded cables lack this extra layer of protection, making them more susceptible to interference.

Performance and Signal Integrity

Shielded cables are superior in terms of signal integrity. The shield provides a physical barrier that prevents external electromagnetic fields from corrupting the signal. This makes shielded cables ideal for high-speed data transmission and sensitive electronic equipment, where even minor interference can lead to significant problems.

Unshielded cables, on the other hand, are more prone to signal degradation when exposed to interference. This is especially true in environments with high EMI or RFI. While unshielded cables may perform adequately in low-interference environments or for short-distance connections, they can cause issues in more complex systems.

Cost Considerations

When it comes to cost, unshielded cables are generally more affordable than shielded cables. The additional protective layer in shielded cables requires more materials and manufacturing processes, which can increase the price. Therefore, if budget is a primary concern and interference is not an issue, unshielded cables might be the more cost-effective option.

On the other hand, if you need reliable performance in environments with high levels of electromagnetic interference, the extra cost of shielded cables may be justified. The investment in a shielded cable ensures that your equipment operates efficiently and reliably, avoiding costly disruptions or data loss due to interference.

Applications of Shielded and Unshielded Cables

Shielded cables are typically used in industries where electromagnetic interference is a concern. These include telecommunications, computer networking, industrial automation, and medical equipment. Shielded cables are also used in environments with large machinery or electrical systems that could emit interference, such as factories and power plants.

Unshielded cables are better suited for simple, short-distance applications. These can include home network setups, basic power distribution, and other general wiring needs. Unshielded cables are also often used in low-interference environments where the risk of signal degradation is minimal.

Questions and Answers

Q: Are shielded cables always better than unshielded cables?

A: Not necessarily. Shielded cables offer better protection against interference, but they come at a higher cost. If your application does not involve sensitive equipment or environments with high EMI, unshielded cables can be a more cost-effective solution.

Q: Can unshielded cables be used in outdoor settings?

A: While unshielded cables can be used outdoors, they may not perform well in environments with high interference or extreme weather conditions. For outdoor applications with potential interference, shielded cables are often recommended.

Q: How do I know if I need shielded cables?

A: If your equipment is sensitive to electromagnetic interference or if you are working in an environment with heavy machinery, electrical devices, or radio signals, shielded cables are a better choice. However, for simple and short-distance connections, unshielded cables may suffice.

Conclusion: Choosing the Right Cable for Your Needs

In conclusion, the choice between shielded and unshielded cables ultimately depends on your specific requirements, including the environment, application, and budget. Shielded cables provide enhanced protection and performance, making them ideal for high-speed data transmission and sensitive equipment in high-interference areas. Unshielded cables, while more affordable, may not be suitable for environments where interference is a concern.
