What is the structure of armored cable?

September 01, 2024

Share:

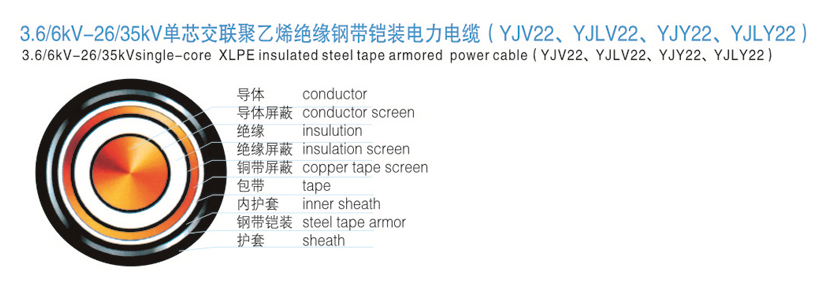

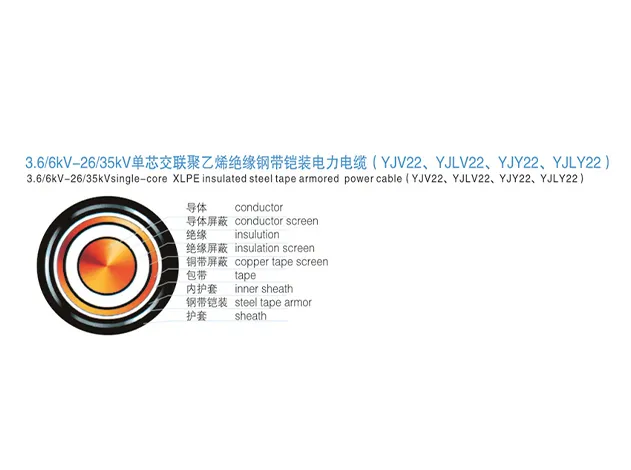

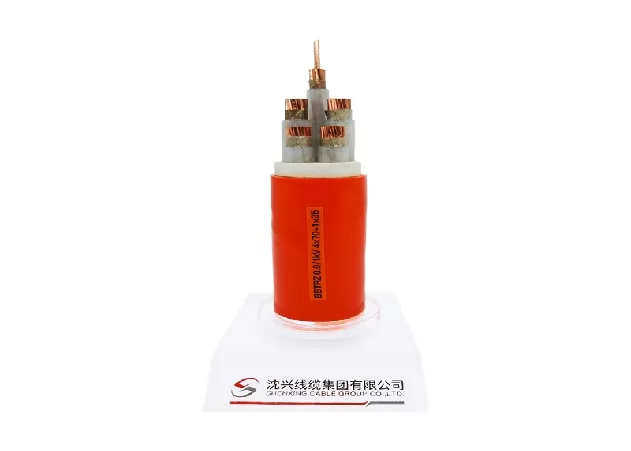

Armored cable usually includes the following main parts from the inside to the outside:


Conductor: the core part that conducts current.

Insulation layer: isolates the conductor from the outside world to ensure electrical performance.

Shielding layer: reduces electromagnetic interference and provides a smooth transition between the conductor and the insulation layer.

Armor layer: protects the internal structure from mechanical damage.

Outer sheath: prevents the armor layer from being corroded and provides additional physical protection.


Minimum bending radius

The minimum bending radius of the cable should be at least:

Three-core oil-immersed insulated cable: 15 times.

Single-core oil-immersed insulated cable: 25 times.

Rubber and plastic insulated cable: 10 times.


Voltage level classification

According to the voltage level classification, cables can be divided into:

Low voltage cable: 35kV and below.

Medium voltage cable: above 35kV to 69kV.

High voltage cable: 110kV to 220kV.

Ultra-high voltage cable: greater than 220kV.


Functions of shielding layer and grounding wire

Shielding layer: Improves electric field distribution and reduces interference.

Grounding wire: Ensures safe grounding and avoids danger when the cable fails.

Function of outer sheath

The outer sheath of the cable consists of an inner lining layer, an armor layer and an outer sheath. Its main function is to provide mechanical protection and prevent erosion.


Difference between armored cable and non-armored cable

Armored cable: has additional mechanical protection, suitable for environments susceptible to mechanical damage.

Non-armored cable: has no additional mechanical protection layer, suitable for environments that are not easily damaged, such as indoors.

The role of armored cable

Provides additional mechanical protection to prevent rodents from biting and ensures safe grounding in the event of cable failure.


Common armored cable models

Power cables: VV22, VV32, etc.

Control cables: KVV22, KVV32, etc.

Communication cables: HYA53, HYA22, etc.


What is the structure of armored cable?cid=14

Latest Social Commitment

Hot Products

Copper Cores, XLPE Insulated, PVC Sheathed, Control Cable

Shenxing KYJV cross-linked power control cable is an advanced integrated intelligent high-voltage cable designed for real-time monitoring of cable operating parameters.

Read More
Copper Cores, XLPE Insulated, PVC Sheathed, Control Cable

Copper Core PVC Insulated Wire

A global BV cable supplier offers a full variety of building cable from our stock and tailored XLPE cables as well.

Read More
Copper Core PVC Insulated Wire

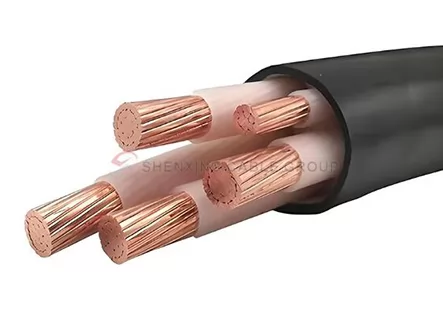

Copper Core PVC Insulated PVC Sheathed Power Cable

BVV/BVVB cable is a high-quality power transmission cable widely used in residential, commercial and industrial environments.

Read More
Copper Core PVC Insulated PVC Sheathed Power Cable

RVB-Copper Core Flat Sheathless Flexible Cable

Welcome to learn about Shenxing Cable Group's RVV/RVB cable (also known as flexible cable), which is a high-performance cable designed for a variety of low-voltage electrical applications. The cable consists of multiple copper conductors and a PVC outer sheath and is widely used in low-voltage electrical systems.

Read More
RVB-Copper Core Flat Sheathless Flexible Cable

Copper Core PVC Insulated Connecting Soft Wire and Cable

Welcome to learn about RV cables from Shenxing Cable Group. This high-quality cable is designed for low-voltage electrical applications. By using high-quality materials and exquisite manufacturing technology, RV cables ensure that you enjoy reliable power supply and efficient power transmission in multiple fields, providing you with ideal solutions.

Read More
Copper Core PVC Insulated Connecting Soft Wire and Cable

RVV Cable

RVV cable is suitable for a variety of application scenarios, including home power wiring, industrial equipment connections, office electrical systems, etc. Whether it is used for power transmission, electrical equipment connection, or use in harsh environments, RVV cables can provide stable, efficient, and safe power support.

Read More
RVV Cable | Shenxing Cable

Copper Conductor, PVC Insulated and Sheathed, Steel-tape Armoured Control Cable

RVS twisted pair flexible cable provided by Shenxing Cable Group is a 300/500V voltage level cable consisting of two insulated conductors twisted around each other. We produce many types of twisted pair cables in strict accordance with the Chinese national standard GB/T 8734.3. RVS twisted pair shielded cable consists of two independent insulated copper conductors that are twisted around each other and arranged in parallel.

Read More
Copper Conductor, PVC Insulated and Sheathed, Steel-tape Armoured Control Cable

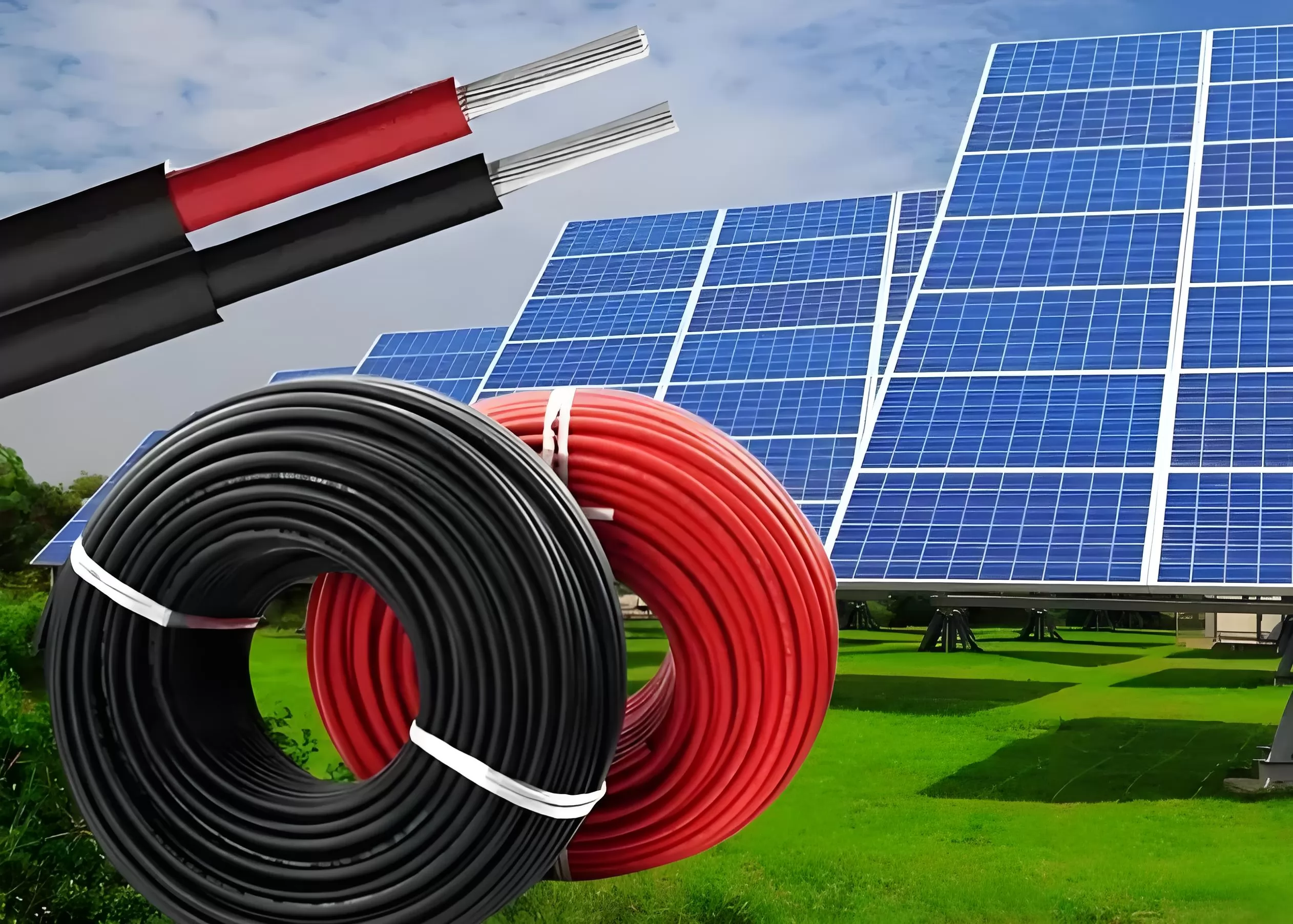

TÜV Solar PV Cable TÜV-H1Z2Z2-K

The SHENXING solar PV H1Z2Z2-K cable, which is TÜV certified according to EN 50618 and AENOR, is suitable for both fixed and mobile solar installations (solar farms, rooftop solar installations and floating plants). It is a highly flexible cable compatible with all major connectors and specially designed for the connection of photovoltaic panels. This versatile single-conductor cable is designed to meet the varying needs of the solar industry. Suitable for wet, damp and humid locations.

Read More
TÜV Solar PV Cable TÜV-H1Z2Z2-K

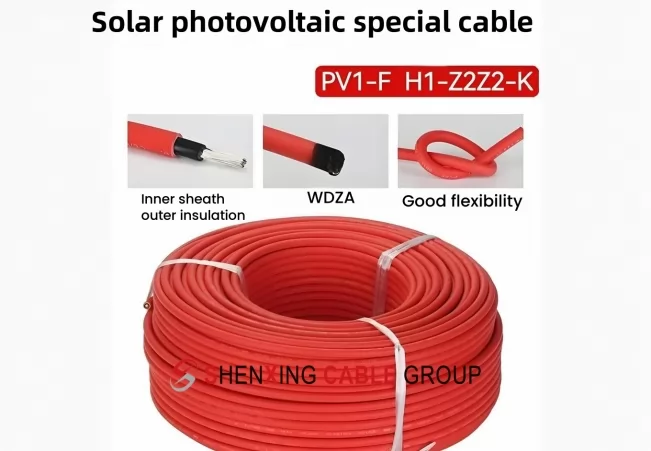

PV1-F Solar Cable
