You Need to Know About the Aerial Bundled Cables

Aerial Bundled Cable (ABC Cable) is gaining increasing attention as an innovative solution. It not only boasts unique design advantages but also demonstrates exceptional performance in various applications. In this article, we will explore the features, benefits, types, and selection criteria for aerial bundled cable.

What is Aerial Bundled Cable?

Aerial Bundled Cable, also known as ABC cable, is a type of cable specifically designed for overhead power distribution. ABC cable consists of multiple conductors tightly bundled together, typically used for overhead power transmission. This cable design aims to reduce the risk of electrical leakage during power delivery, enhancing safety and reliability.

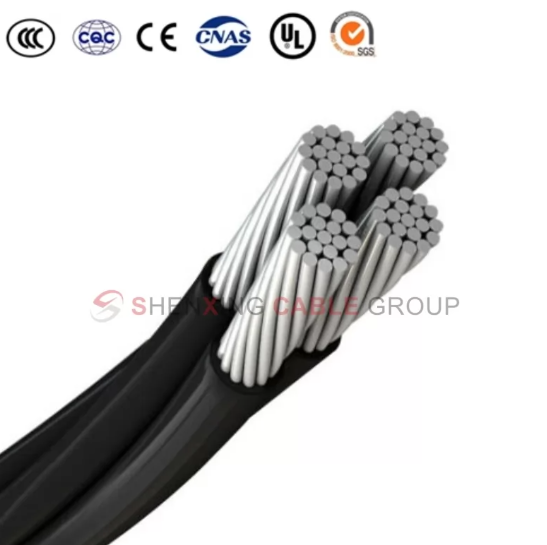

Aerial Bundled Cables

Structure and Composition of Aerial Bundled Cable

• Core Conductors: ABC cables typically consist of multiple insulated and shielded single cables bundled together.

• Suspension Wire: These single cables are grouped around a suspension wire, which serves as a jumper wire in a distribution system.

• Insulation and Shielding: Each individual cable within the bundle is insulated and shielded to ensure electrical safety and performance.

Features and Benefits of Aerial Bundled Cable

• High Safety: With its insulated layer covering the conductors, ABC significantly reduces the risk of electric shock, making it particularly suitable for densely populated urban areas and rural settings.

• Weather Resistance: Aerial Bundled Cable effectively withstands the effects of severe weather such as strong winds and ice, minimizing power outages caused by natural disasters.

• Space-Saving: Compared to traditional overhead cables, ABC occupies less space, making it ideal for installation in confined or complex environments.

• Lower Maintenance Costs: Due to its excellent weather resistance, Aerial Bundled Cable requires less maintenance, resulting in reduced operational and maintenance expenses over time.

Types and Specifications of Aerial Bundled Cable

Aerial bundled cables come in various types, typically categorized by their construction and materials:

• Insulated Aluminum Conductors: Commonly used in overhead power lines, these cables have aluminum conductors with a layer of insulation, providing good conductivity and resistance to corrosion.

• Insulated Copper Conductors: These cables use copper as the conductor material, offering higher conductivity. They are often used in areas where performance and reliability are critical.

• Single-Core and Multi-Core Cables: Depending on the application, ABC cable can be designed as single-core cables for lower voltage or multi-core cables for higher voltage transmission.

• Low Voltage and Medium Voltage Cables: ABC cable can be designed for low voltage distribution networks or medium voltage applications, depending on the needs of the power supply system.

Application of Aerial Bundled Cable

Aerial bundled cable is widely used in the following areas:

• Urban Power Distribution: In urban environments, ABC significantly lowers safety hazards associated with power transmission, providing stable electricity supply to residents.

• Rural Electrification: In rural areas, aerial bundled cable helps improve power supply, enhancing the quality of life for local communities.

• Temporary Power Supply: Aerial Bundled Cable can be quickly deployed at construction sites or temporary events to meet short-term power needs.

How to Choose Aerial Bundled Cable?

When selecting Aerial Bundled Cable, consider the following factors:

• Voltage Rating: Ensure the cable’s voltage rating matches the requirements of your power distribution system, whether it’s low or medium voltage.

• Current Carrying Capacity: Calculate the expected load and select a cable with an appropriate current-carrying capacity to prevent overheating and ensure efficient operation.

• Environmental Conditions: Assess the local environmental conditions, such as temperature, humidity, and exposure to chemicals, to choose the right insulation and materials.

• Installation Space: Consider the installation area and select a cable type that fits the available space and supports the intended application.

• Regulatory Compliance: Ensure that the selected cable meets local and international standards for safety and performance.

Conclusion

Aerial Bundled Cable is a versatile and reliable solution for overhead power distribution and telecommunication networks. Its bundled design maximizes transmission capacity, offers all-weather durability, and simplifies installation and maintenance processes.
