BS 215 standard-ACSR

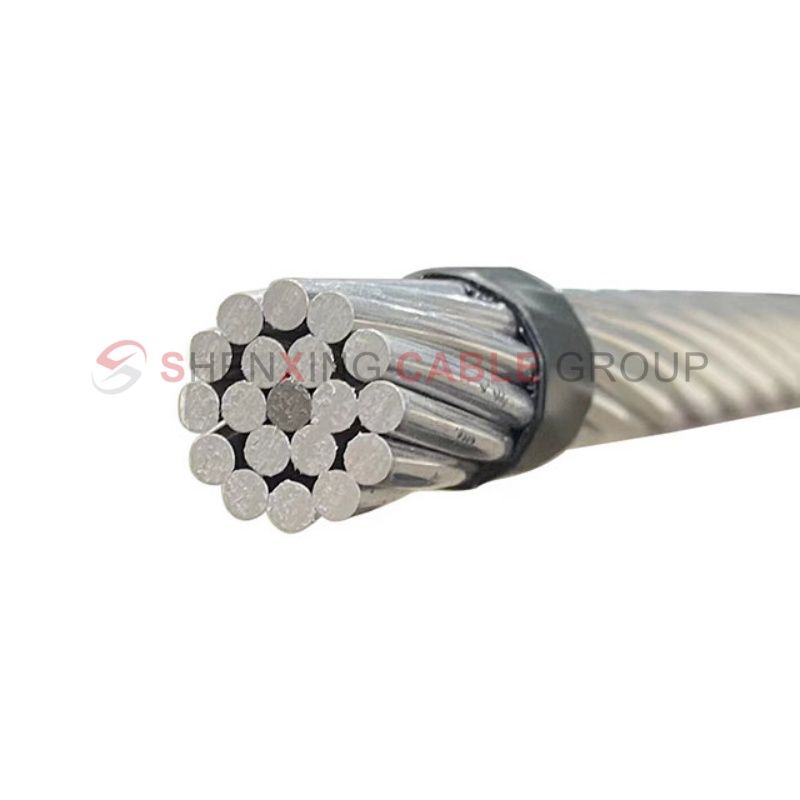

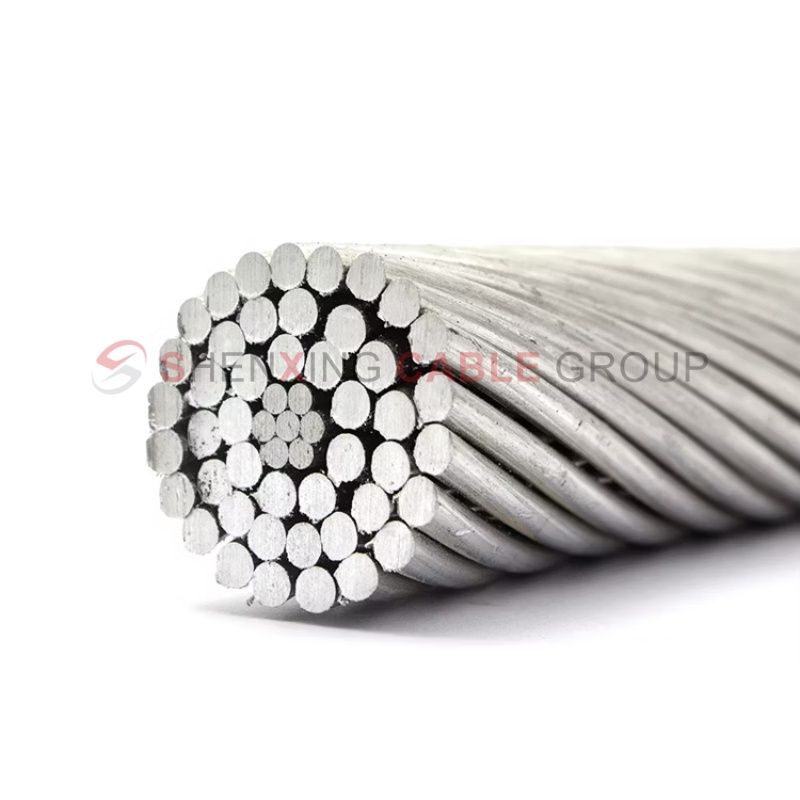

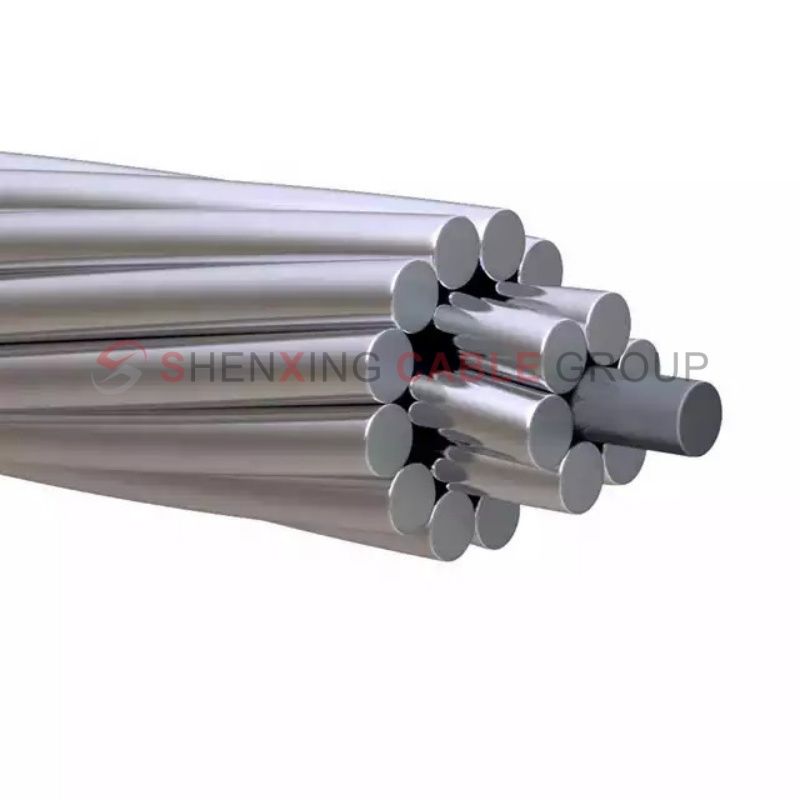

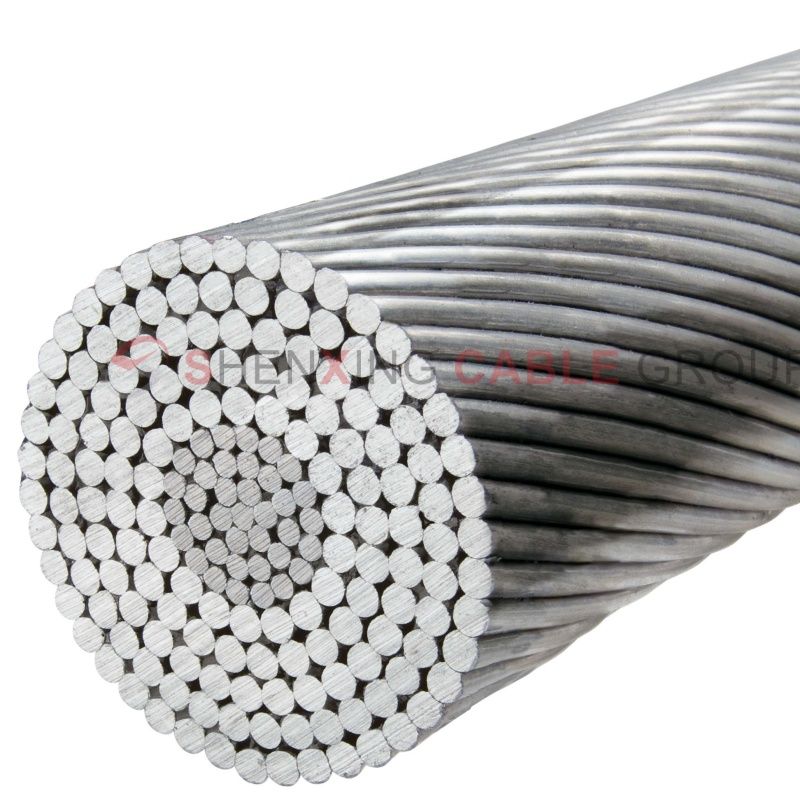

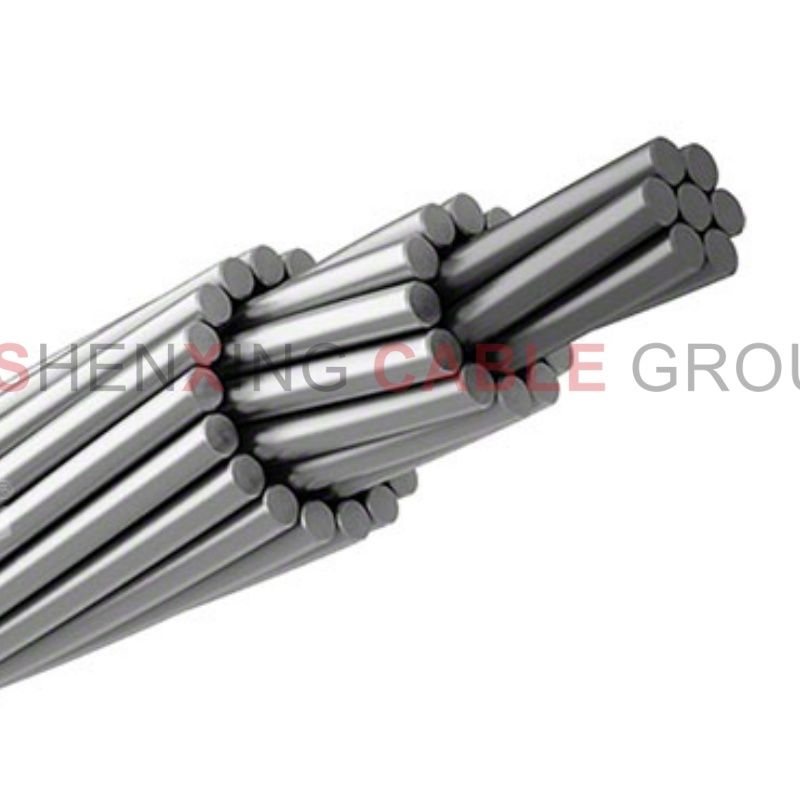

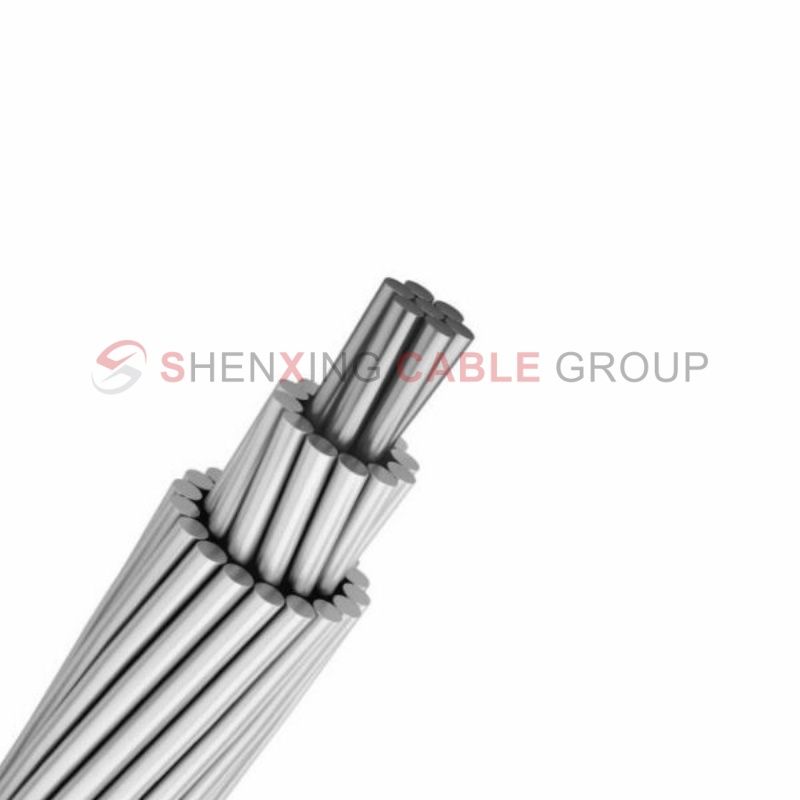

ACSR (aluminum steel core stranded conductor) products produced by Shenxing Cable Group are manufactured strictly in accordance with the **British National Standard BS 215 Part 2 (BS 215-2)**. This type of product is widely used in high-voltage transmission and distribution systems in the UK and Commonwealth countries.
In the UK market, ACSR conductors are often named after animals (such as FOX, RABBIT, DOG, ZEBRA, etc.), which is a conventional naming method in the power industry. Shenxing Cable's ACSR conductors fully match these naming rules, making it easier for British customers to find, select and purchase.
Share:
Comply with international standards：
IEC 61089: General technical requirements for bare conductors for overhead lines
Complies with CE certification requirements and is sold in the European market
Technical Data
| Code Name | Nominal aluminium area（mm²） | Equivalent copper area （mm²） | Stranding and wire diameter（mm） | Overall diameter （mm） | Total area（mm²） | Weights（kg/km） | Calculated breaking load（kN） | Maximum dc resistance at 20°C（Ω /km） | |||||
| / | / | / | Aluminium | Steel | / | Aluminium | Steel | Total | Aluminium | Steel | Total | / | / |
| MOLE | 10 | 6.5 | 6/1.50 | 1/1.50 | 4.5 | 10.6 | 1.77 | 12.4 | 29 | 14 | 43 | 4.1 | 2.706 |
| SQUIRREL | 20 | 12.9 | 6/2.11 | 1/2.11 | 6.33 | 20.98 | 3.49 | 24.5 | 58 | 27 | 85 | 7.9 | 1.37 |
| GOPHER | 25 | 16.1 | 6/2.36 | 1/2.36 | 7.08 | 26.25 | 4.37 | 30.6 | 72 | 34 | 106 | 9.6 | 1.093 |
| WEASEL | 30 | 19.4 | 6/2.59 | 1/2.59 | 7.77 | 31.61 | 5.27 | 36.9 | 87 | 41 | 128 | 11.4 | 0.9077 |
| FOX | 35 | 22.6 | 6/2.79 | 1/2.79 | 8.37 | 36.68 | 6.11 | 42.8 | 101 | 48 | 149 | 13.2 | 0.7822 |
| FERRET | 40 | 25.8 | 6/3.00 | 1/3.00 | 9 | 42.41 | 7.07 | 49.5 | 117 | 55 | 172 | 15.2 | 0.6766 |
| RABBIT | 50 | 32.3 | 6/3.35 | 1/3.35 | 10.05 | 52.88 | 8.81 | 61.7 | 145 | 69 | 214 | 18.4 | 0.5426 |
| MINK | 60 | 38.7 | 6/3.66 | 1/3.66 | 10.98 | 63.13 | 10.52 | 73.7 | 173 | 82 | 255 | 21.9 | 0.4545 |
| SKUNK | 60 | 38.7 | 12/2.59 | 7/2.59 | 12.95 | 63.22 | 36.88 | 100.1 | 175 | 290 | 465 | 52.9 | 0.4568 |
| BEAVER | 70 | 45.2 | 6/3.99 | 1/3.99 | 11.97 | 75.02 | 12.5 | 87.5 | 205 | 97 | 302 | 25.8 | 0.3825 |
| HORSE | 70 | 45.2 | 12/2.79 | 7/2.79 | 13.95 | 73.36 | 42.8 | 116.2 | 203 | 335 | 538 | 61.2 | 0.3936 |
| RACOON | 75 | 48.4 | 6/4.10 | 1/4.10 | 12.3 | 79.21 | 13.2 | 92.4 | 217 | 103 | 320 | 27.2 | 0.3623 |
| OTTER | 80 | 51.6 | 6/4.22 | 1/4.22 | 12.66 | 83.92 | 13.99 | 97.9 | 230 | 109 | 339 | 28.8 | 0.3419 |
| CAT | 90 | 58.1 | 6/4.50 | 1/4.50 | 13.5 | 95.43 | 15.9 | 111.3 | 262 | 124 | 386 | 32.7 | 0.3006 |
| HARE | 100 | 64.5 | 6/4.72 | 1/4.72 | 14.16 | 105 | 17.5 | 122.5 | 288 | 137 | 425 | 35.9 | 0.2733 |
| DOG | 100 | 64.5 | 6/4.72 | 7/1.57 | 14.15 | 105 | 13.55 | 118.6 | 288 | 106 | 394 | 32.7 | 0.2733 |
| HYENA | 100 | 64.5 | 7/4.39 | 7/1.93 | 14.57 | 106 | 20.48 | 126.5 | 290 | 160 | 450 | 41 | 0.2702 |
| LEOPARD | 125 | 80.7 | 6/5.28 | 7/1.75 | 15.81 | 131.4 | 16.84 | 148.5 | 360 | 132 | 492 | 40.8 | 0.2185 |
| COYOTE | 125 | 80.7 | 26/2.54 | 7/1.91 | 15.89 | 131.7 | 20.06 | 151.8 | 365 | 157 | 522 | 46.3 | 0.2191 |
| COUGAR | 125 | 80.7 | 18/3.05 | 1/3.05 | 15.25 | 131.5 | 7.31 | 138.8 | 362 | 57 | 419 | 30.1 | 0.219 |
| TIGER | 125 | 80.7 | 30/2.36 | 7/2.36 | 16.52 | 131.2 | 30.62 | 161.8 | 362 | 240 | 602 | 58 | 0.2202 |
| WOLF | 150 | 96.8 | 30/2.59 | 7/2.59 | 18.13 | 158.1 | 36.88 | 194.9 | 437 | 289 | 726 | 69.2 | 0.1828 |
| DINGO | 150 | 97.9 | 18/3.35 | 1/3.35 | 16.75 | 158.7 | 8.81 | 167.5 | 437 | 69 | 506 | 35.7 | 0.1815 |
| LYNX | 175 | 113 | 30/2.79 | 7/2.79 | 19.53 | 183.4 | 42.79 | 226.2 | 507 | 335 | 842 | 79.8 | 0.1576 |
| CARACAL | 175 | 113.7 | 18/3.61 | 1/3.61 | 18.05 | 184.2 | 10.24 | 194.5 | 507 | 81 | 587 | 41.1 | 0.1563 |
| PANTHER | 200 | 129 | 30/3.00 | 7/3.00 | 21 | 212.1 | 49.48 | 261.6 | 586 | 388 | 974 | 92.3 | 0.1363 |
| LION | 225 | 145 | 30/3.18 | 7/3.18 | 22.26 | 238.3 | 55.6 | 293.9 | 659 | 436 | 1095 | 100.5 | 0.1212 |
| BEAR | 250 | 161 | 30/3.35 | 7/3.35 | 23.45 | 264.4 | 61.7 | 326.1 | 730 | 483 | 1213 | 111.2 | 0.1093 |
| GOAT | 300 | 194 | 30/3.71 | 7/3.71 | 25.97 | 324.3 | 75.67 | 400 | 896 | 593 | 1489 | 135.8 | 0.0891 |
| SHEEP | 350 | 226 | 30/3.99 | 7/3.99 | 27.93 | 375.1 | 87.53 | 462.6 | 1034 | 684 | 1718 | 156.3 | 0.077 |
| ANTELOPE | 350 | 226 | 54/2.97 | 7/2.97 | 26.73 | 374.1 | 48.49 | 422.6 | 1032 | 379 | 1411 | 118.5 | 0.0773 |
| BISON | 350 | 226 | 54/3.00 | 7/3.00 | 27 | 381.7 | 49.48 | 431.2 | 1056 | 388 | 1444 | 120.9 | 0.0757 |
| JAGUAR | 200 | 130 | 18/3.86 | 1/3.86 | 19.3 | 210.6 | 11.7 | 222.3 | 580 | 91 | 671 | 46.6 | 0.1367 |
| DEER | 400 | 258 | 30/4.27 | 7/4.27 | 29.89 | 429.6 | 100.2 | 529.8 | 1186 | 785 | 1971 | 178.5 | 0.0673 |
| ZEBRA | 400 | 258 | 54/3.18 | 7/3.18 | 28.62 | 428.9 | 55.6 | 484.5 | 1186 | 435 | 1621 | 131.9 | 0.0674 |
| ELK | 450 | 290 | 30/4.50 | 7/4.50 | 31.5 | 477.1 | 111.3 | 588.4 | I318 | 872 | 2190 | 198.3 | 0.0606 |
| CAMEL | 450 | 290 | 54/3.35 | 7/3.35 | 30.15 | 475.9 | 61.7 | 537.6 | I314 | 483 | 1797 | 145.9 | 0.0607 |
| MOOSE | 500 | 323 | 54/3.53 | 7/3.53 | 31.77 | 528.5 | 68.51 | 597 | 1462 | 537 | 1999 | 161 | 0.0547 |
Expand all
Only some product parameters are displayed. For more product information, please contact us.
The above parameters are for reference only.

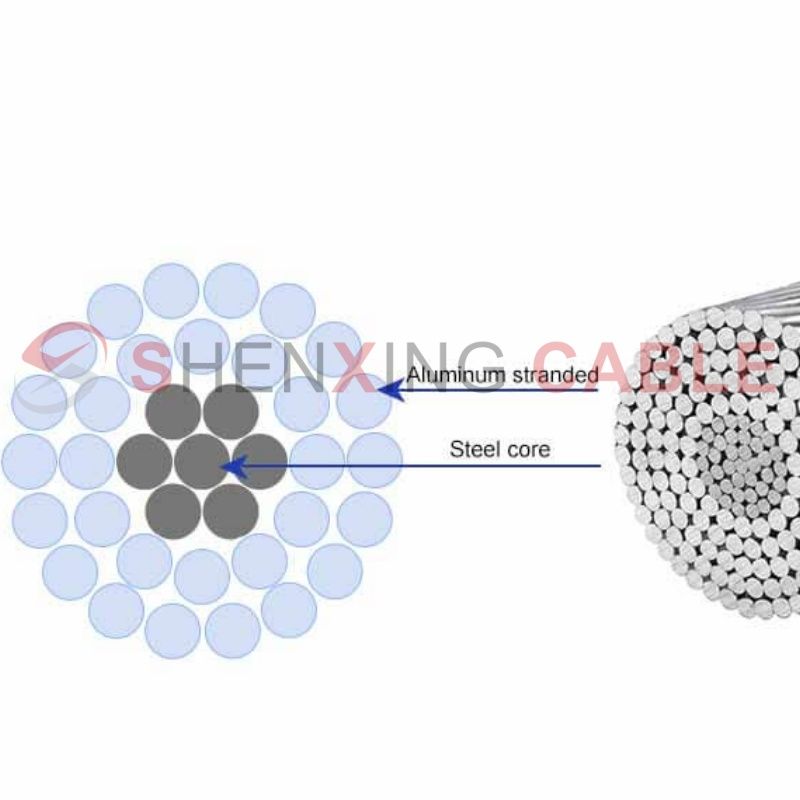

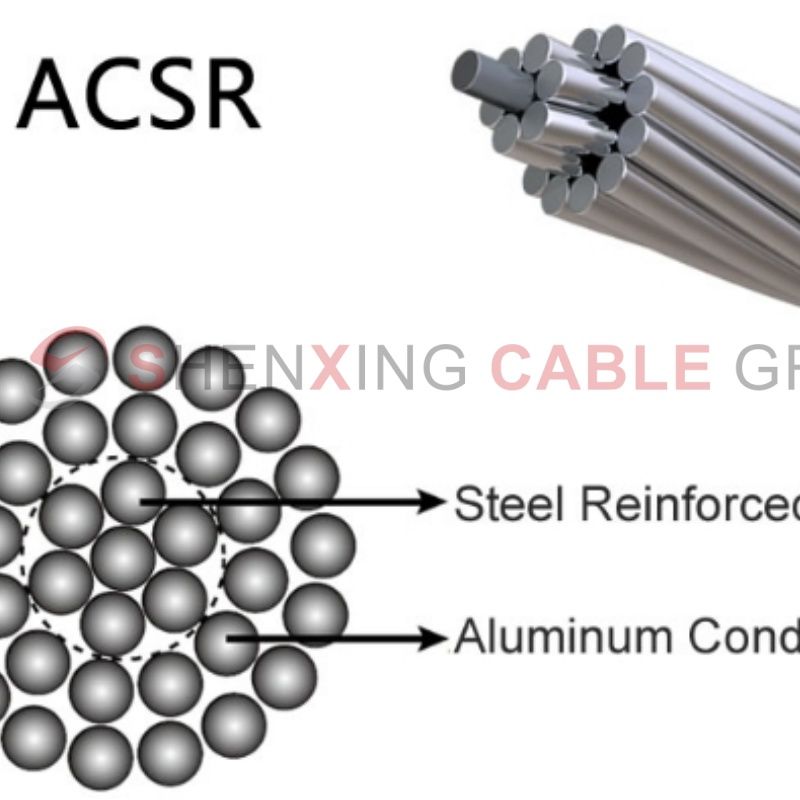

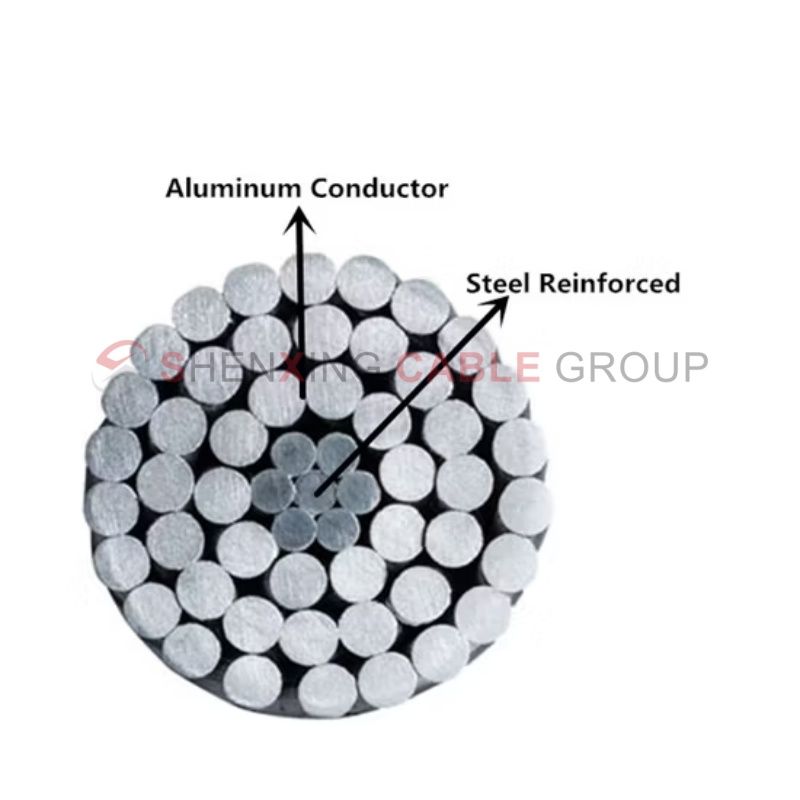

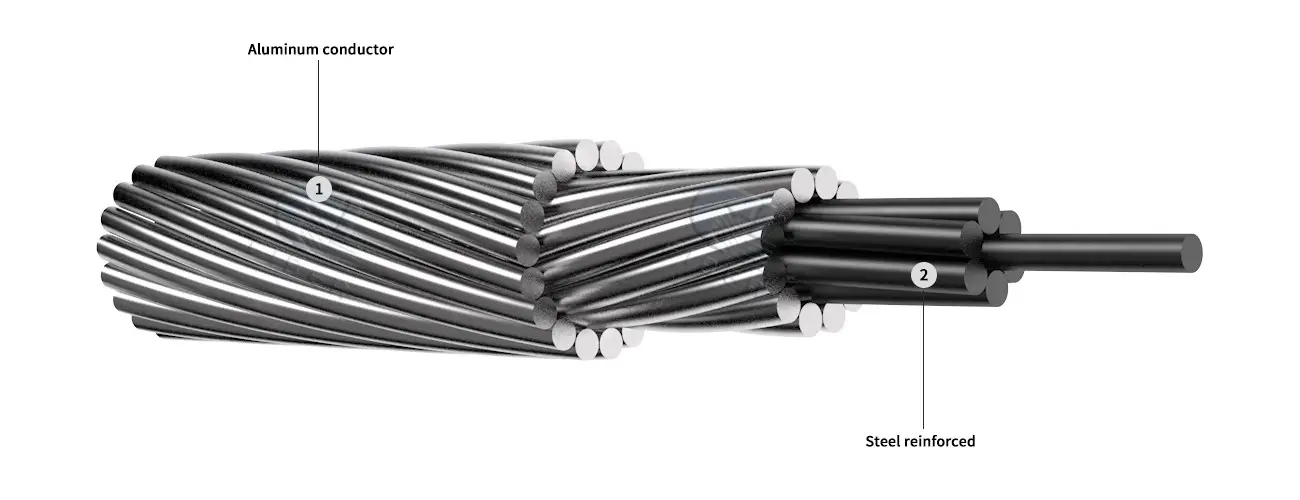

Cable Structure
