DIN EN 50182 Standard-ACSR

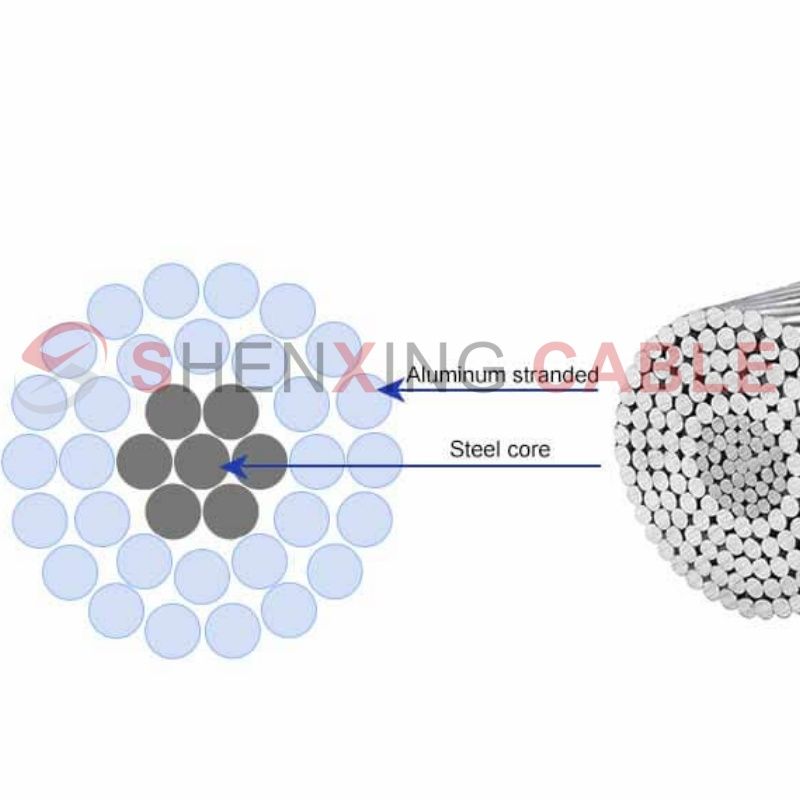

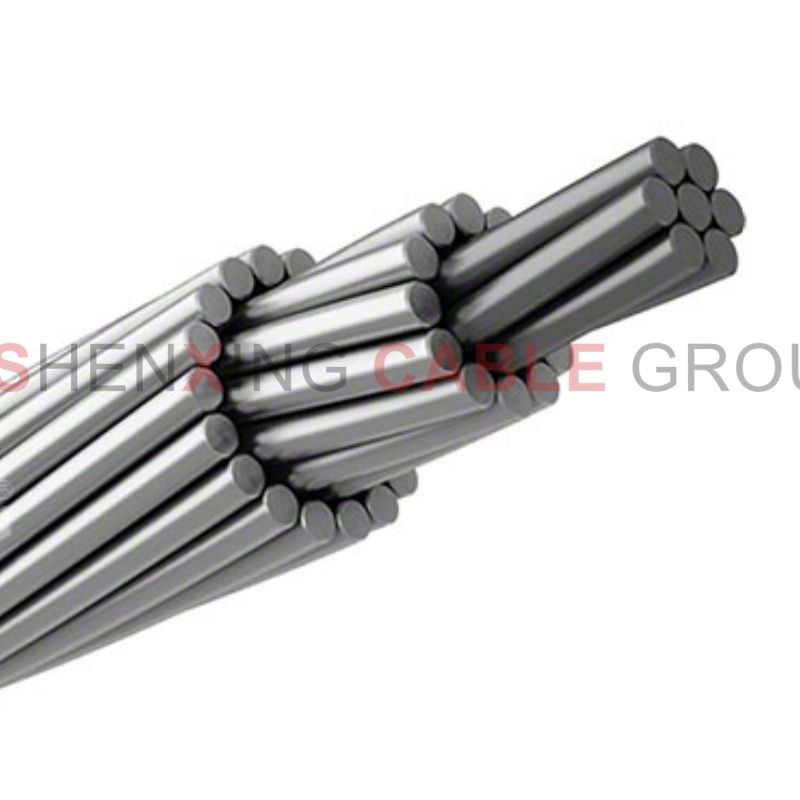

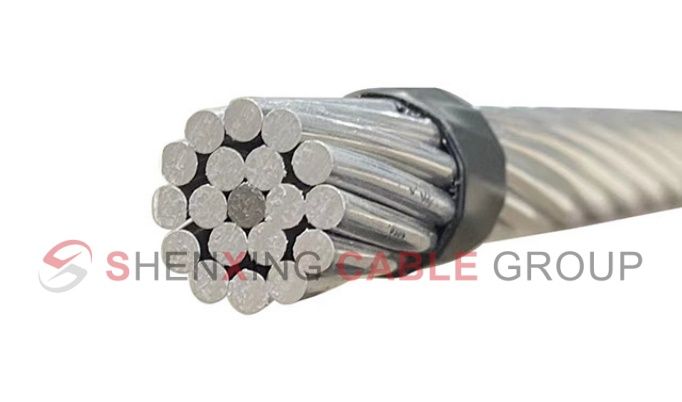

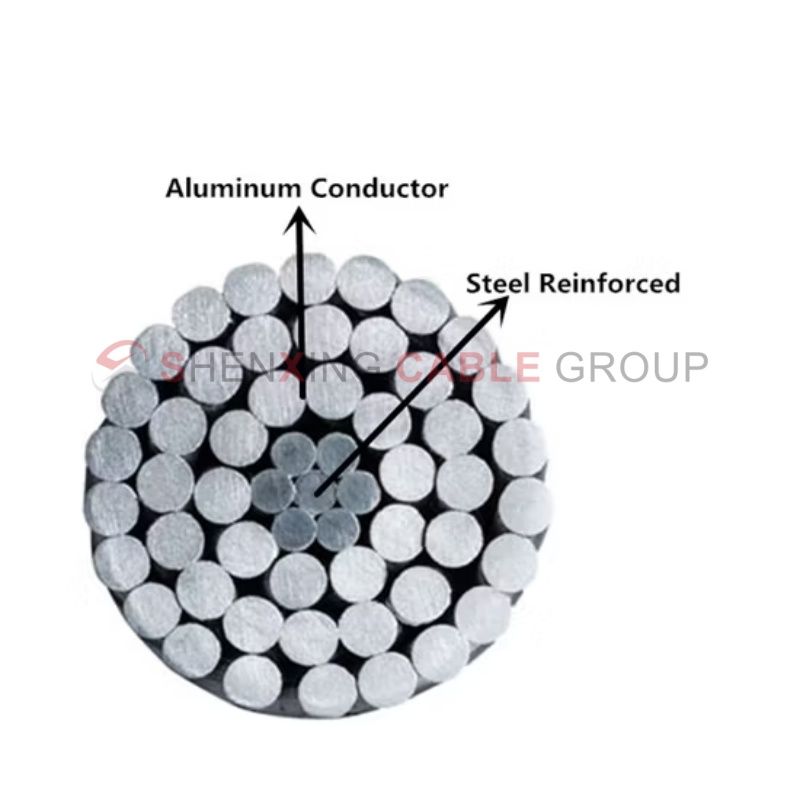

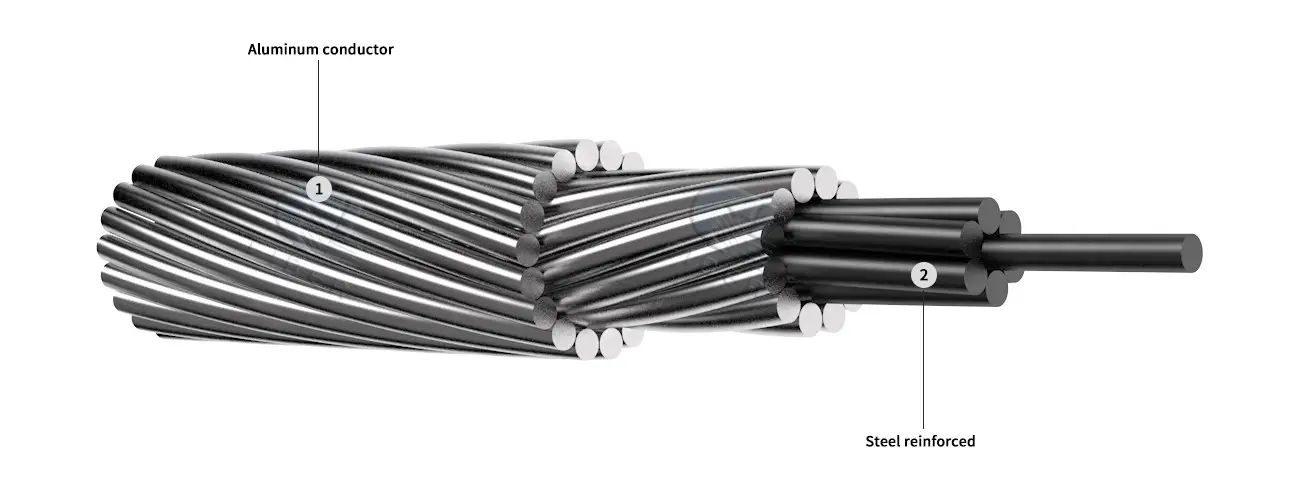

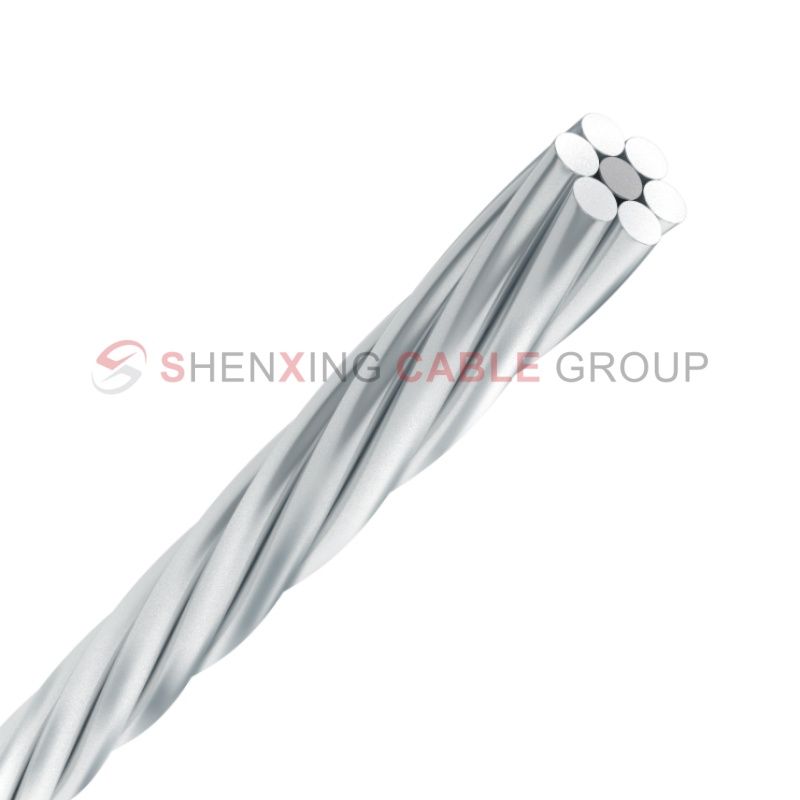

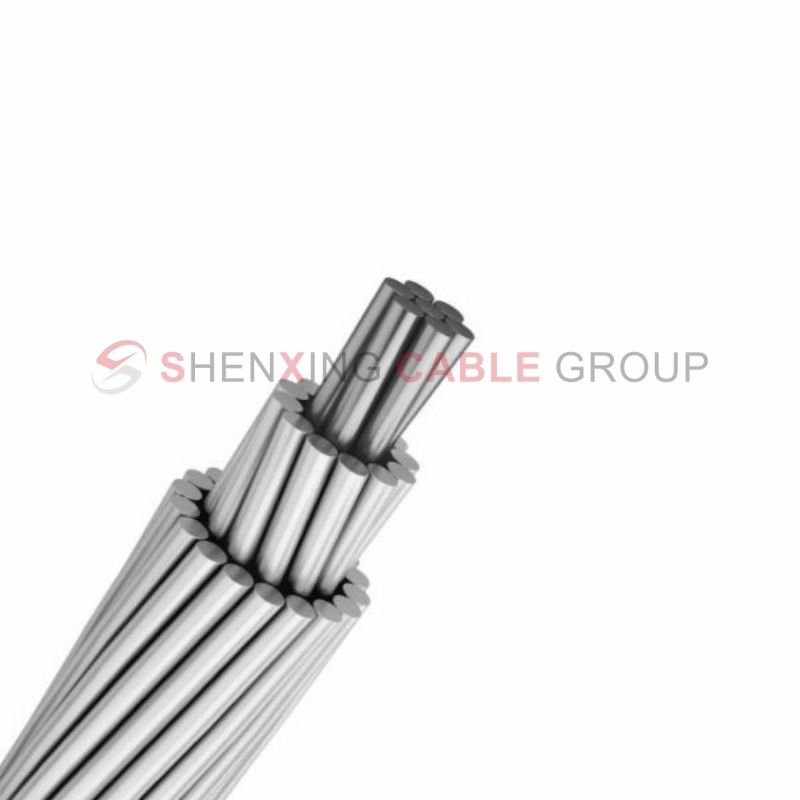

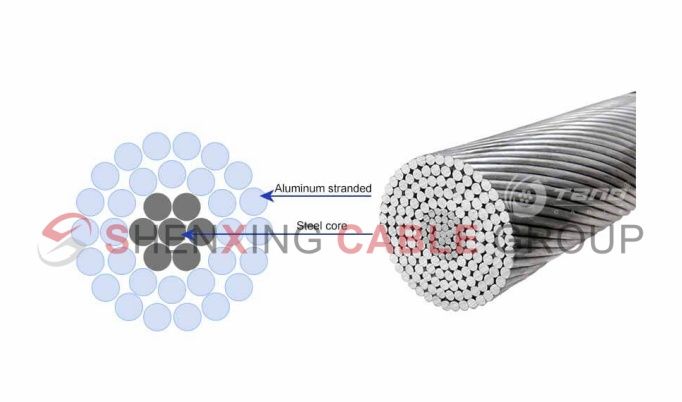

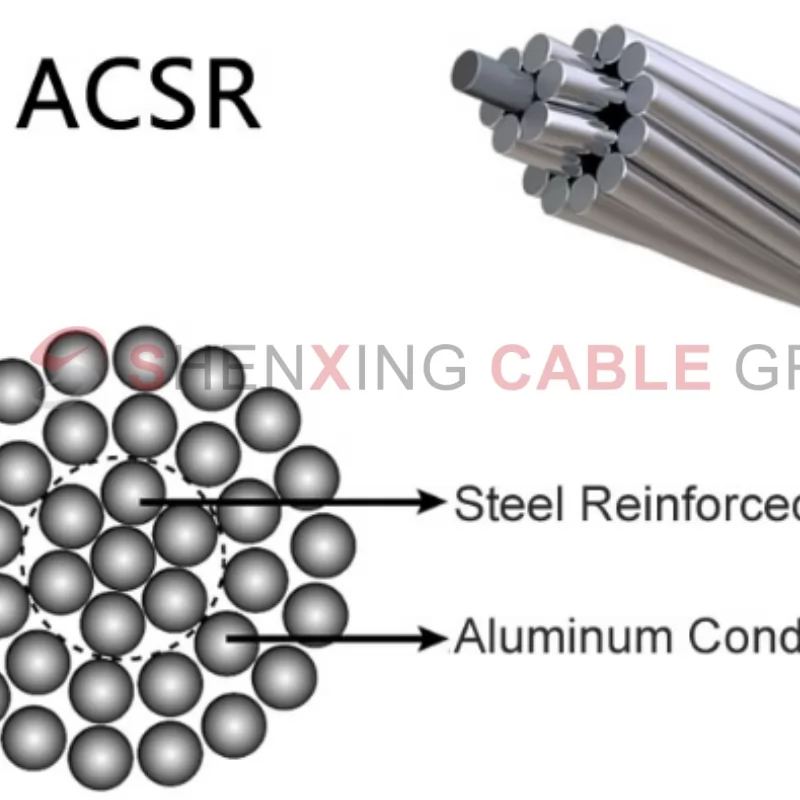

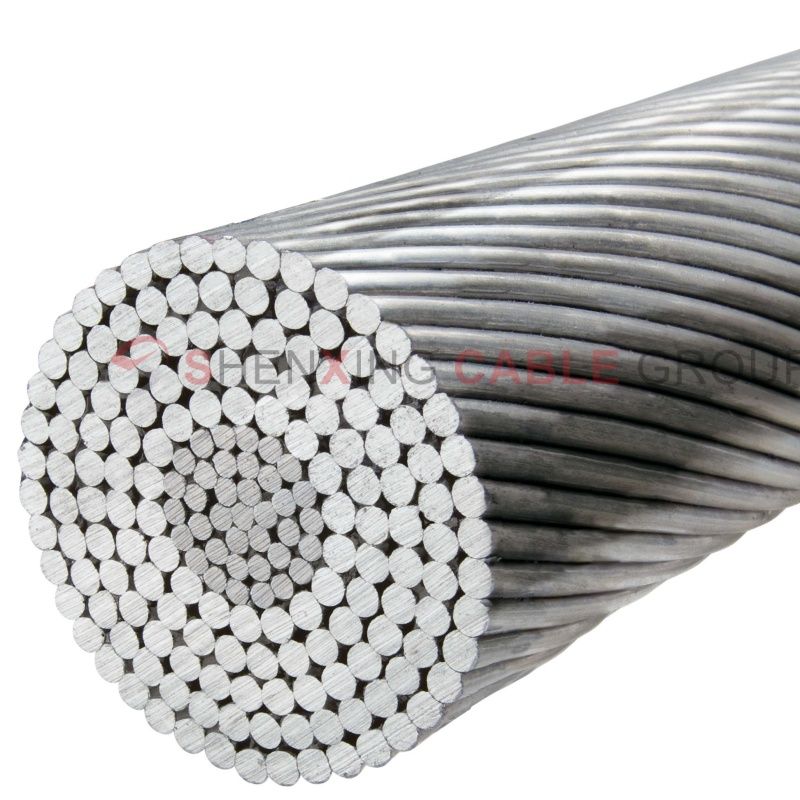

The Aluminum Conductor Steel Reinforced (ACSR) produced by Shenxing Cable Group is designed to meet the needs of the German and European markets for high-voltage transmission lines. This product complies with the DIN EN 50182 (equivalent to IEC 61089) standard, has excellent conductivity and mechanical strength, and is particularly suitable for overhead transmission systems in long spans, high tension, and complex environments.
Share:
Comply with international standards:
DIN EN 50182，ASTMB232, IEC 61089, BS EN 50182
Core application scenarios:
High-voltage overhead transmission lines (Hochspannungsleitung)
Grid-connected power transmission of wind farms and photovoltaic power plants
National grid upgrade project (Energiewende program)
Railway electrification power supply system (DB project)
Mountainous or long-distance power transmission lines
Advantages:
Complies with German and EU standards: DIN EN 50182 / IEC 61089
High mechanical tension: using high-quality galvanized steel core (Stahlkern)
Good electrical conductivity: high-purity hard aluminum stranded wire
Strong corrosion resistance and weather resistance: suitable for various harsh climate conditions
Various structures available: aluminum-steel ratio and wire diameter can be customized
Technical Data
| Nominal(mm²) | Area | Equivalent copper area （mm²） | Stranding and wire diameter（mm） | Overall diameter （mm） | Weights（kg/km） | Calculated breaking load （kN） | Maximum dc resistance at 20°C （Ω /km） | ||||||
| Aluminium | Steel | Aluminium | Steel | Total | / | Aluminium | Steel | / | Aluminium | Steel | Total | / | / |
| 16 | 2.5 | 15.3 | 2.6 | 17.9 | 9.3 | 6/1.80 | 1/1.80 | 5.4 | 41.8 | 19.9 | 61.7 | 5.81 | 1.8793 |
| 25 | 4 | 23.8 | 4 | 27.8 | 14.5 | 6/2.25 | 1/2.25 | 6.8 | 65.4 | 31 | 96.4 | 9.02 | 1.2028 |
| 35 | 6 | 34.3 | 5.7 | 40 | 20.9 | 6/2.70 | 1/2.70 | 8.1 | 94.2 | 44.7 | 138.9 | 12.7 | 0.8353 |
| 44 | 32 | 44 | 31.7 | 75.7 | 26.8 | 14/2.00 | 7/2.40 | 11.2 | 121.4 | 248.2 | 369.6 | 45.46 | 0.6573 |
| 50 | 8 | 48.3 | 8 | 56.3 | 29.5 | 6/3.20 | 1/3.20 | 9.6 | 132.2 | 62.7 | 194.9 | 17.18 | 0.5946 |
| 50 | 30 | 51.2 | 29.8 | 81 | 31.2 | 12/2.33 | 7/2.33 | 11.7 | 141.1 | 233.9 | 375 | 44.28 | 0.5644 |
| 70 | 12 | 69.9 | 11.4 | 81.3 | 42.6 | 26/ I .85 | 7/1.44 | 11.7 | 192.8 | 89.4 | 282.2 | 26.31 | 0.41 30 |
| 95 | 15 | 94.4 | 15.3 | 109.7 | 57.6 | 26/2. I 5 | 7/1.67 | 13.6 | 260.3 | 120.1 | 380.4 | 35.17 | 0.3058 |
| 95 | 55 | 96.5 | 56.3 | 152.8 | 58.9 | 12/3.20 | 7/3.20 | 16 | 266.2 | 441.1 | 707.3 | 80.2 | 0.2992 |
| 105 | 75 | 105.7 | 75.5 | 181.5 | 64.5 | 14/3.10 | 19/2.25 | 17.5 | 291.8 | 594 | 885.8 | 106.69 | 0.2376 |
| 120 | 20 | 121.6 | 19.8 | 141.4 | 74.2 | 26/2.44 | 711 .90 | 15.5 | 335.5 | 155.5 | 491 | 44.94 | 0.2374 |
| 120 | 70 | 122 | 71.3 | 193.3 | 74.4 | 12/3.60 | 7/3.60 | 18 | 337 | 558 | 895 | 98.16 | 0.2364 |
| 125 | 30 | 127.9 | 29.8 | 157.7 | 78 | 30/2.33 | 7/2.33 | 16.1 | 353 | 233.9 | 586.9 | 57.86 | 0.2259 |
| 150 | 25 | 148.9 | 24.2 | 173.1 | 90.8 | 26/2.70 | 7/2.10 | 17.1 | 410.6 | 190 | 600.6 | 54.37 | 0.1939 |
| 170 | 40 | 171.8 | 40.1 | 211.9 | 104.8 | 30/2.70 | 712.7 | 18.9 | 474.2 | 314 | 788.2 | 77.01 | 0.1682 |
| 185 | 30 | 183.8 | 29.8 | 213.6 | 112.1 | 26/3.00 | 7/2.33 | 19 | 507 | 233.9 | 740.9 | 66.28 | 0.1571 |
| 210 | 35 | 209.1 | 34.1 | 243.2 | 128 | 26/3.20 | 7/2.49 | 20.3 | 576.6 | 267.1 | 843.7 | 74.94 | 0.138 |
| 210 | 50 | 212.1 | 49.5 | 261.6 | 129 | 30/3.00 | 7/3.00 | 21 | 585.5 | 387.7 | 973.2 | 92.23 | 0.1363 |
| 230 | 30 | 230.9 | 29.8 | 260.7 | 141 | 24/3.50 | 7/2.33 | 21 | 636.5 | 233.9 | 870.4 | 73.09 | 0.1249 |
| 240 | 40 | 243 | 39.5 | 282.5 | 148 | 26/3.45 | 7/2.68 | 21.8 | 670.4 | 309.4 | 979.8 | 86.46 | 0.1188 |
| 265 | 35 | 263.7 | 34.1 | 297.8 | 161 | 24/3.74 | 7/2.49 | 22.4 | 726.9 | 267.1 | 994 | 82.94 | 0.1094 |
| 300 | 50 | 304.3 | 49.5 | 353.7 | 186 | 26/3.86 | 7/3.00 | 24.5 | 839 | 387.7 | 1226.7 | 105.09 | 0.0949 |
| 305 | 40 | 304.6 | 39.5 | 344.1 | 186 | 54/2.68 | 7/2.68 | 24.1 | 841.2 | 309.4 | 1150.6 | 99.3 | 0.0949 |
| 340 | 30 | 339.3 | 29.8 | 369.1 | 207 | 48/3.00 | 7/2.33 | 25 | 936.8 | 233.9 | 1170.7 | 92.56 | 0.0851 |
| 380 | 50 | 382 | 49.5 | 431.5 | 233 | 54/3.00 | 7/3.00 | 27 | 1054.3 | 387.7 | 1442 | 120.91 | 0.0757 |
| 385 | 35 | 386 | 34.1 | 420.1 | 235 | 48/3.20 | 7/2.49 | 26.7 | 1065.4 | 267.1 | 1332.5 | 194.31 | 0.0748 |
| 435 | 55 | 434.3 | 56.3 | 490.6 | 265 | 54/3.20 | 7/3.20 | 28.8 | 1199 | 441.1 | 1631.1 | 136.27 | 0.0666 |
| 450 | 40 | 448.7 | 39.5 | 488.2 | 274 | 48/3.45 | 7/2.68 | 28.7 | 1238.6 | 309.4 | 1548 | 120.19 | 0.0644 |
| 490 | 65 | 490.3 | 63.6 | 553.9 | 299 | 54/3.40 | 7/3.40 | 30.6 | 1353.7 | 498 | 1851.7 | 152.85 | 0.059 |
| 550 | 70 | 550 | 71.3 | 621.3 | 336 | 54/3.60 | 7/3.60 | 32.4 | 1518.3 | 558.3 | 2076.6 | 167.42 | 0.0526 |
| 560 | 50 | 561.7 | 49.5 | 611.2 | 343 | 48/3.86 | 7/3.00 | 32.2 | 1550.2 | 387.7 | 1937.9 | 146.28 | 0.0514 |
| 680 | 85 | 678.6 | 86 | 764.6 | 414 | 54/4.00 | 19/2.40 | 36 | 1874.5 | 675.8 | 2550.3 | 209.99 | 0.0426 |
