ASTM Standard ACSR Conductor

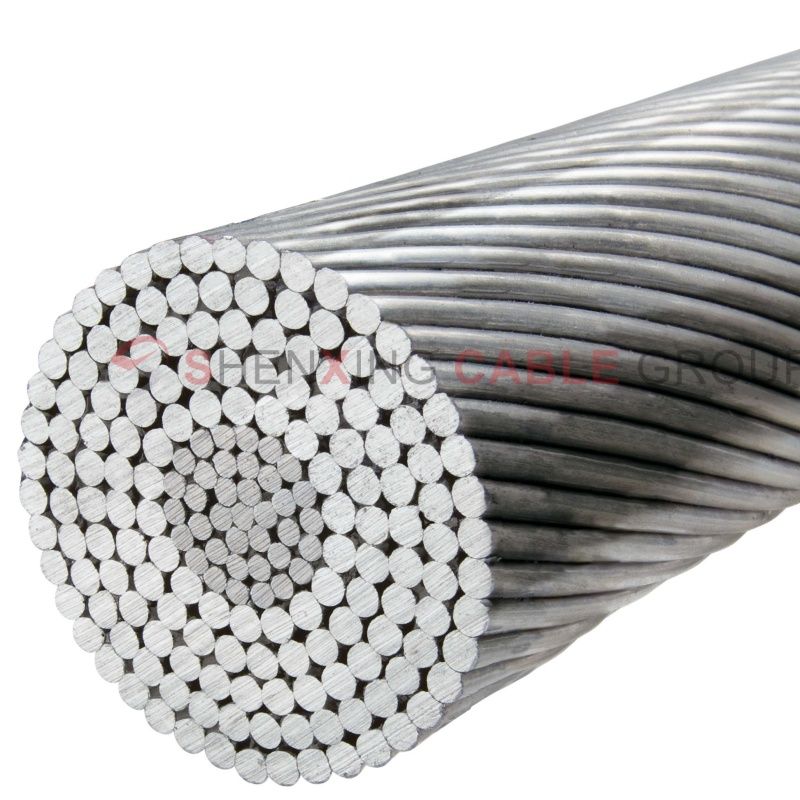

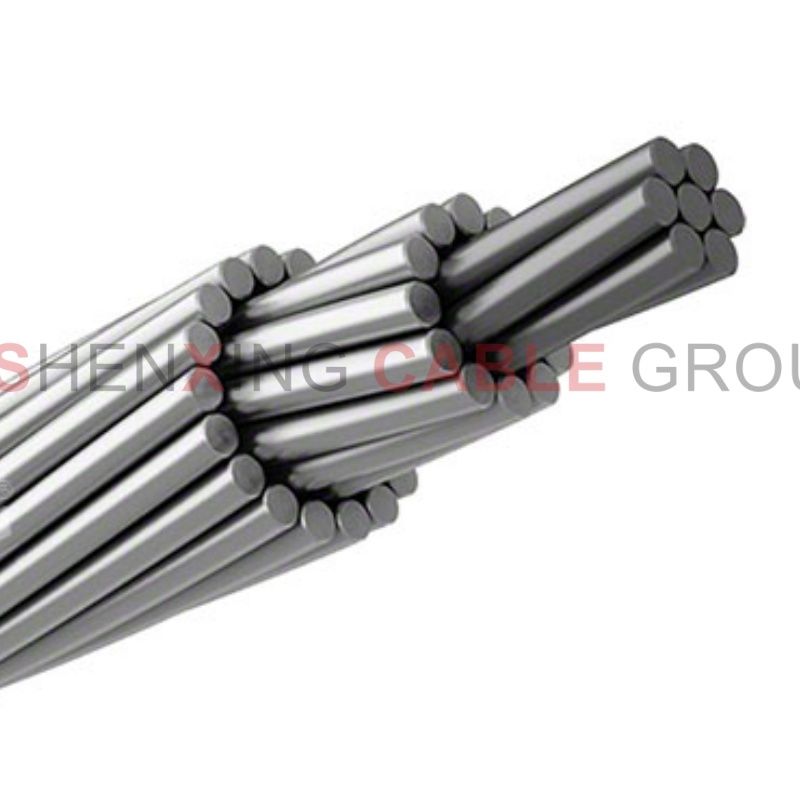

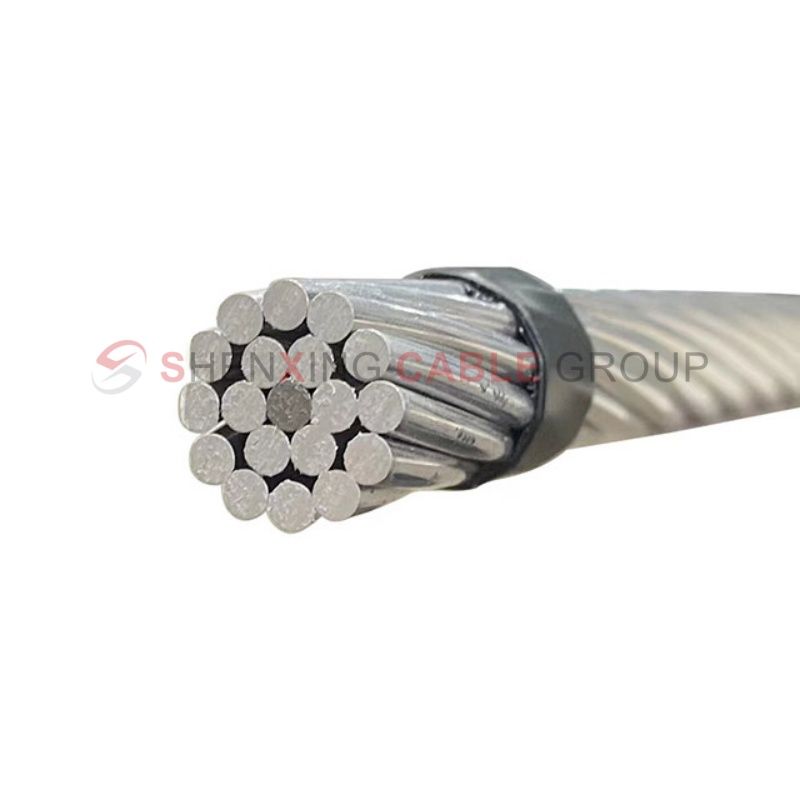

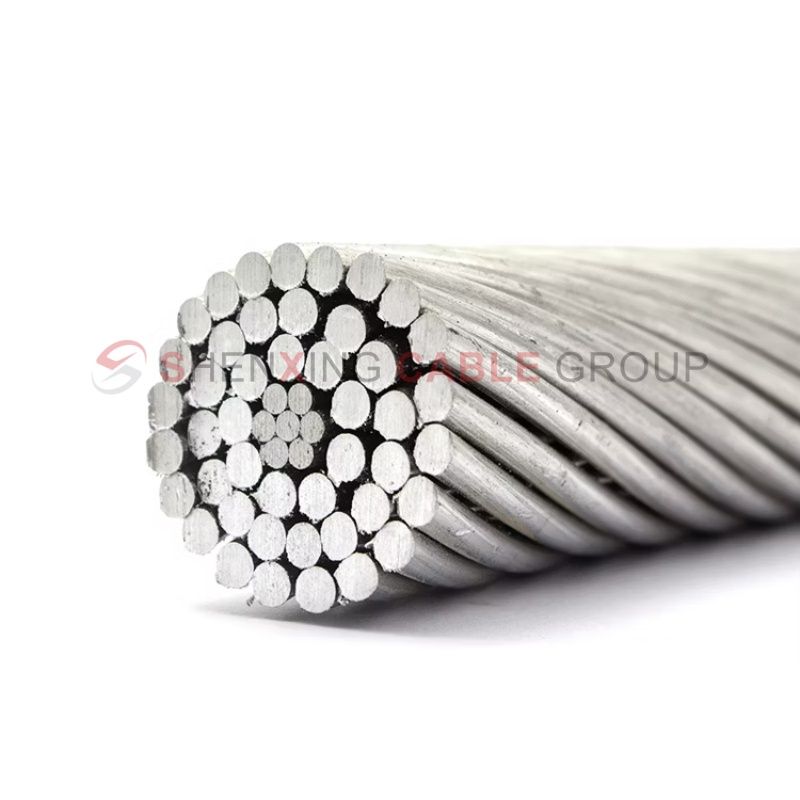

ASTM Standard ACSR Conductor – Aluminium Conductor Steel Reinforced

ASTM B232 / B498-ACSR

Shenxing Cable Group offers high-quality ACSR (Aluminium Conductor Steel Reinforced) conductors strictly manufactured in accordance with ASTM B232 and ASTM B498 standards. These conductors are widely used in overhead power transmission lines across the United States, Canada, South America, and other ASTM-standard markets.

ACSR combines high electrical conductivity with excellent mechanical tensile strength, making it ideal for long-span and high-voltage transmission lines.

Comply with international standards：

ASTM B232 – Standard for ACSR construction and properties
ASTM B498 – Specification for zinc-coated (galvanized) steel wire used in ACSR
ISO 9001:2015 – Quality management system
RoHS / REACH compliant – Environmentally friendly and fully export-compliant

Technical Data

Code Name	Area（mm²）				Equivalent copper area （mm²）		Stranding and wire diameter（mm）		Overall diameter （mm）	Weights（kg/km）			Rated Strength（kN）	Maximum dc resistance at 20°C （Ω /km）
/	AWG	Aluminium	Steel	Total	AWG	MCM	Aluminium	Steel	/	Aluminium	Steel	Total	/	/
TURKEY	6	13.3	2.22	15.52	8	8.39	6/1.68	1/1.68	5.04	36.5	17	54	5.28	2.1499
THRUSH	5	16.83	2.81	19.64	7	10.58	6/1.89	1/1.89	5.67	46	22	68	6.68	1.6987
SWAN	4	21.18	3.53	24.71	6	13.29	6/2.12	1/2.12	6.36	58	27	85	8.3	1.3501
SWANATE	4	21.12	5.35	26.47	6	13.29	7/1.96	1/2.61	6.53	58	42	100	10.68	1.3539
SWALLOW	3	26.69	4.45	31.14	5	16.77	6/2.38	1/2.38	7.14	73	35	108	10.21	1.0712
SPARROW	2	33.59	5.6	39.19	4	21.16	6/2.67	1/2.67	8.01	92	44	136	12.69	0.8512
SPARATE	2	33.54	8.55	42.09	4	21.16	7/2.47	1/3.30	8.24	92	67	159	16.14	0.8525
ROBIN	1	42.41	7.07	49.48	3	26.65	6/3.00	1/3.00	9	116	55	171	15.81	0.6742
RAVEN	1/0	53.52	8.92	62.44	2	33.61	6/3.37	1/3.37	10.11	147	69	216	19.35	0.5343
QUAIL	2/0	67.33	11.22	78.55	1	42.39	6/3.78	1/3.78	11.34	185	87	272	23.27	0.4247
PIGEON	3/0	85.12	14.19	99.31	1/0	53.48	6/4.25	1/4.25	12.75	234	110	344	29.42	0.3359
PENGUIN	4/0	107.2	17.87	125.1	2/0	67.42	6/4.77	1/4.77	14.31	294	139	433	36.54	0.2667
WAXWING	266.8	135	7.5	142.5	3/0	85.03	18/3.09	1/3.09	15.45	372	59	431	30.27	0.2118
OWL	266.8	135.4	17.62	153	3/0	85.03	6/5.36	7/1.79	16.09	371	138	512	42.95	0.2112
PARTRIDGE	266.8	134.9	21.99	156.9	3/0	85.03	26/2.57	7/2.00	16.28	373	172	545	50.23	0.2141
OSTRICH	300	152.2	24.71	176.9	189	95.48	26/2.73	7/2.12	17.28	422	193	615	56.55	0.1897
MERLIN	336.4	170.2	9.46	179.7	4/0	107.23	18/3.47	1/3.47	17.35	469	74	543	38.17	0.1688
LINNET	336.4	170.6	27.83	198.4	4/0	107.23	26/2.89	7/2.25	18.31	473	217	690	62.76	0.1693
ORIOLE	336.4	170.5	39.78	210.3	4/0	107.23	30/2.69	7/2.69	18.83	474	311	785	77.43	0.1698
CHICKADEE	397.7	200.9	11.16	212.1	250	126.45	18/3.77	1/3.77	18.85	555	87	642	43.37	0.143
BRANT	397.5	201.6	26.13	227.7	250	126.45	24/3.27	7/2.18	19.62	558	204	762	64.72	0.1433
IBIS	397.5	201.3	32.73	234	250	126.45	26/3.14	7/2.44	19.88	558	256	814	72.05	0.1434
LARK	397.5	200.9	46.88	247.8	250	126.45	30/2.92	7/2.92	20.44	558	367	925	90.3	0.1441
PELICAN	477	242.3	13.46	255.8	300	152.26	18/4.14	1/4.14	20.7	668	105	773	52.3	0.1186
FLICKER	477	241.6	31.4	273	300	152.26	24/3.58	7/2.39	21.49	669	245	914	76.78	0.1195
HAWK	477	241.6	39.49	281.1	300	152.26	26/3.44	7/2.68	21.8	669	306	975	86.73	0.1195
HEN	477	241.3	56.3	297.6	300	152.26	30/3.20	7/3.20	22.4	670	440	1110	105.16	0.12
OSPREY	556.5	282.5	15.69	298.2	350	172	18/4.47	1/4.47	22.35	779	122	901	60.52	0.1017
PARAKEET	556.5	282.3	36.6	318.9	350	172	24/3.87	7/2.58	23.22	783	286	1069	88.29	0.1023
DOVE	556.5	282.6	45.92	328.5	350	172	26/3.72	7/2.89	23.55	783	359	1142	101.1	0.1022
EAGLE	556.5	282.1	65.82	347.9	350	172	30/3.46	7/3.46	24.21	784	515	1298	122.9	0.1026
PEACOCK	605	306.1	39.78	345.9	381	187	24/4.03	7/2.69	24.2	849	311	1160	95.86	0.0943
SQUAB	605	305.8	49.81	355.6	381	187	26/3.87	7/3.01	24.51	848	389	1237	109.6	0.0944
WOODDUCK	605	307.1	71.65	378.8	381	187	30/3.61	7/3.61	25.25	853	560	1413	129	0.0943
TEAL	605	307.1	69.62	376.7	381	187	30/3.61	19/2.16	25.24	853	545	1398	136.1	0.0943
KINGBIRD	636	323	17.95	341	400	197	18/4.78	1/4.78	23.9	891	140	1031	69.72	0.089
ROOK	636	323.1	41.88	365	400	197	24/4.14	7/2.76	24.84	896	327	1223	101	0.0894
GROSBEAK	636	321.8	52.49	374.3	400	197	26/3.97	7/3.09	25.15	892	410	1302	111.9	0.0897
SCOTER	636	322.6	75.26	397.9	400	197	30/3.70	7/3.70	25.9	897	588	1485	135.5	0.0897
EGRET	636	322.6	73.54	396.1	400	197	30/3.70	19/2.22	25.9	897	576	1473	140.6	0.0897
FLAMINGO	666.6	337.3	43.72	381	419	206	24/4.23	7/2.82	25.34	935	342	1277	105.5	0.0856
GANNET	666.6	338.3	54.9	393.2	419	201	26/4.07	7/3.16	25.76	938	429	1367	117.3	0.0854
CROW	715.5	361.6	46.88	408.5	450	221	54/2.92	7/2.92	26.28	1003	366	1369	115.2	0.0799
STILT	715.5	363.3	46.88	410.2	450	222	24/4.39	7/2.92	26.32	1007	366	1373	113.3	0.0795
STARLING	715.5	361.9	59.15	421.1	450	221	26/4.21	7/3.28	26.68	1004	462	1466	125.9	0.0798
REDWING	715.5	362.1	82.41	444.5	450	221	30/3.92	19/2.35	27.43	1006	645	1651	153.7	0.08
TERN	795	403.8	27.83	431.6	500	246	45/3.38	7/2.25	27.03	1120	217	1337	97.47	0.0715
CONDOR	795	402.3	52.15	454.5	500	245	54/3.08	7/3.08	27.72	1116	407	1523	124.3	0.0718
CUCKOO	795	402.3	52.15	454.5	500	245	24/4.62	7/3.08	27.72	1116	407	1523	123.8	0.0718
DRAKE	795	402.6	65.44	468	500	246	26/4.44	7/3.45	28.11	1116	511	1627	139.7	0.0717
MALLARD	795	403.8	91.78	495.6	500	246	30/4.14	19/2.48	28.96	1122	718	1840	171.2	0.0717
CRANE	874.5	442.5	57.36	499.9	550	270	54/3.23	7/3.23	29.07	1221	448	1669	136.7	0.0649
RUDDY	900	455.5	31.67	487.2	566	278	45/3.59	7/2.40	28.74	1268	247	1510	109.4	0.0634
CANARY	900	456.3	59.15	515.5	566	278	54/3.28	7/3.28	29.52	1265	462	1727	141	0.0633
RAIL	954	483.8	33.54	517.3	600	295	45/3.70	7/2.47	29.61	1342	262	1604	116.1	0.0597
CARDINAL	954	484.5	62.81	547.3	600	296	54/3.38	7/3.38	30.42	1343	491	1834	149.7	0.0596
ORLAN	1033.5	523.9	36.31	560.2	650	320	45/3.85	7/2.57	30.81	1453	283	1736	123.3	0.0551
CURLEW	1033.5	525.5	68.1	593.6	650	321	54/3.52	7/3.52	31.68	1457	532	1989	162.4	0.055
BLUEJAY	1113	565.5	38.9	604.4	700	345	45/4.00	7/2.66	31.98	1568	304	1872	132.7	0.0511
FINCH	1113	565	71.57	636.6	700	345	54/3.65	19/2.19	32.85	1574	560	2134	174.6	0.0514
BUNTING	1192.5	605.8	41.9	647.7	750	370	45/4.14	7/2.76	33.12	1680	327	2007	142.4	0.0477
GRACKLE	1192.5	602.8	76.9	679.7	750	368	54/3.77	19/2.27	33.97	1680	601	2281	184.2	0.0481
BITTERN	1272	644.4	44.7	689.1	800	393	45/4.27	7/2.85	34.17	1787	349	2136	151.4	0.0448
PHEASANT	1272	645.1	81.71	726.8	800	394	54/3.90	19/2.34	35.1	1797	640	2137	194.1	0.045
DIPPER	1351.5	684.2	47.2	731.1	850	417	45/4.40	7/2.92	35.16	1897	366	2263	160.3	0.0422
MARTIN	1351.5	685.4	86.7	772.1	850	418	54/4.02	19/2.41	36.17	1910	678	2588	206.1	0.0423
BOBOLINK	1431	725.2	50.1	775.4	900	442	45/4.53	7/3.02	36.24	2011	392	2403	168.6	0.0398
PLOVER	1431	726.9	91.8	818.7	900	443	54/4.14	19/2.48	37.24	2025	719	2744	218.4	0.0399
NUTHATCH	1510.5	764.2	52.8	817	950	466	45/4.65	7/3.10	37.2	2119	413	2532	177.6	0.0378
PARROT	1510.5	766.1	97	863.1	950	467	54/4.25	19/2.55	38.25	2134	760	2894	230.5	0.0379
LAPWING	1590	804.1	55.6	859.8	1000	491	45/4.77	7/3.18	38.16	2230	424	2664	186.9	0.0359
FALCON	1590	806.2	102.4	908.7	1000	492	54/4.36	19/2.62	39.26	2246	802	3048	243	0.036
CHUKER	1780	903.2	73.5	976.7	1119	551	84/3.70	19/2.22	40.7	2516	576	3092	227.8	0.0321
High Strength Strandings
GROUSE	80	40.54	14.12	54.66	50	25	8/2.54	1/4.24	9.32	111	110	221	23.06	0.7089
PETREL	101.8	51.61	30.1	81.71	64	32	12/2.34	7/2.34	11.7	143	235	378	46.16	0.5595
MIORCA	110.8	56.11	32.73	88.84	70	34	I 2/2.44	7/2.44	12.2	155	256	411	50.19	0.5146
LEGHORN	134.6	68.2	39.78	108	85	42	12/2.69	7/2.69	13.46	189	311	500	60.67	0.4234
GUINEA	159	80.36	46.88	127.2	100	49	12/2.92	7/2.92	14.6	223	367	590	71.1	0.3593
DOTTEREL	176.9	89.41	52.15	141.6	111	55	12/3.08	7/3.08	15.4	248	408	656	76.68	0.323
DORKING	190.8	96.5 I	56.3	152.8	120	59	12/3.20	7/3.20	16	267	440	707	82.77	0.2992
COCHIN	211.3	107	62.44	169.4	133	65	12/3.37	7/3.37	16.85	296	488	784	91.79	0.2698
BRAHMA	203.2	102.8	91.78	194.6	128	63	16/2.86	19/2.48	18.12	285	718	1003	126.52	0.2809

Expand all

Only some product parameters are displayed. For more product information, please contact us.

The above parameters are for reference only.

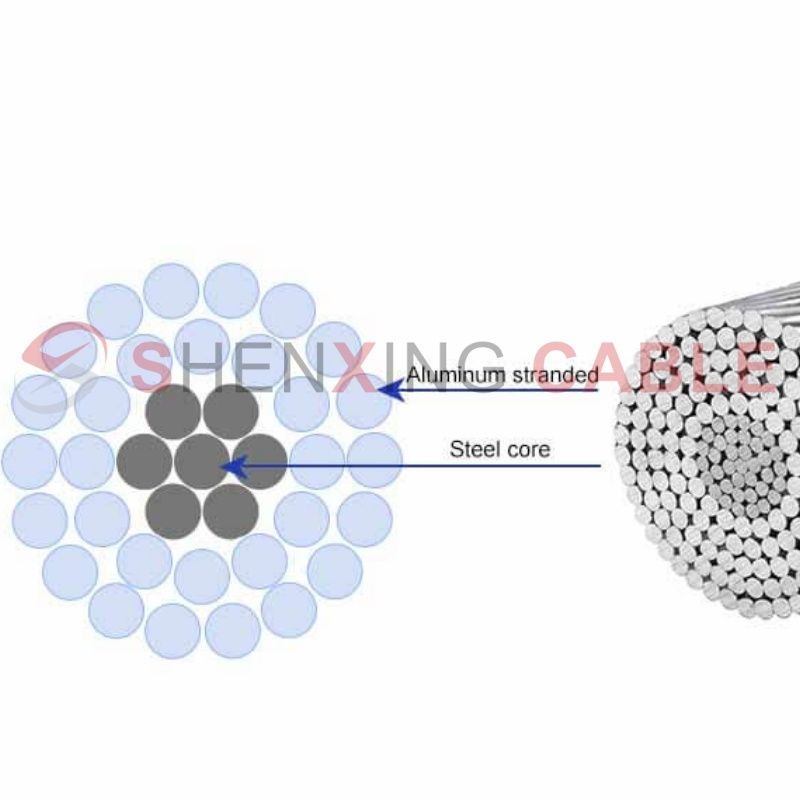

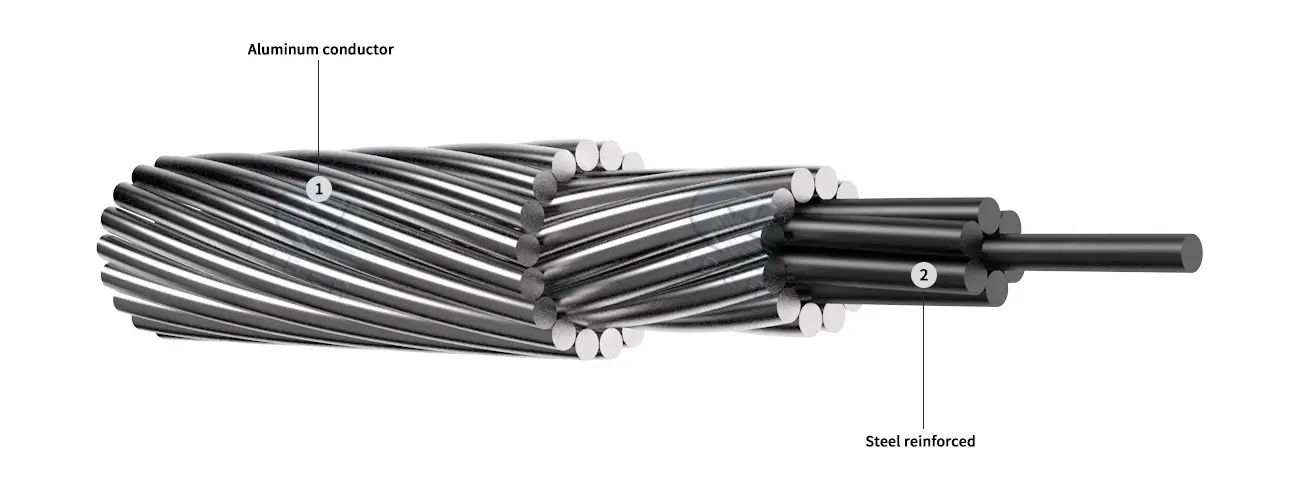

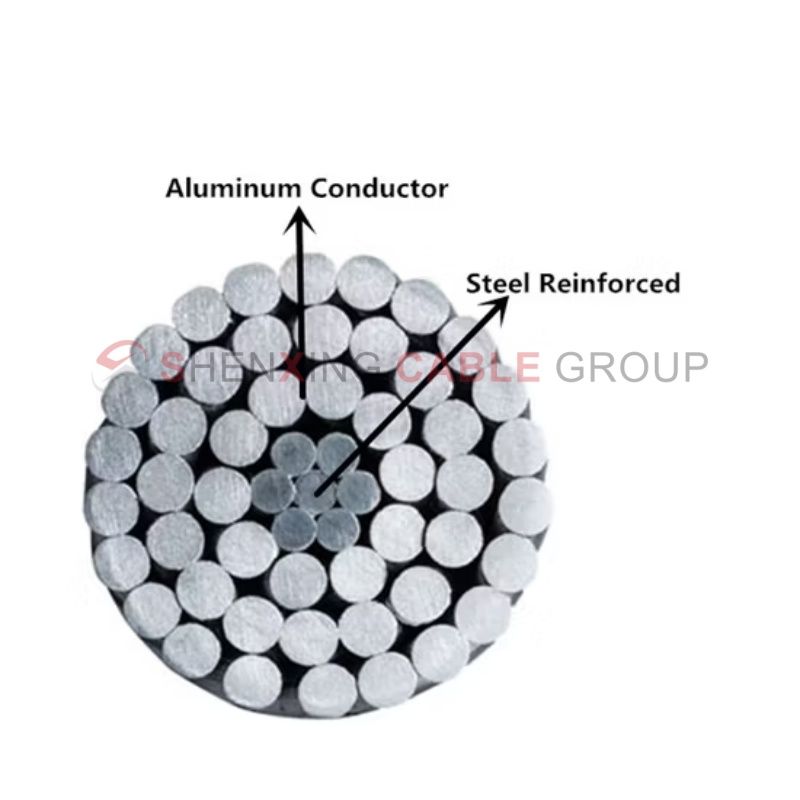

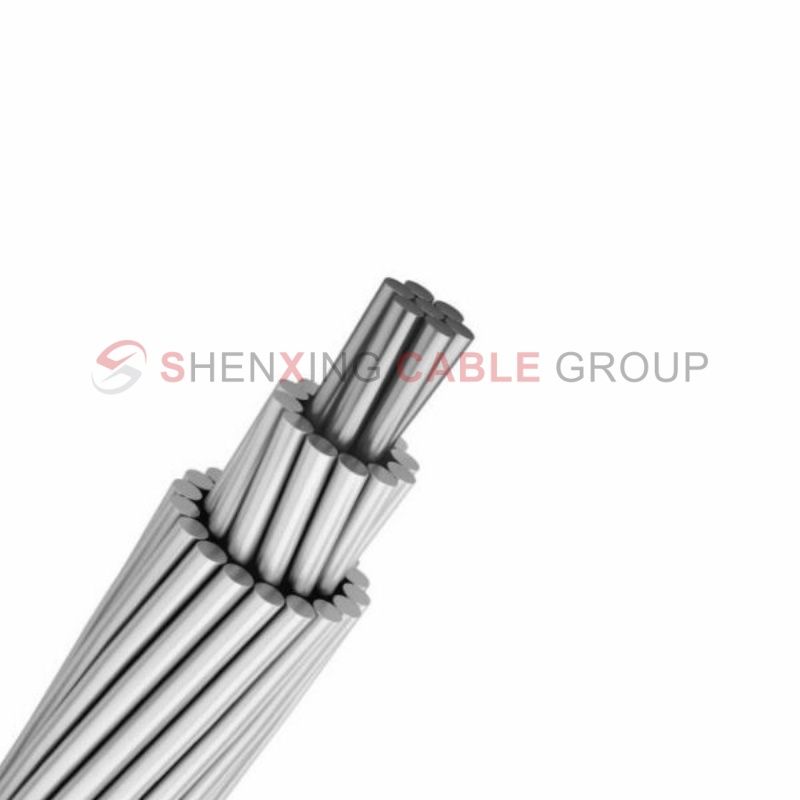

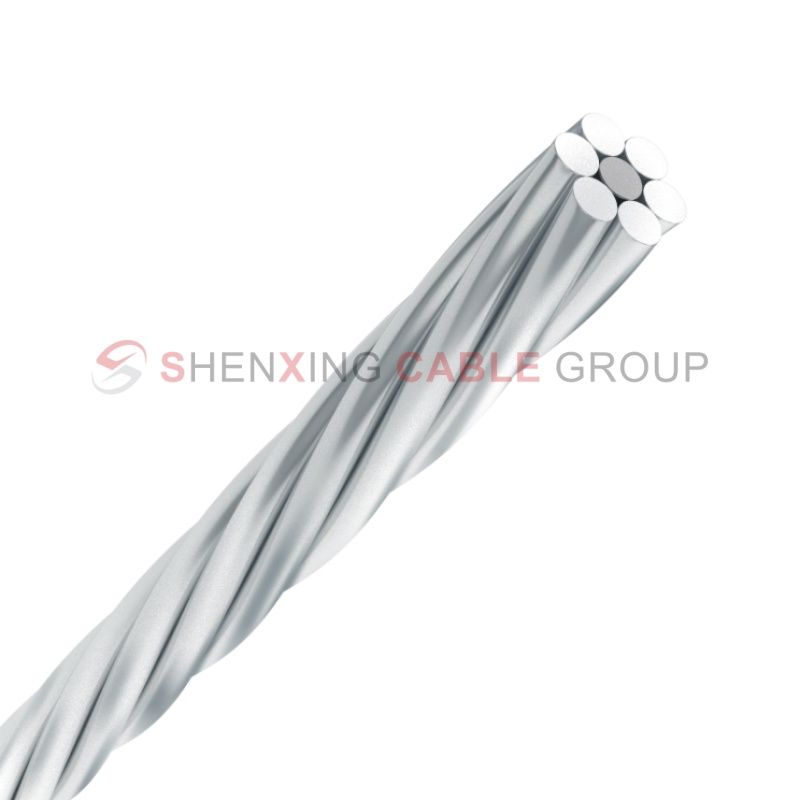

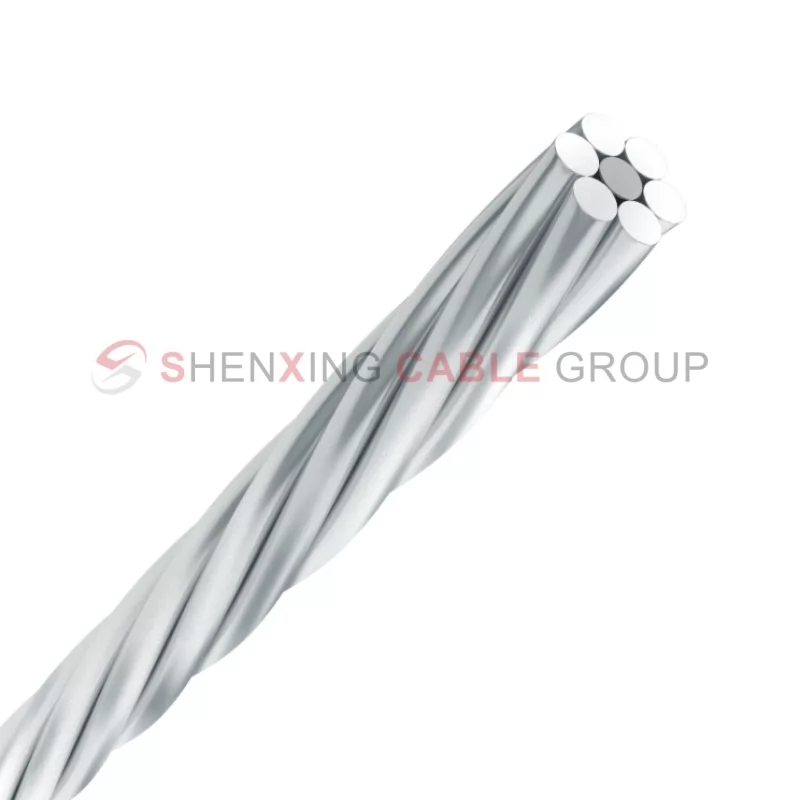

Cable Structure

ASTM Standard ACSR Conductor – Aluminium Conductor Steel Reinforced

Support

Aluminum Conductor steel Reinforced Bare-ACSR

Support

Packaging & Delivery：

Packaging: Heavy-duty wooden reels with export-grade anti-rust and anti-moisture treatment.
Labeling: Each reel labeled with conductor name, length, weight, batch number, and QR code (optional).
Delivery Terms: FOB / CIF / DDP / DAP supported for USA, Mexico, Chile, etc.
Lead Time: 15–25 working days depending on quantity and specifications.

Experimental Performance

Conductor material: Compliant with IEC 61089/ASTM B232/B232M/BS 215 Part 2/DIN 48204/CSA C49

Operating temperature range:

Continuous operating temperature: 75–80 °C
Overload temperature: 100 °C
Short-circuit temperature limit: 160–200 °C (depending on design specifications and customer requirements)

Minimum bending radius:

During transport coiling: ≥ 10D
Bending during installation or operation: ≥ 15D
