BV Cable-BVV/BVVB
BVV/BVVB cable is a high-quality power transmission cable widely used in residential, commercial and industrial environments.
The structure of BVV wire is relatively simple, from the inside to the outside, it is the core, insulator, and sheath. Simply put, the outermost layer of the sheath wraps several BV wires, which are divided into copper core PVC insulated PVC sheathed round cable and copper core PVC insulated PVC sheathed flat cable
Share:
The multi-core structure of Shenxing cable is usually composed of 2 or more copper wires, using high-quality copper wires, PVC insulation, and PVC sheath for triple protection. This structure not only ensures the flexibility of the cable, but also effectively improves the conductivity.
Widely Use:
Residential electrical systems
BVV/BVVB cables are commonly used for power wiring in residential buildings. They are suitable for indoor power distribution systems, especially for connecting power supply, lighting and power sockets.
Industrial control systems
In industrial environments, BVV/BVVB cables are used to connect motors, machines and control panels to ensure stable operation of production lines.
Construction projects
In construction projects, BVV/BVVB cables are used for power distribution and facility power supply. Their high pressure resistance and wear resistance make them very suitable for maintaining stable performance in long-term use.
Communication and network equipment
BVV/BVVB cables are also used in some communication and network equipment. They are used for power transmission between communication rooms and equipment to ensure stable power during data transmission.
Advantage:

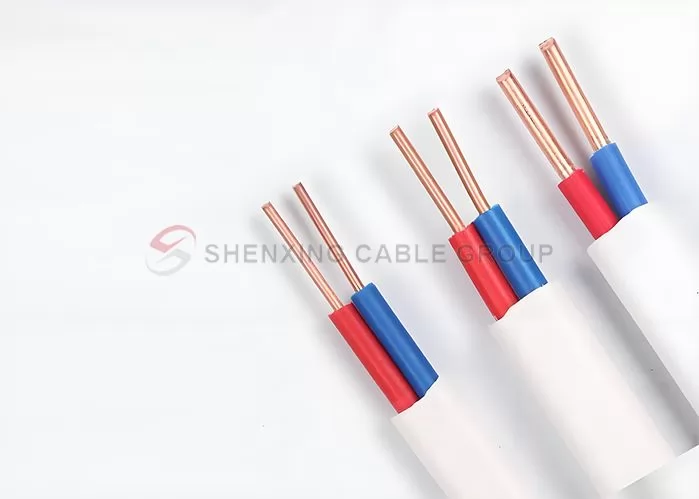

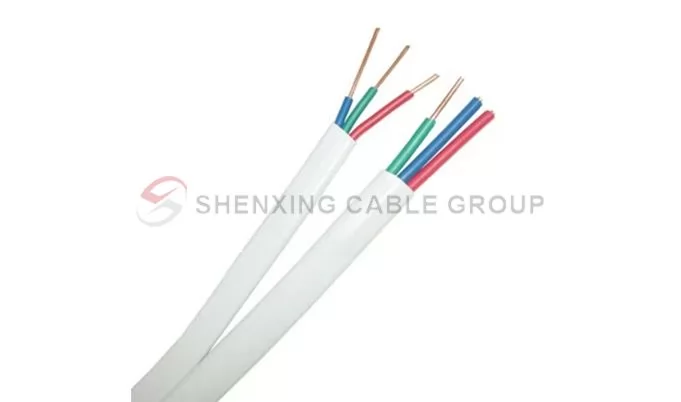

BVVB wire, also known as flat twin and earth cable.
Space-saving design: BVVB wire consists of two insulated conductors (twin) and an additional uninsulated conductor (earth) laid flat side by side. This design allows for a compact and space- saving installation.
Easy installation: Makes it easier to handle and install compared to round cables.The flat shape also helps to minimize the risk of cable twisting or tangling during installation.
Versatility and Cost-effective Compatibility with accessories: BVVB wire is compatible with a wide range of electrical accessories, such as switches, sockets, and junction boxes.
Technical Data
| Nominal cross-sectional area | Insulation thickness | Inner sheath thickness | Sheath thickness | Solid conductor | Stranded conductor | ||||
| Cable outer diameter lower limit | Cable outer diameter upper limit | Minimum insulation resistance at 70℃ | Cable outer diameter lower limit | Cable outer diameter upper limit | Minimum insulation resistance at 70℃ | ||||
| （mm²） | （mm） | （mm） | （mm） | （mm） | （mm） | （ MΩ/km） | （mm） | （mm） | （ MΩ/km） |
| 1.5 | 0.7 | 0.4 | 1.2 | 7.6 | 10 | 0.011 | 7.8 | 10.5 | 0.01 |
| 2.5 | 0.8 | 0.4 | 1.2 | 8.6 | 11.5 | 0.01 | 9 | 12 | 0.009 |
| 4 | 0.8 | 0.4 | 1.2 | 9.6 | 12.5 | 0.0085 | 10 | 13 | 0.0077 |
| 6 | 0.8 | 0.4 | 1.2 | 10.5 | 13.5 | 0.007 | 11 | 14 | 0.0065 |
| 10 | 1 | 0.6 | 1.4 | 13 | 16.5 | 0.007 | 13.5 | 17.5 | 0.0065 |
| 16 | 1 | 0.6 | 1.4 | 15.5 | 20 | 0.0052 | |||
| 25 | 1.2 | 0.8 | 1.4 | 18.5 | 24 | 0.005 | |||
| 35 | 1.2 | 1 | 1.6 | 21 | 27.5 | 0.0044 | |||
| 1.5 | 0.7 | 0.4 | 1.2 | 8 | 10.5 | 0.011 | 8.2 | 11 | 0.01 |
| 2.5 | 0.8 | 0.4 | 1.2 | 9.2 | 12 | 0.01 | 9.4 | 12.5 | 0.009 |
| 4 | 0.8 | 0.4 | 1.2 | 10 | 13 | 0.0085 | 10.5 | 13.5 | 0.0077 |
| 6 | 0.8 | 0.4 | 1.4 | 11.5 | 14.5 | 0.007 | 12 | 15.5 | 0.0065 |
| 10 | 1 | 0.6 | 1.4 | 14 | 17.5 | 0.007 | 14.5 | 19 | 0.0065 |
| 16 | 1 | 0.8 | 1.4 | 16.5 | 21.5 | 0.0052 | |||
| 25 | 1.2 | 0.8 | 1.6 | 20.5 | 26 | 0.005 | |||
| 35 | 1.2 | 1 | 1.6 | 22 | 29 | 0.0044 | |||
| 1.5 | 0.7 | 0.4 | 1.2 | 8.6 | 11.5 | 0.011 | 9 | 12 | 0.01 |
| 2.5 | 0.8 | 0.4 | 1.2 | 10 | 13 | 0.01 | 10 | 13.5 | 0.009 |
| 4 | 0.8 | 0.4 | 1.4 | 11.5 | 14.5 | 0.0085 | 12 | 15 | 0.0077 |
| 6 | 0.8 | 0.6 | 1.4 | 12.5 | 16 | 0.007 | 13 | 17 | 0.0065 |
| 10 | 1 | 0.6 | 1.4 | 15.5 | 19 | 0.007 | 16 | 20.5 | 0.0065 |
| 16 | 1 | 0.8 | 1.4 | 18 | 23.5 | 0.0052 | |||
| 25 | 1.2 | 1 | 1.6 | 22.5 | 28.5 | 0.005 | |||
| 35 | 1.2 | 1 | 1.6 | 24.5 | 32 | 0.0044 | |||
| 1.5 | 0.7 | 0.4 | 1.2 | 9.4 | 12 | 0.011 | 9.8 | 12.5 | 0.01 |
| 2.5 | 0.8 | 0.4 | 1.2 | 11 | 14 | 0.01 | 11 | 14.5 | 0.009 |
| 4 | 0.8 | 0.6 | 1.4 | 12.5 | 16 | 0.0085 | 13 | 17 | 0.0077 |
| 6 | 0.8 | 0.6 | 1.4 | 13.5 | 17.5 | 0.007 | 14.5 | 18.5 | 0.0065 |
Expand all
Only some product parameters are displayed. For more product information, please contact us.
The above parameters are for reference only.
Cable Structure
BVV PVC Sheathed Cable/BVVB PVC Sheathed Flat Cable
Features
Features
High-quality conductors
BVV/BVVB cables use highly conductive copper or aluminum conductors to ensure stable and efficient current transmission.
Durable outer sheath
The outer sheath of the cable is made of PVC (polyvinyl chloride) sheath, which has excellent corrosion resistance and high temperature resistance to extend the service life.
Good anti-electromagnetic interference
BVV/BVVB cables have excellent anti-electromagnetic interference capabilities and are particularly suitable for complex industrial environments.
Flexibility and operability
The cables have good bendability and flexibility, reducing the difficulty and time of installation.
Versatile applicability
BVV/BVVB cables are widely used in residential, industrial, construction and other fields, and can cope with power transmission with different load requirements.
Experimental Performance
For all types of BVVB/BVV cables, the long-term allowable operating temperature shall not exceed 70 ℃.
The laying temperature of the cable shall not be lower than 0 ℃.
When the cable outer diameter (D) is less than 25 mm, the minimum allowable bending radius shall not be less than 4D.
When the cable outer diameter (D) is greater than or equal to 25 mm, the minimum allowable bending radius shall not be less than 6D
Production
Production Equipment
Projects
Building a Solid Neural Network for Smart Campuses
COMMON QUESTIONS
SHENXING Cable Service FAQs
Want to learn more? Check out our electrical cable most frequently asked questions.
What is the difference between BVV cable and BVVB cable?
The main difference between BVV cable and BVVB cable is the appearance and purpose. BVV cable is a round cable, suitable for power systems and household appliances with AC current of 450/750V and below, and can be used for exposed wiring. BVVB cable is a flat cable, suitable for flame-retardant places with a rated voltage of 300/500V, and is often used for fixed laying of welders, instrument panels, communication products, power systems and lighting lines
What are the structure and characteristics of BVV cable?
The structure of BVV cable includes multi-strand copper conductors, polyvinyl chloride insulation layer and polyvinyl chloride sheath. Its characteristics include:
Rated voltage: 450/750V and below
Operating temperature: long-term allowable operating temperature does not exceed 65℃
Maximum temperature during short circuit: no more than 160℃ (maximum duration does not exceed 5 seconds)
Ambient temperature: the ambient temperature when laying cables should not be lower than 0℃
Other characteristics: acid and alkali resistance, oil resistance, moisture resistance, mildew resistance, etc.
What is the structure and characteristics of BVVB cable?
The structure of BVVB cable includes single-strand bare copper wire or multiple-strand twisted copper wire, and the insulation layer and sheath materials are both polyvinyl chloride. Its characteristics include:
Rated voltage: 300/500V
Operating temperature: long-term allowable operating temperature does not exceed 70℃
Laying temperature: not less than 0℃
Other characteristics: customizable (anti-aging, wear resistance, low temperature resistance, waterproof, chemical corrosion resistance, environmental protection, low smoke and halogen-free, etc.)
What are the application scopes of BVV cable and BVVB cable?
BVV cables are suitable for power systems and household appliances with AC current of 450/750V and below, and can be used for exposed wiring. BVVB cables are suitable for flame-retardant places with a rated voltage of 300/500V, and are often used for fixed laying of welders, instrument panels, communication products, power systems and lighting lines.
What are the rated voltages of BVV cables and BVVB cables?
The rated voltage of BVV cables is 450/750V and below, while the rated voltage of BVVB cables is 300/500V12.
What is the operating temperature range of BVV cables and BVVB cables?
The operating temperature of BVV cables does not exceed 65℃, while the operating temperature of BVVB cables does not exceed 70℃.
What are the laying ambient temperature requirements for BVV cables and BVVB cables?
The ambient temperature for laying BVV cables and BVVB cables should not be lower than 0℃.
What is the allowable bending radius of BVV cables and BVVB cables?
For cables less than 25mm, the allowable bending radius of BVV cables and BVVB cables should be no less than 4 times; for cables greater than 25mm, the allowable bending radius should be no less than 6 times.
What are the color options for BVV cables and BVVB cables?
The colors of BVV cables include red, yellow, yellow-green, blue, green, black, etc., while the color of BVVB cables is mainly white.
What are the implementation standards of BVV cables and BVVB cables?
The implementation standard of BVV cables is JB8734-98/GB5023-97, while the implementation standard of BVVB cables is JB8734-98/GB5023-97
