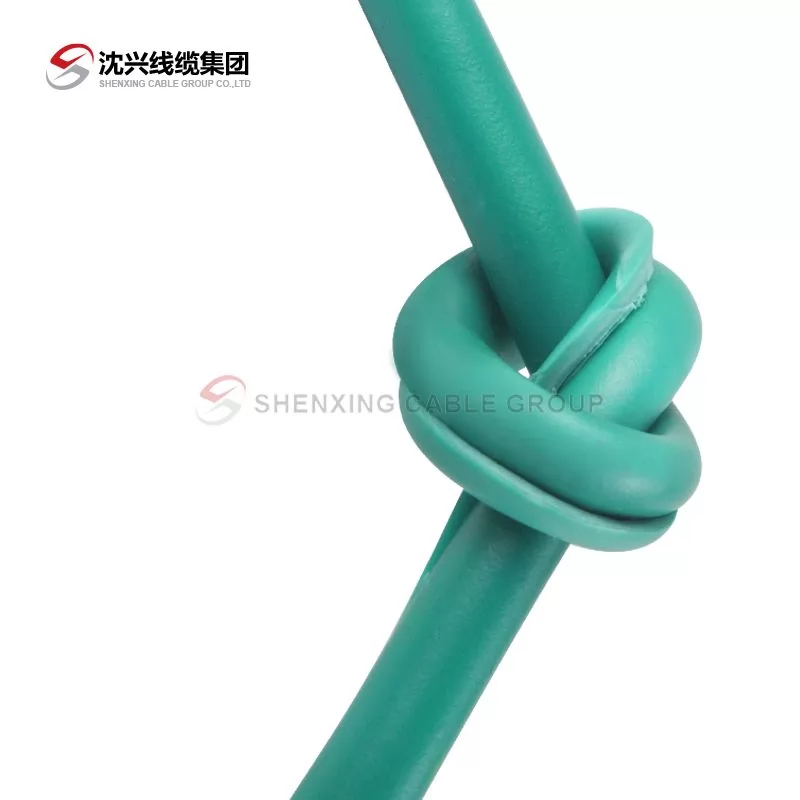

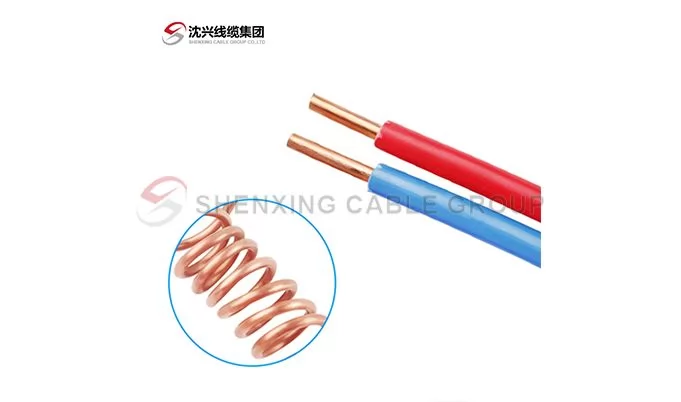

Copper Core PVC Insulated Wire

This product is made of high quality oxygen-free copper and environmentally friendly PVC, the performance of the products are in line with national standards GB / T5023.3-2008 / IEC60227-3: 1997.

With anti-acid-base, oil resistance, moistureproof, mouldproof and other characteristics.

Widely Use:

BV wire types are divided into ordinary type, flame retardant type, and fire resistant type.

Ordinary type: used for residential, commercial buildings and industrial distribution circuits (BV)
Flame retardant type: to prevent the spread of secondary fires (ZR-BV, ZA-BV, ZB-BV, ZC-BV)
Fire resistant type: used for fire extinguishing systems (NH-BV)

Advantage:

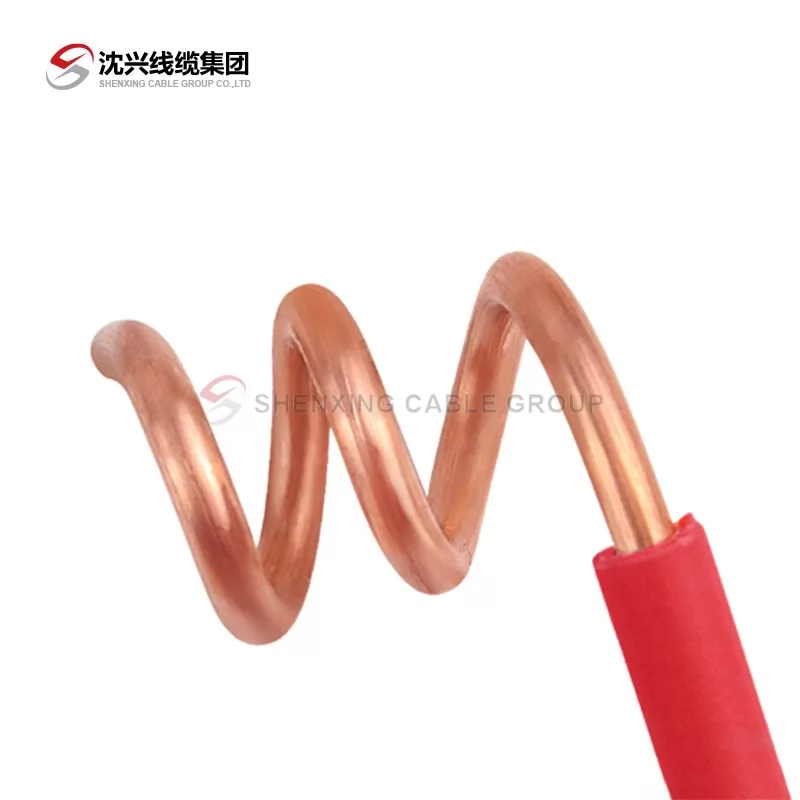

High-quality copper conductor
Shenxing's BV cables use high-quality copper materials to ensure excellent conductivity and low resistance to meet various power needs.
PVC insulation layer
Effectively prevent current leakage, while having excellent wear resistance and chemical corrosion resistance to ensure long-term safe use.
High temperature and cold resistance
BV cable design can adapt to various climatic conditions to ensure reliable operation in extreme environments.
Multiple specifications available
Whether it is home wiring or industrial equipment connection, Shenxing can provide suitable solutions.
Environmentally friendly materials
BV cables are made of environmentally friendly materials and meet international environmental standards, providing users with a safe choice.

Technical Data

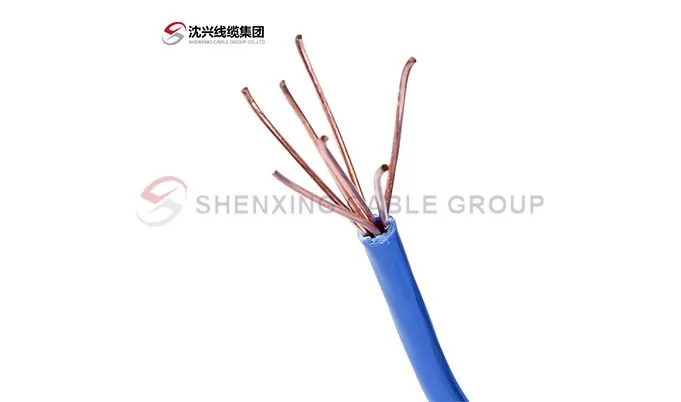

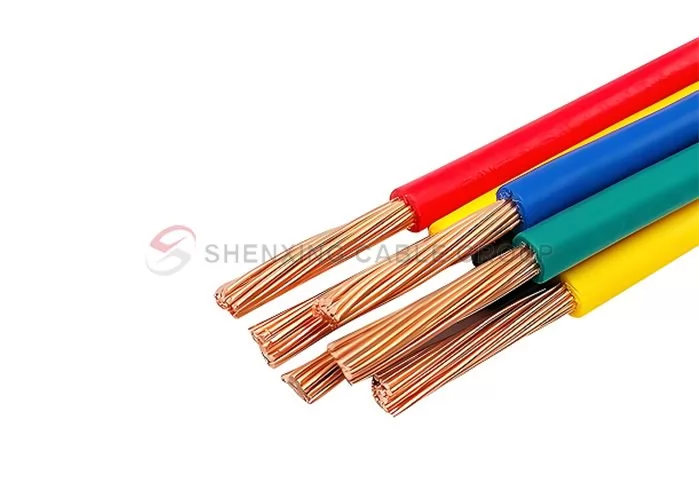

			Solid Conductor				Stranded conductor
Number of cores	Conductor diameter	Nominal cross-sectional area	Insulation thickness	Cable outer diameter lower limit	Cable outer diameter upper limit	Minimum insulation resistance at 70℃	Insulation thickness	Cable outer diameter lower limit	Cable outer diameter upper limit	Minimum insulation resistance at 70℃
	（mm）	（mm²）	（mm）	（mm）	（mm）	（ MΩ/km）	（mm）	（mm）	（mm）	（ MΩ/km）
Single core	0.8	0.5	0.6	1.9	2.4	0.15
	1	0.75	0.6	2.1	2.6	0.012
	1.1	1	0.6	2.2	2.8	0.011
	1.4	1.5	0.7	2.6	3.3	0.011	0.7	2.7	3.4	0.01
	1.8	2.5	0.8	3.2	3.9	0.01	0.8	3.3	4.2	0.009
	2.3	4	0.8	3.6	4.4	0.0085	0.8	3.8	4.8	0.0077
	2.8	6	0.8	4.1	4.9	0.007	1	4.3	5.4	0.0065
	3.6	10	1	5.3	6.4	0.007	1	5.6	6.8	0.0065
	4.5	16					1.2	6.4	8	0.005
	6	25					1.2	8.1	9.8	0.005
	7	35					1.4	9	11	0.0043
	8.3	50					1.4	10.6	13	0.0043
	9.8	70					1.6	12.1	15	0.0035
	11.5	95					1.6	14.1	17	0.0035
	12.9	120					1.8	15.6	19	0.0032
	14.5	150					2	17.3	21	0.0032
	16	185					2	19.3	23.5	0.0032
	18.3	240					2.2	22	26.5	0.0032
	20.5	300					2.4	24.5	29.5	0.003
	23.5	400					2.6	27.5	33.5	0.0028

Expand all

Only some product parameters are displayed. For more product information, please contact us.

The above parameters are for reference only.

Cable Structure

Copper Core PVC Insulated Wire

Features

Installation Tips

Applicable Environment
BV cables are designed for indoor and outdoor installations, have good oxidation and corrosion resistance, and are suitable for various climate conditions.
Ensure Compliance
Ensure that all installations comply with national and regional electrical codes to avoid potential safety hazards.
Reasonable Wiring
Avoid contact between BV cables and high temperatures or harmful chemicals to extend their service life.

Experimental Performance

The long-term permissible operating temperature of all types of cables shall not exceed 70 ℃.
The laying temperature of the cable shall not be less than 0 ℃.
The outer diameter (D) is less than 25 mm cable allowed bending radius should not less than 4D.
The outer diameter (D) of 25mm and above the allowable bending radius of cable should not be less than 6D.

Production

Production Equipment

Cantilever Single Twister

Finished Cables

Fork Type Stranding Machine

Frame Type Stranding Machine

Plastic Extruder

Wire Braiding Machine

Wire Storage Device

Cable making equipment

Low voltage workshop

110kV production line

Crosslinking equipment

Control cable workshop

Experimental Equipment

Projects

Building a Solid Neural Network for Smart Campuses

A newly built smart campus aims to create a digital and intelligent learning environment. In order to meet the needs of teaching buildings, dormitories, libraries and other buildings on campus for power, data transmission, security monitoring and other aspects, the school decided to use high-quality and high-performance cable products. Read More

Empowering Green Energy: Shenxing Cable Group Supports 50MW Wind Power Project

Recently, the Shanxi Loufan Shejiaqu and Matoushan 50MW Wind Power Project, undertaken by China Power Construction Ningxia Engineering Co., Ltd., has made significant progress. As a leading cable manufacturer in China, Shenxing Cable Group supplied 26,632 meters of high-quality cables, ensuring efficient operations and stable power transmission for this landmark green energy project. Read More

Case Study on Optimization of Mobile Equipment Cable Solution in Open-Pit Mine Project Background

The mobile equipment cables in an open-pit coal mine are often damaged due to frequent bending, dragging, and rolling, resulting in frequent equipment shutdowns, which seriously affects production efficiency. Read More

New Energy Power Plant Grid-Connected Cable Solution Case

A large photovoltaic power plant was newly built in a certain place. Since the power plant is located in a remote area and is exposed to the sun for a long time, it places extremely high requirements on the performance of the cables connecting the photovoltaic modules and inverters. Read More

Offshore Drilling Platform Cable Solutions

An internationally renowned oil exploration company has constructed a new offshore drilling platform in the North Sea region. Read More

Intelligent Gold Mine Data Transmission Cable Solution

An intelligent gold mine is committed to achieving real-time monitoring and control of the production process through a highly automated control system to improve production efficiency and safety. Read More

COMMON QUESTIONS

SHENXING Cable Service FAQs

Want to learn more? Check out our electrical cable most frequently asked questions.

What is the temperature range of BV cables?

The operating temperature range of BV cables is generally between -15℃ and +70℃, which is suitable for most home and industrial applications.

How to determine whether BV cables are qualified?

Make sure that BV cables have relevant international certification marks, such as IEC, UL, etc., to verify their safety and quality.

Is BV cable suitable for use in high humidity environments?

BV cables can be used under certain humidity, but should be avoided from being soaked in water for a long time to prevent damage to the insulation layer.

How to choose the appropriate BV cable specifications?

Choosing the appropriate specifications requires considering the electrical load, use environment and wiring length. It is recommended to consult a professional electrician or refer to relevant specifications.
