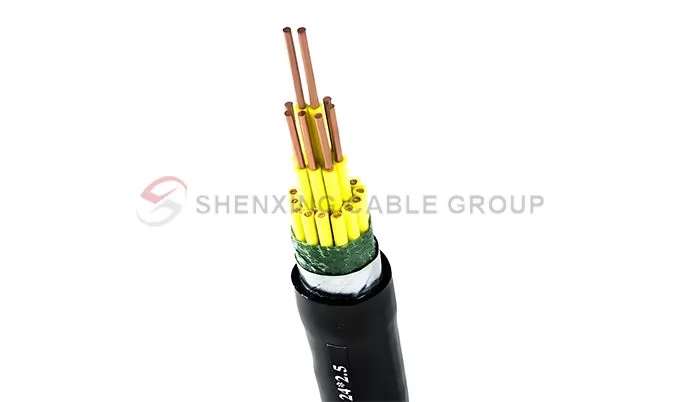

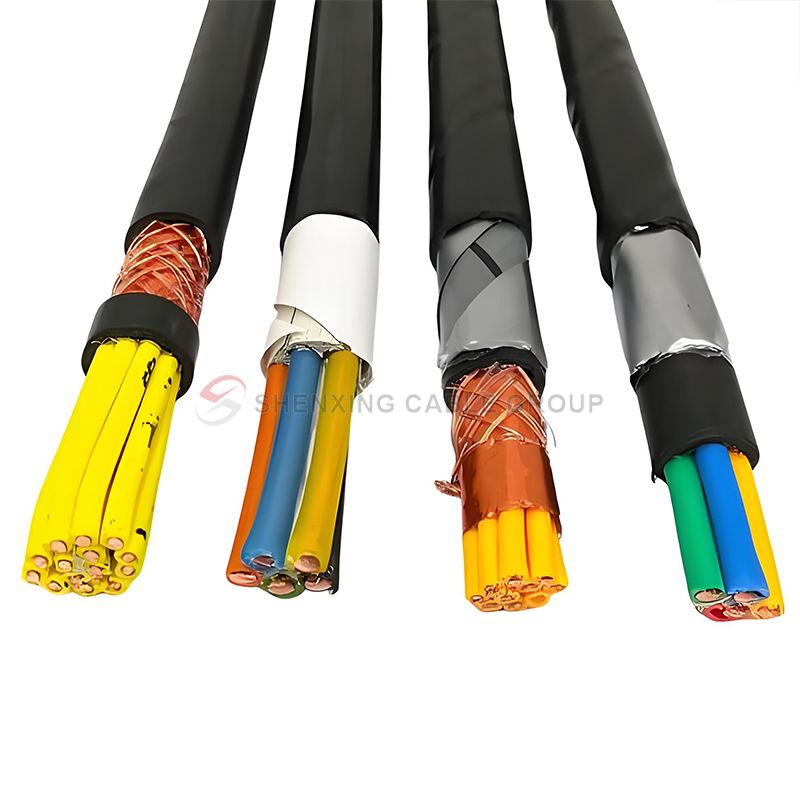

Control Cable-KVV22
KVV22 steel belt armored control cable is a high-strength industrial control cable launched by Shenxing Cable Group. It is designed for complex and harsh environments and has excellent mechanical strength and anti-interference capabilities. The cable adopts high-purity copper core, polyvinyl chloride insulation layer and steel belt armor design, which can provide reliable and stable power and signal transmission for various industrial applications. It is an ideal choice for industrial automation, machinery manufacturing, petrochemical, power equipment and outdoor control systems.
Share:
Implementation standard
The implementation standard of KVV22 cable is GB9330-88 "PVC insulated PVC sheathed control cable with rated voltage of 450/750V and below". In addition, the flame retardant cable should also meet the technical requirements of IEC332-3 standard.
Widely Use:
Industrial Automation Cable
Suitable for power and signal transmission in production lines, electrical control systems and other occasions. It is stable and durable, ensuring the efficient operation of automation equipment.
Petrochemical Cable
KVV22 cable can maintain stable performance in highly corrosive environments and is a good choice for signal and power transmission in petrochemical equipment, chemical plants, and oil fields.
Building and Elevator System Cable
Due to its good tensile and wear resistance, KVV22 cable is suitable for installation in elevator shafts and building power control systems.
Outdoor Power Facility Cable
The weather resistance, anti-interference and mechanical strength of this cable make it suitable for signal and power transmission in outdoor equipment, power control cabinets and power station control systems.
Advantage:
Designed for demanding applications
The unique design of KVV22 cable's ultra-high durability and anti-interference ability makes it an ideal choice for demanding industrial applications.
Industry-leading quality certification
KVV22 cable has passed many international quality certifications: IEC, GB, ROHS, EMC, API 610, etc.
Solutions for specific industries
KVV22 cable is particularly suitable for demanding industries such as industrial automation, petrochemicals, and rail transportation.
Convenient after-sales service and technical support
Shenxing Cable Group provides comprehensive technical support and after-sales service for KVV22 cable users to ensure that customers can get help and solutions in time during use.
Technical Data
| Cable Model | Structural Features | Conductor nominal cross-sectional area （mm²） | |||||||||
| Shielding Type | Armor Type | Flexible cable | 0.5 | 0.75 | 1 | 1.5 | 2.5 | 4 | 6 | 10 | |
| Number of Cores | |||||||||||
| KVV、KVVP、KYJV、 KYJVP、KYJY、KYJTYP | No or copper wire | None | No | — | 2-61 | 2-19 | 2-10 | ||||
| KVVP2、KVVP3、KVVP4、 KYJVP2、KYJVP3、KYJVP4、 KYJYP2、KYJYP3、KYJYP4 | Metal Strip | Steel belt | No | — | 4-61 | 4-19 | 4-10 | ||||
| KVV22、KYJV22、KYJY23、 KVVP2-22、KYJVP2-22、 KYJYP2-23 | None or copper tape | Steel belt | No | — | 7-61 | 4-61 | 4-19 | 4-10 | |||
| KVV32、KYJV32、KYJY33 | None | Steel Wire | No | — | 19-61 | 7-61 | 4-19 | 4-10 | |||
| KVVR | None | None | Yes | 2-16 | — | — | — | ||||
| KVVRP | Copper wire | None | Yes | 2-61 | 2-48 | — | — | — | |||
Expand all
Only some product parameters are displayed. For more product information, please contact us.
The above parameters are for reference only.
Cable Structure
Control Cable-KVV22
Features
Features
Copper core conductor
High-purity copper core conductor, excellent conductivity, low resistance, can effectively reduce energy loss and ensure power transmission efficiency.
PVC insulation and sheath
The inner layer is made of polyvinyl chloride (PVC) insulation material, and the outer layer is protected by PVC sheath, which is suitable for long-term use in outdoor and harsh industrial environments.
Steel belt armored structure
This makes KVV22 cable perform well in underground laying, mechanical equipment wiring and open-air environments, and its pressure resistance is better than that of unarmored cables.
Anti-interference shielding
The armor layer of KVV22 cable effectively reduces electromagnetic interference and signal attenuation, and is suitable for signal transmission of automation control and precision instruments.
Wide temperature operating range
It can work stably in the temperature range of -20℃ to +70℃, and adapt to environments with large temperature differences or complex climates.
Usage Characteristics
Maximum rated operating temperature of conductor: 70°C or 90°C
Maximum short-circuit temperature of conductor: 160°C or 250°C, with a maximum duration of 5 seconds.
Installation and laying temperature: The minimum installation and laying temperature shall not be lower than 0°C.
Laying temperature: The laying temperature in air is 40°C, and the laying temperature in soil is 25°C.
Minimum bending radius:
Single-core cable: 20(D+d) ±5%
Multi-core cable: 15(D+d) ±5%
Production
Production Equipment
Projects
Building a Solid Neural Network for Smart Campuses
COMMON QUESTIONS
SHENXING Cable Service FAQs
Want to learn more? Check out our electrical cable most frequently asked questions.
What are the main application areas of KVV22 cables?
KVV22 cables are widely used in industrial automation, petrochemical, rail transit, building electrical and lifting equipment. Its design adapts to complex environments and ensures stable transmission of power and signals under high load and electromagnetic interference conditions.
What is the operating temperature range of KVV22 cables?
KVV22 cables can work stably in a wide temperature range of -20℃ to +70℃, suitable for various climatic conditions and environmental requirements, and perform well in both outdoor installations and industrial environments.
What industry standards does KVV22 cable comply with?
KVV22 cables comply with multiple international and domestic standards, including IEC 60228, GB/T 12706-2008, GB 12666.6, etc., to ensure that they meet industry requirements in terms of electrical performance, safety and environmental protection.
How durable is the KVV22 cable?
KVV22 cable adopts high-purity copper core and double-layer PVC insulation, combined with innovative steel belt armor design, providing excellent wear resistance and impact resistance, suitable for long-term use in harsh environments.
Does KVV22 cable have the ability to resist electromagnetic interference?
Yes, KVV22 cable adopts advanced high-density braided shielding technology, which can effectively reduce electromagnetic interference and ensure the stability of signals in complex electromagnetic environments. It is suitable for automation control systems and precision instruments.
Is the installation of KVV22 cable convenient?
KVV22 cable is designed with flexibility in mind, easy to install quickly in complex wiring environments, reducing construction difficulty and time, and is an ideal choice for modern industrial applications.
How to ensure the quality and reliability of KVV22 cable?
KVV22 cable has passed strict quality control and multiple international standard certifications, and customers can use it with confidence. We also provide comprehensive after-sales service and technical support to ensure that customers get the necessary help during use.
