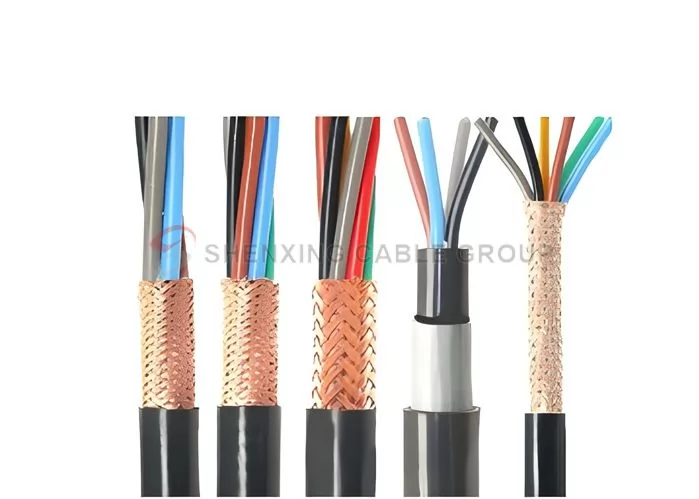

WDZA-KVVR Cable-kvvrp
Low smoke zero halogen flame retardant copper core PVC insulated PVC sheathed braided shielded flexible control cable is a cable product designed for high safety and environmental protection requirements. It uses high-purity copper core, low smoke zero halogen PVC insulation and sheath materials. It not only has excellent conductivity, but also has excellent flame retardancy, low smoke zero halogen characteristics, which can effectively prevent the spread of fire and reduce the release of harmful gases, ensuring the safety of equipment and personnel. The braided shielding layer can effectively prevent external electromagnetic interference and ensure the stability and reliability of the signal. This cable is widely used in automation equipment, building electrical, power distribution, communication systems and other fields, and is particularly suitable for use in environments that require frequent movement, bending or high electromagnetic interference.
Share:
Application fields
Industrial Automation and Control Systems
The low smoke and halogen-free characteristics make it safer in fire accidents and suitable for environments requiring high safety, such as automated production lines and robotic systems.
Building Electrical Systems
In building electrical systems, low smoke and halogen-free flame-retardant cables are ideal for ensuring the normal operation of power systems, lighting systems, fire protection systems, etc.
Power Distribution Systems
Power transmission and distribution facilities require the use of cables with high safety and anti-interference, especially in high-risk places such as substations and power plants.
Communication Systems
Low smoke and halogen-free flame-retardant cables ensure high-speed and stable transmission of data and signals. Its braided shielding layer effectively prevents electromagnetic interference and is suitable for use in places with complex electromagnetic environments.
Advantage:
Low smoke, halogen-free and flame retardant
This makes the cable particularly suitable for public places, high-rise buildings and crowded areas, avoiding poisoning, suffocation or other health hazards caused by fire, and ensuring the safe evacuation of personnel.
Excellent conductivity
The cable adopts high-purity copper core, with low resistance and high conductivity, which can ensure stable power and signal transmission while reducing the potential risks caused by current overload or power loss.
Braided shield protection
The braided copper shielding layer has good electromagnetic shielding effect, which can effectively reduce the influence of external electromagnetic interference (EMI) on the internal signal of the cable, ensuring the precise control and signal transmission of the equipment.
Highly flexible design
The cable adopts a flexible structure design, which is very suitable for use in environments that require frequent movement, bending or twisting, such as automation equipment, production lines, mechanical control systems, etc.
Compliance with international standards
The cable complies with international and industry standards such as GB/T 9330-2008, IEC 60332, UL 758, etc., ensuring the safety, reliability and high performance of the cable.
Technical Data
| Cable Model | Structural Features | Conductor nominal cross-sectional area （mm²） | |||||||||
| Shielding Type | Armor Type | Flexible cable | 0.5 | 0.75 | 1 | 1.5 | 2.5 | 4 | 6 | 10 | |
| Number of Cores | |||||||||||
| KVV、KVVP、KYJV、 KYJVP、KYJY、KYJTYP | No or copper wire | None | No | — | 2-61 | 2-19 | 2-10 | ||||
| KVVP2、KVVP3、KVVP4、 KYJVP2、KYJVP3、KYJVP4、 KYJYP2、KYJYP3、KYJYP4 | Metal Strip | Steel belt | No | — | 4-61 | 4-19 | 4-10 | ||||
| KVV22、KYJV22、KYJY23、 KVVP2-22、KYJVP2-22、 KYJYP2-23 | None or copper tape | Steel belt | No | — | 7-61 | 4-61 | 4-19 | 4-10 | |||
| KVV32、KYJV32、KYJY33 | None | Steel Wire | No | — | 19-61 | 7-61 | 4-19 | 4-10 | |||
| KVVR | None | None | Yes | 2-16 | — | — | — | ||||
| KVVRP | Copper wire | None | Yes | 2-61 | 2-48 | — | — | — | |||
Expand all
Only some product parameters are displayed. For more product information, please contact us.
The above parameters are for reference only.
Cable Structure

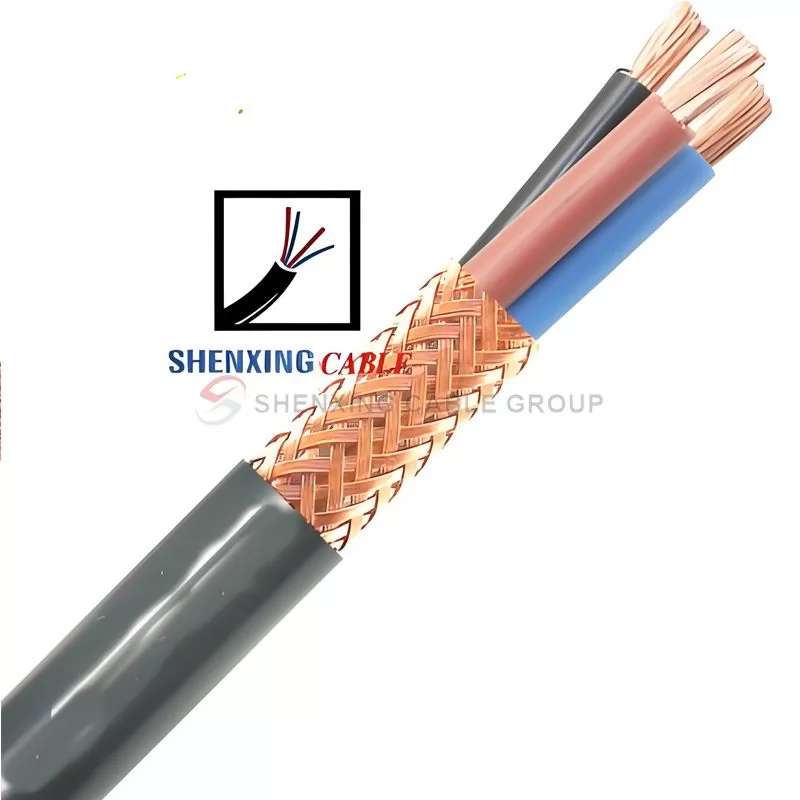

WDZA-KVVRP Cable
Features
Usage characteristics
The maximum rated operating temperature of the conductor is 90℃
The maximum short-circuit temperature of the conductor shall not exceed 250℃
The maximum time shall not exceed 5 seconds
The installation and laying temperature of the cable shall not be lower than 0℃
The laying temperature in the air shall be 40℃
The laying temperature in the soil shall be 25℃.
Minimum bending radius (D is the outer diameter of the cable)
Single-core cable: 20(D+d) ±5%
Multi-core cable: 15(D+d) ±5%
