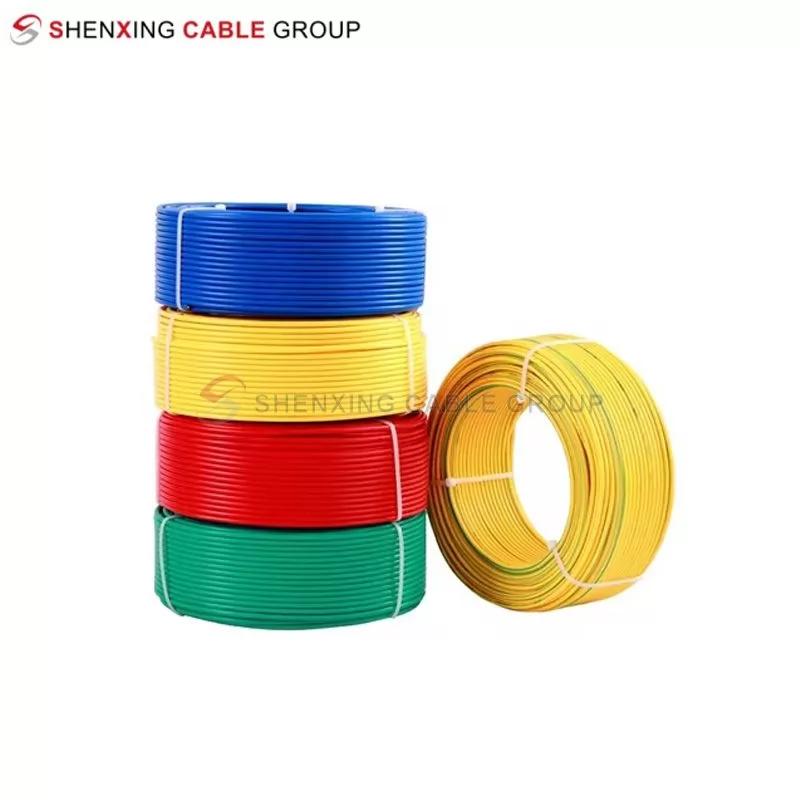

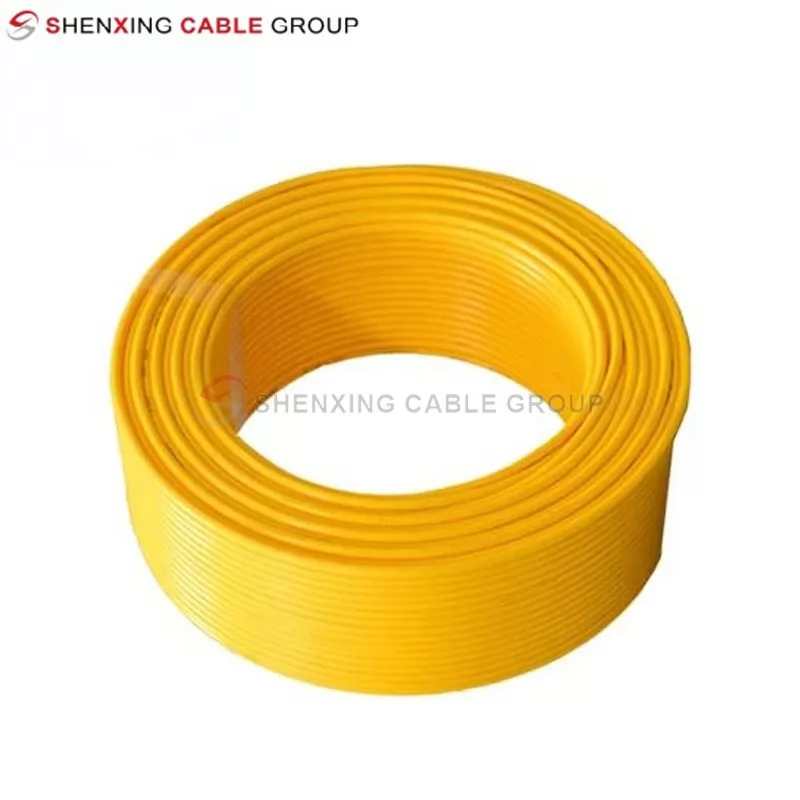

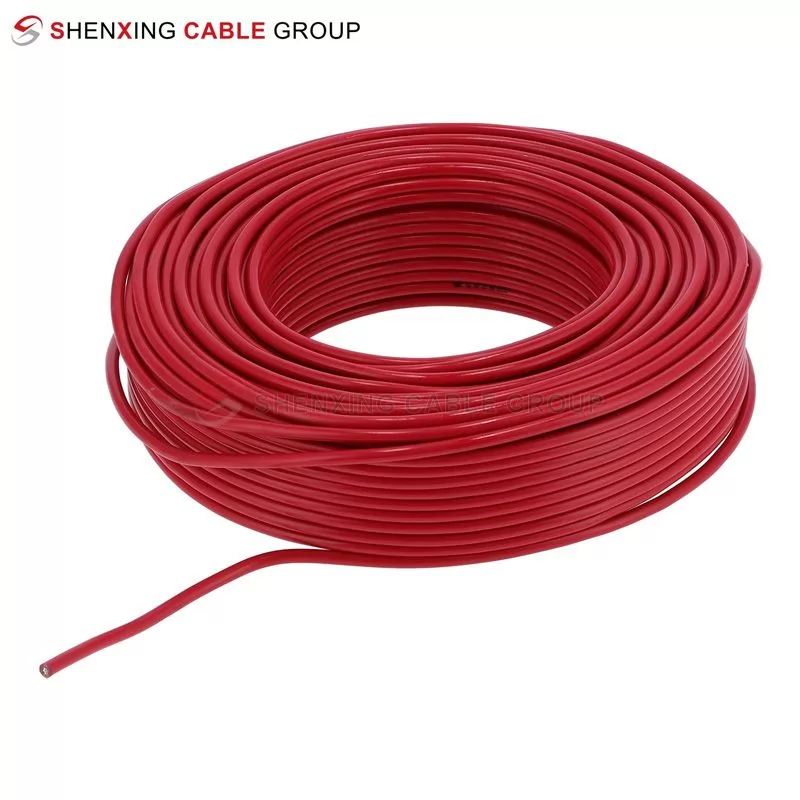

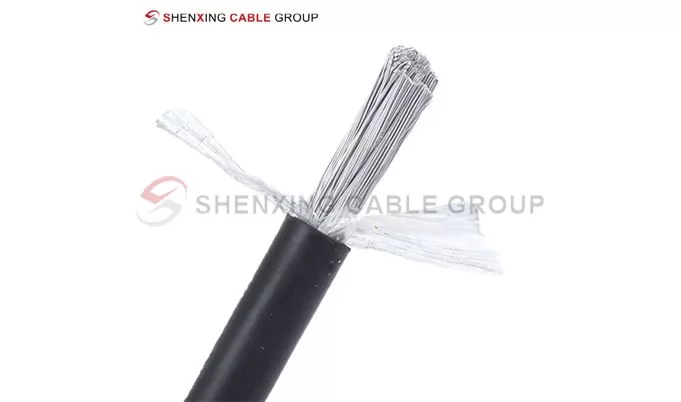

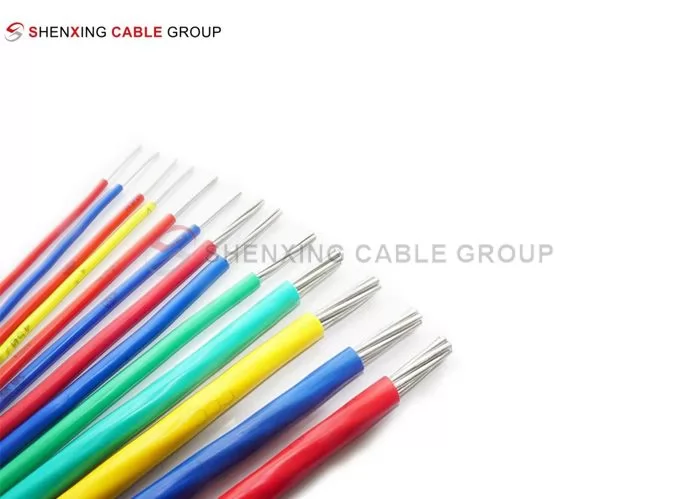

WDZN-BLVV Cable
BLVV cable is an aluminum core PVC insulated, PVC sheathed flame retardant cable specially designed for power systems requiring high safety and reliability. This cable has low smoke, halogen-free, flame retardant properties, ensuring additional protection in emergency situations such as fire. Its lightweight aluminum conductor and high-quality PVC material make it an ideal choice for a variety of power transmission applications.
Share:
Application areas
BLVV cables are suitable for a variety of places, especially in environments that require high safety standards and flame retardant properties. Its wide application areas include:
Residential buildings: indoor power wiring, lighting systems, home appliance connections.
Industrial facilities: power systems in factories, warehouses and production lines.
Commercial spaces: power wiring in places such as offices, shopping malls and hotels.
Public facilities: places that require excellent flame retardant properties such as hospitals, schools, subway stations and airports.
Material properties
Conductor material

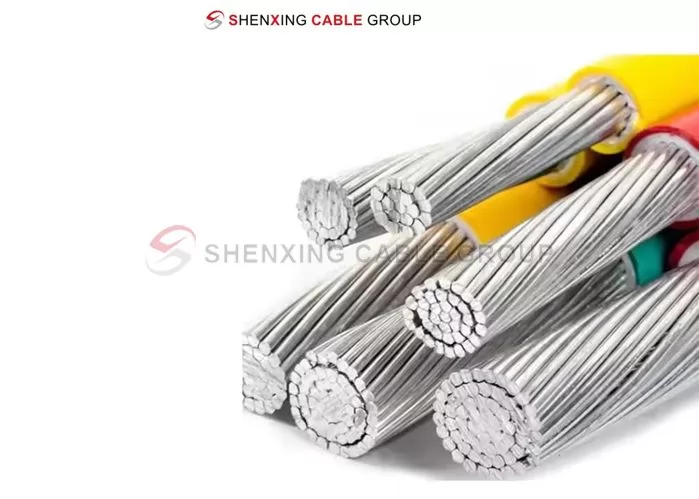

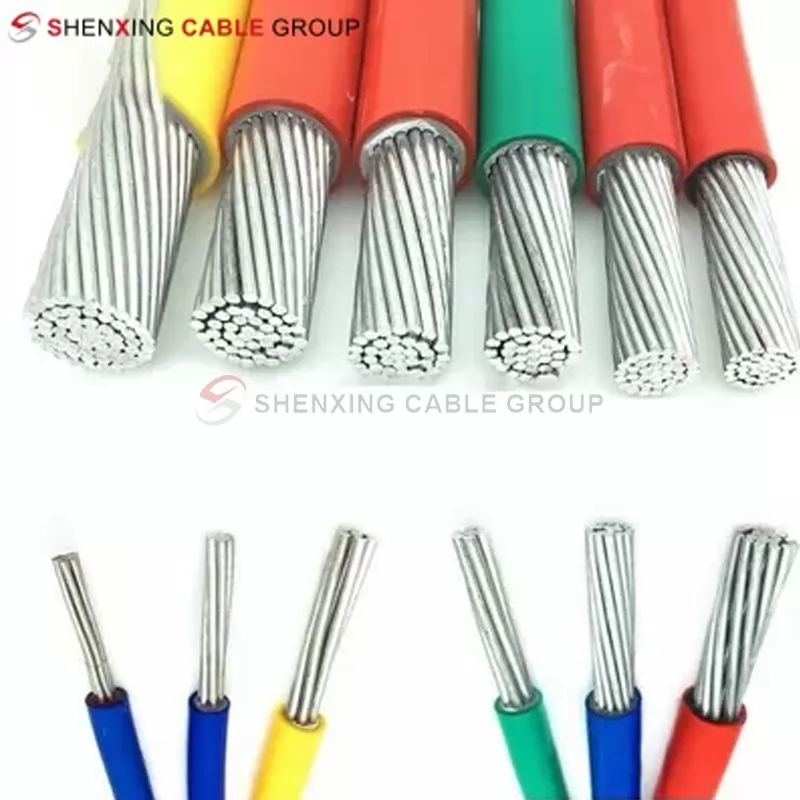

High-purity aluminum core: Made of high-quality aluminum, it is light, cost-effective, and has good conductivity. Aluminum core cables are commonly used in medium and low voltage power systems to provide stable current transmission.
Corrosion-resistant treatment: The surface of the conductor is treated with an anti-corrosion coating to increase durability and oxidation resistance.
Insulation material
Polyvinyl chloride (PVC) insulation layer: It has excellent electrical insulation properties, can effectively prevent current leakage, and provide strong protection against chemical corrosion and environmental factors.
Low smoke and halogen-free properties: It releases less smoke during combustion and does not release toxic gases, which meets environmental protection and safety requirements.
Sheath material
PVC sheath layer: High wear resistance and mechanical strength, enhances the cable's anti-collision and anti-stretching properties, and extends the service life of the cable.
Flame retardant function: Both the cable sheath and insulation layer meet flame retardant standards, can extinguish the flame by themselves in a fire, and reduce the risk of fire spread.
Cable Structure
WDZN-BLV V Cable
Features
Material properties
High conductivity: Aluminum conductors provide good electrical conductivity while maintaining the lightweight characteristics of the cable.
High and low temperature resistance: Can be used for a long time in an environment of -15℃ to 70℃.
Flame retardancy: Flame retardant properties that meet international standards to ensure safety in fire environments.
Low smoke and halogen-free: Meets environmental protection standards and does not release toxic and harmful substances.
Specifications
Rated voltage: 300/500V
Conductor: high-purity aluminum conductor
Insulation material: polyvinyl chloride (PVC)
Sheath material: polyvinyl chloride (PVC)
Operating temperature: -15℃ to 70℃
Structural type: optional fixed and mobile, to meet different installation requirements

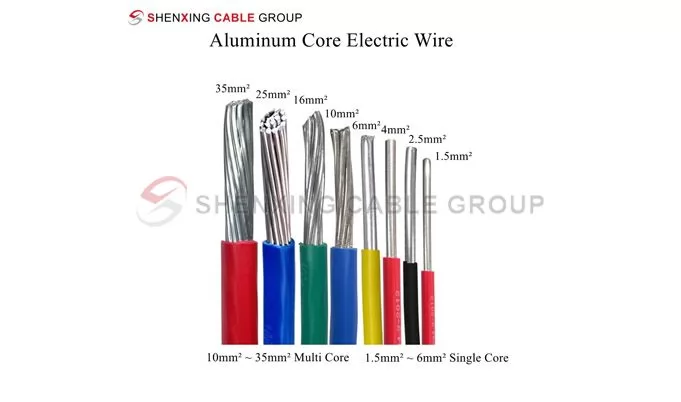

Appearance specifications: provide a variety of wire diameters and core number options, such as 1x2.5mm², 3x4mm², 4x6mm², etc.
Production
Production Equipment
Projects
COMMON QUESTIONS
SHENXING Cable Service FAQs
Want to learn more? Check out our electrical cable most frequently asked questions.
What places are ZR-BLVV cables suitable for?
ZR-BLVV cables are widely used in buildings and industrial places that require high safety and flame retardant performance, such as residences, offices, schools, hospitals, commercial buildings and industrial facilities. It is especially suitable for indoor power wiring systems that need to run for a long time.
What is the conductor material of ZR-BLVV cable?
ZR-BLVV cable uses high-purity aluminum as a conductor. Aluminum is lightweight, economical and has good conductivity, suitable for various medium and low voltage power transmission needs.
What are the insulation and sheath materials of ZR-BLVV cable?
The insulation and sheath materials of this cable are both polyvinyl chloride (PVC). PVC provides excellent electrical insulation, abrasion resistance and chemical corrosion resistance, ensuring stable operation of the cable in a variety of environments.
Does ZR-BLVV cable meet flame retardant standards?
Yes, ZR-BLVV cable has excellent flame retardant properties and meets international and domestic flame retardant standards. It can effectively reduce the spread of fire and improve safety when a fire occurs.
What is the operating temperature range of ZR-BLVV cable?
The operating temperature range of ZR-BLVV cable is -15℃ to 70℃. The cable can still operate stably at higher or lower ambient temperatures, but additional protection measures should be taken under extreme conditions.
Is ZR-BLVV cable environmentally friendly?
Yes, ZR-BLVV cable adopts low-smoke halogen-free material, releases very little smoke when burning, does not contain harmful gases, meets environmental protection and safety standards, and is suitable for environments where toxic smoke emissions need to be reduced.
What are the specifications of ZR-BLVV cable?
ZR-BLVV cable is available in a variety of specifications and sizes, including different conductor cross-sectional areas and core counts, such as 1x2.5mm², 3x4mm², 4x6mm², etc. Choosing the right specification depends on the specific application needs and power transmission requirements.
What are the main advantages of ZR-BLVV cable?
ZR-BLVV cable has the following advantages:
High safety: Flame retardant design can reduce the spread of fire in the event of a fire.
Environmental protection: Low smoke and halogen-free characteristics, no harmful smoke is released.
Durability: High-quality PVC materials provide good wear and aging resistance.
Economical: Aluminum conductors are low-cost and provide efficient power transmission.
How to choose a suitable ZR-BLVV cable model?
When choosing a ZR-BLVV cable model, it should be determined based on power demand, installation environment, and the location where the cable is used. Check the rated voltage, conductor cross-section, number of cores, and cable length to ensure that the needs of power transmission are met.
What are the maintenance and care methods for ZR-BLVV cables?
The maintenance of ZR-BLVV cables is relatively simple, mainly including regular inspection of the cable surface for damage or cracks. Avoid running the cable for a long time in a high temperature environment, ensure that the cable is not chemically corroded or mechanically damaged, and regularly clean the cable surface to prevent dust and dirt from affecting its insulation performance.
