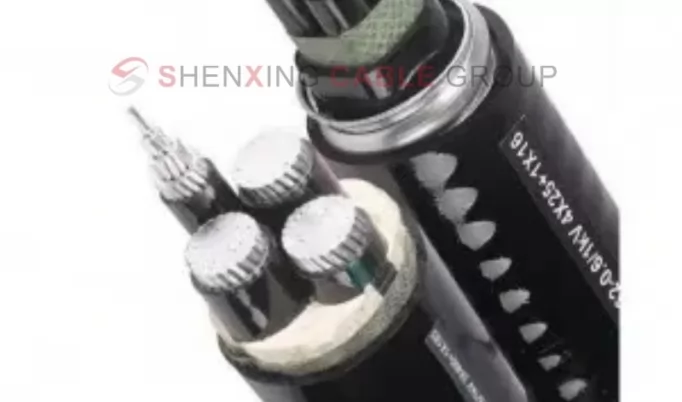

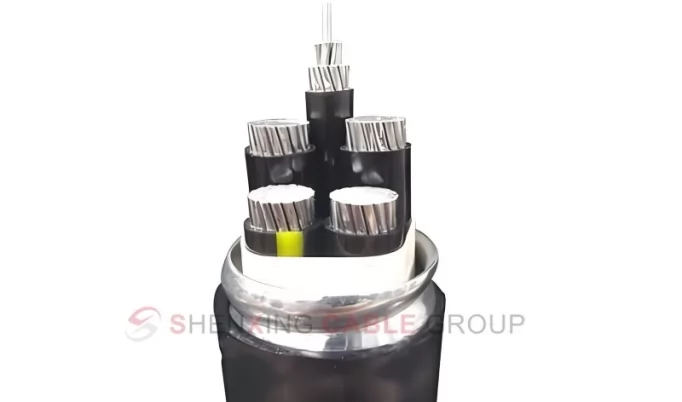

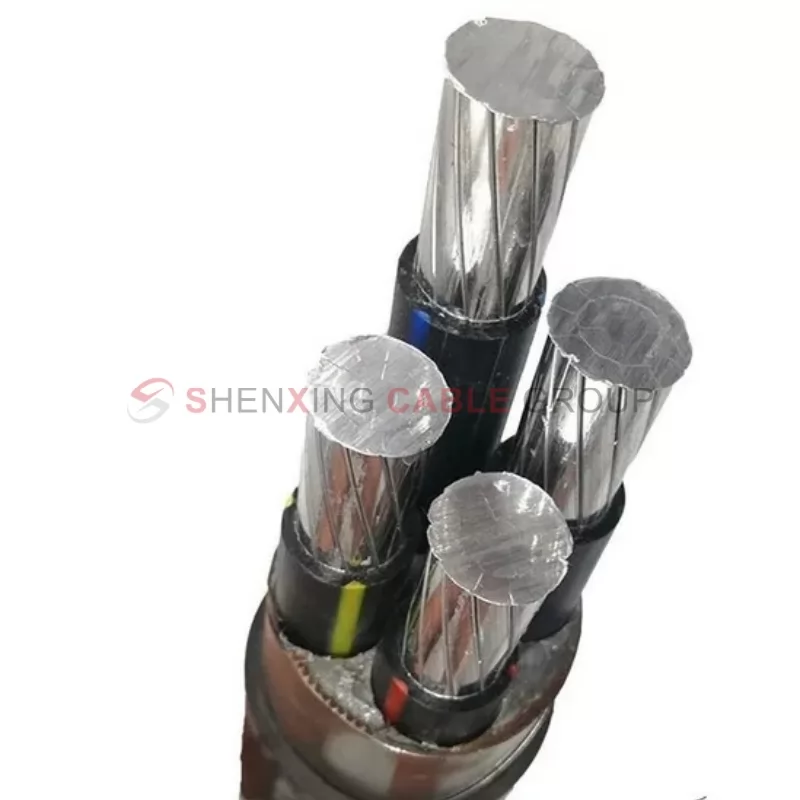

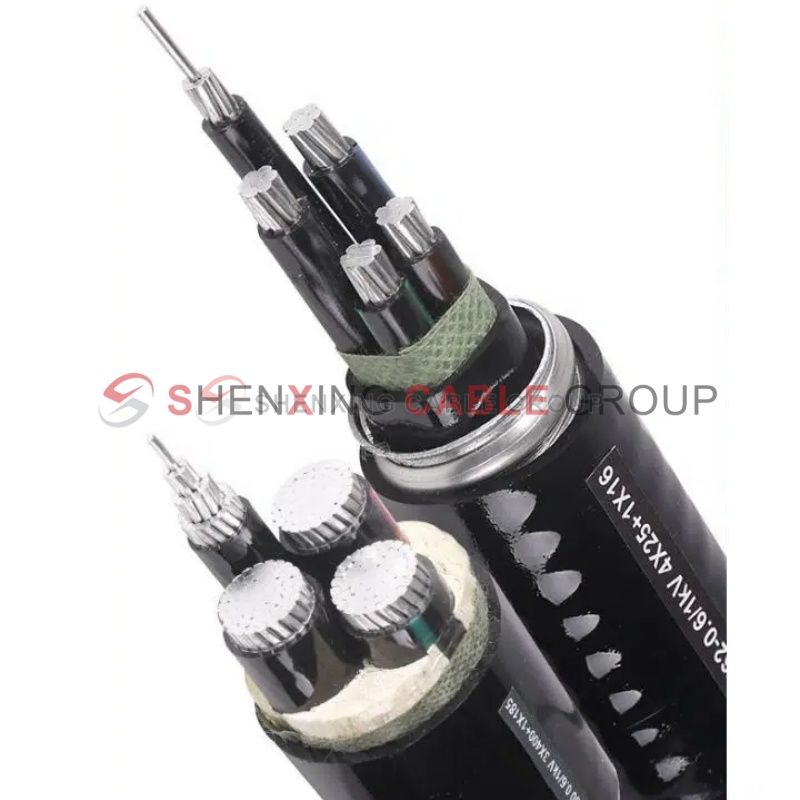

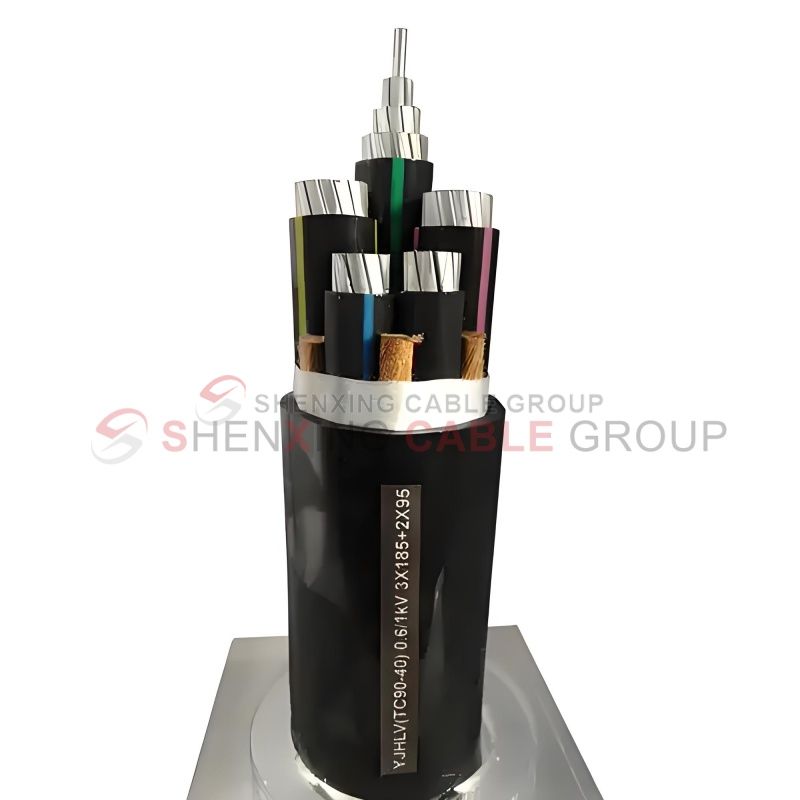

Medium Voltage (1/35KV) Power Cable – YJHLV22 | High-Performance Aluminum XLPE Cable with Steel Tape Armor

YJHLV22 adopts an aluminum alloy core conductor, a cross-linked polyethylene (XLPE) insulation layer, and a polyvinyl chloride (PVC) sheath. It complies with the relevant provisions of the International Electrotechnical Commission (IEC) and the Chinese National Standard (GB). Specifically, its design and manufacturing follow the IEC 60502-2 and GB/T 12706.1-2002 standards, ensuring the cable achieves internationally recognized levels of electrical performance, mechanical durability, and environmental adaptability. In addition, the product has obtained CE and UL certifications, affirming its quality and suitability for global applications.

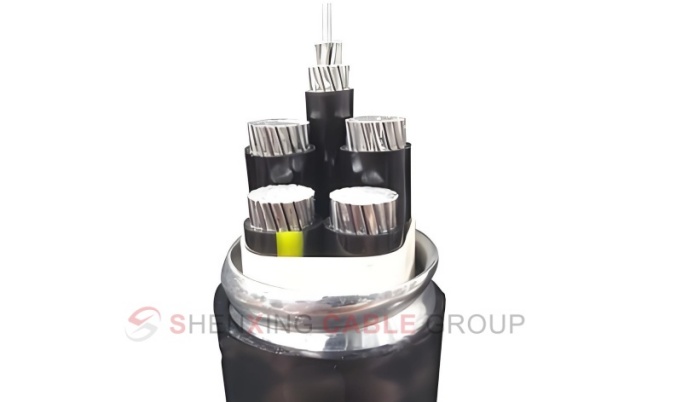

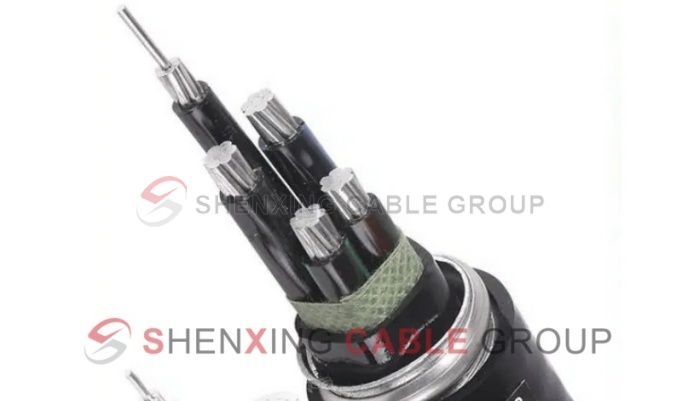

Medium voltage, aluminum alloy conductor, xlpe insulation, PVC sheath, steel tape armor, power cable

Application areas:

Industrial power distribution system: including power supply systems for factories, workshops and large machinery and equipment.

Urban and regional power grids: such as substations, distribution networks and power supply for urban infrastructure.

Commercial and public buildings: including internal power distribution systems in office buildings, shopping malls, hospitals, schools and other places.

Special environment applications: high-tech parks, industrial parks and other areas with high requirements for mechanical protection.

Medium voltage, aluminum alloy conductor, xlpe insulation, PVC sheath, steel tape armor, power cable

Product structure：

YJHLV22 cable adopts a multi-layer structure design, and its main components include:

Conductor layer: Aluminum alloy material is used, which takes into account both conductivity and light weight.

Insulation layer: Cross-linked polyethylene (XLPE) material is used to ensure the stability of the cable in high temperature environment and long-term operation safety.

Sheath layer: Polyvinyl chloride (PVC) material is used to provide wear resistance, oil resistance and chemical protection for the cable.

Armor layer: Equipped with steel belt armor, it increases mechanical protection, improves the ability to resist external impact, and ensures that it is not damaged during construction and operation.

Technical Data

Number of Cores	Conductor Diameter	Conductor Diameter	Insulation Thickness	Resistance	Current Carrying Capacity	Sheath Thickness	Armor Thickness	Cable Outer Diameter	Weight
Number of Cores	(mm)	(mm²)	(mm)	(ω/km)	(A)	(mm)	(mm)	(mm)	(kg/km)
Single Core	2.3	4	0.7	7.41	61/44
	2.8	6	0.7	4.61	79/57
	3.6	10	0.7	3.08	100/75
	4.5	16	0.7	1.91	135/99
	6	25	0.9	1.2	170/125
	7	35	0.9	0.868	205/155
	8.3	50	1	0.641	245/190
	9.8	70	1.1	0.443	305/240
	11.5	95	1.1	0.32	370/290
	12.9	120	1.2	0.253	420/340
	14.5	150	1.4	0.206	475/390
	16	185	1.6	0.164	540/450
	18.3	240	1.7	0.125	630/535
	20.5	300	1.8	0.1	710/615
Two Cores	1.8	2.5	0.7	12.1	32/25	1.8	0.2x2	12.6	188
	2.3	4	0.7	7.41	45/32	1.8	0.2x2	13.5	216
	2.8	6	0.7	4.61	50/42	1.8	0.2x2	14.5	250
	3.6	10	0.7	3.08	70/55	1.8	0.2x2	17.1	319
	4.5	16	0.7	1.91	90/75	1.8	0.2x2	19.2	399
	6	25	0.9	1.2	120/100	1.8	0.2x2	22.6	541
	7	35	0.9	0.868	140/130	1.8	0.2X2	24.9	652
	8.3	50	1	0.641	160/150	1.8	0.5x2	28	807
	9.8	70	1.1	0.443	200/190	1.9	0.5x2	32.5	709
	11.5	95	1.1	0.32	230/240	2	0.5x2	38	1685
	12.9	120	1.2	0.253	260/290	2.1	0.5x2	41.8	2001
	14.5	150	1.4	0.206	300/330	2.2	0.5x2	46.1	2385
	16	185	1.6	0.164	340/370	2.3	0.5x2	50.9	2828
	18.3	240	1.7	0.125	400/440	2.5	0.5x2	56.9	3483
	20.5	300	1.8	0.1	510/560	2.7	0.5x2	62	5101
Three Cores	1.8	2.5	0.7	12.1	27/20	1.8	0.2x2	13.1	208
	2.3	4	0.7	7.41	36/27	1.8	0.2x2	14	242
	2.8	6	0.7	4.61	46/35	1.8	0.2x2	15.2	284
	3.6	10	0.7	3.08	59/47	1.8	0.2x2	17.9	369
	4.5	16	0.7	1.91	80/64	1.8	0.2x2	20.2	469
	6	25	0.9	1.2	100/82	1.8	0.2x2	23.9	646
	7	35	0.9	0.868	120/100	1.8	0.2X2	26.4	788
	8.3	50	1	0.641	145/125	1.8	0.5x2	29.7	985
	9.8	70	1.1	0.443	175/155	2	0.5x2	36.2	1655
	11.5	95	1.1	0.32	210/200	2	0.5x2	40.5	2053
	12.9	120	1.2	0.253	245/220	2.1	0.5x2	44.6	2454
	14.5	150	1.4	0.206	270/250	2.3	0.5x2	49.2	2937
	16	185	1.6	0.164	305/295	2.4	0.5x2	54.3	3507
	18.3	240	1.7	0.125	355/345	2.6	0.5x2	60.8	4349
	20.5	300	1.8	0.1	400/395	2.7	0.5x2	66.8	5225
Four Cores	1.8	2.5	0.7	12.1	27/20
	2.3	4	0.7	7.41	36/27	1.8	0.2x2	15	278
	2.8	6	0.7	4.61	46/35	1.8	0.2x2	16.3	329
	3.6	10	0.7	3.08	59/47	1.8	0.2x2	19.4	434
	4.5	16	0.7	1.91	80/64	1.8	0.2x2	21.9	557
	6	25	0.9	1.2	100/82	1.8	0.2x2	26.1	779
	7	35	0.9	0.868	120/100	1.8	0.2x2	28.9	957
	8.3	50	1	0.641	145/125	1.8	0.5X2	34.8	1561
	9.8	70	1.1	0.443	175/155	1.9	0.5x2	39.8	2012
	11.5	95	1.1	0.32	210/200	2	0.5x2	44.6	2510
	12.9	120	1.2	0.253	245/220	2.1	0.5x2	49.4	3035
	14.5	150	1.4	0.206	270/250	2.3	0.5x2	54.3	3618
	16	185	1.6	0.164	305/295	2.4	0.5x2	60.2	4365
	18.3	240	1.7	0.125	355/345	2.6	0.5x2	67.2	5401
	20.5	300	1.8	0.1	400/395	2.8	0.5x2	74.2	6541
Five Cores	1.8	2.5	0.8	12.1	27/20
	2.3	4	1	7.41	36/27	1.8	0.2x2	16	316
	2.8	6	1	4.61	46/35	1.8	0.2x2	17.4	377
	3.6	10	1	3.08	59/47	1.8	0.2x2	20.9	519
	4.5	16	1	1.91	80/64	1.8	0.2x2	23.8	671
	6	25	1.2	1.2	100/82	1.8	0.2x2	28.4	944
	7	35	1.2	0.868	120/100	2	0.5x2	32.5	1201
	8.3	50	1.4	0.641	145/125	2.1	0.5x2	38	1929
	9.8	70	1.4	0.443	175/155	2.2	0.5x2	43.6	2487
	11.5	95	1.6	0.32	210/200	2.4	0.5x2	49.2	3127
	12.9	120	1.6	0.253	245/220	2.5	0.5x2	54.2	3753
	14.5	150	1.8	0.206	270/250	2.7	0.5x2	59.9	4500
	16	185	2	0.164	305/295	2.9	0.5x2	66.5	5427
	18.3	240	2.2	0.125	355/345	3.1	0.5x2	74.5	6747
	20.5	300	2.4	0.1	400/395	3.3	0.5x2	82	8123

Expand all

Only some product parameters are displayed. For more product information, please contact us.

The above parameters are for reference only.

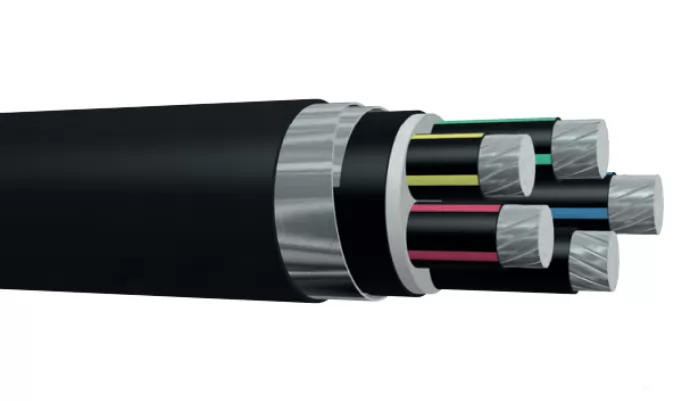

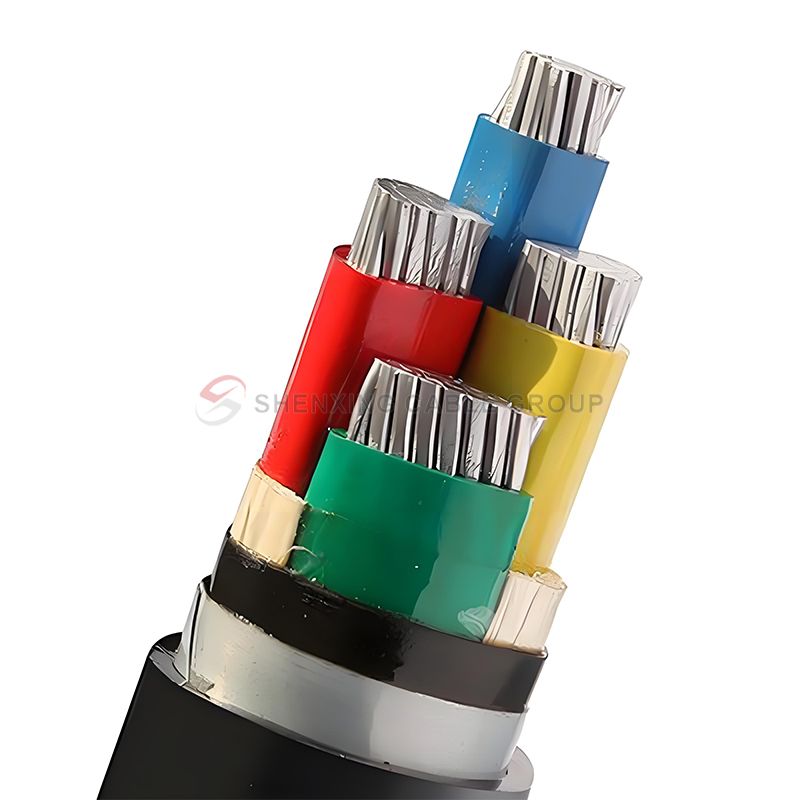

Cable Structure

Medium voltage, aluminum alloy conductor, xlpe insulation, PVC sheath, steel tape armor, power cable

Features

Product Features：

Excellent electrical performance: cross-linked polyethylene insulation, excellent heat resistance, aging resistance and excellent dielectric properties; multi-layer shielding design effectively reduces electromagnetic interference.

Lightweight and corrosion-resistant conductor: Aluminum alloy conductor not only has good conductivity, but also reduces the weight of the product, suitable for various installation environments, and has excellent corrosion resistance.

Reliable physical protection: PVC sheath provides excellent chemical corrosion resistance and anti-aging protection; steel belt armor enhances the mechanical strength and external impact resistance of the cable, suitable for complex working conditions and harsh environments.

Environmental protection and safety: All materials meet international environmental standards, with low smoke, halogen-free and flame retardant properties, providing strong guarantee for safe operation.

Features

Experimental performance：

Rated voltage: Uo/U3.6/6, 6/6, 6/10, 8.7/10, 8.7/15, 12/20, 18/20, 18/30, 21/35, 26/35 kV

Maximum operating temperature: 90℃

Maximum conductor temperature during short circuit: 250℃ (≤5 seconds)

Laying temperature: ≥0℃

Tensile strength: ≥12.5 N/mm²

Cable bending radius:

Single core: 20D±5%

Three cores without armor: 15D±5%

Three cores with armor: 12D±5%

Production

Production Equipment

Cantilever Single Twister

Finished Cables

Fork Type Stranding Machine

Frame Type Stranding Machine

Plastic Extruder

Wire Braiding Machine

Wire Storage Device

Experimental Equipment

Projects

Cable Application for Offshore Wind Farms

An international energy giant constructed a large offshore wind farm in the North Sea region. Due to the harsh sea conditions, strong winds, high waves, and severe salt fog corrosion in the North Sea, extremely high requirements were placed on the performance of the cables. Read More

Intelligent Gold Mine Data Transmission Cable Solution

An intelligent gold mine is committed to achieving real-time monitoring and control of the production process through a highly automated control system to improve production efficiency and safety. Read More

Power Cables Help Upgrade Smart Grids

In order to realize intelligent management of the power grid, improve power supply reliability and reduce energy loss, a coastal city decided to comprehensively upgrade the original power grid. Read More

Case Study on Optimization of Mobile Equipment Cable Solution in Open-Pit Mine Project Background

The mobile equipment cables in an open-pit coal mine are often damaged due to frequent bending, dragging, and rolling, resulting in frequent equipment shutdowns, which seriously affects production efficiency. Read More

Automobile Production Line Automation Transformation

Shenxing Cable Helps Automakers Achieve a 20% Increase in Production Efficiency Read More

Shenxing Cable: Laying the Foundation for Smart Highways

In order to achieve intelligent management and improve traffic efficiency and safety, a certain highway decided to build a complete intelligent transportation system. Read More

COMMON QUESTIONS

SHENXING Cable Service FAQs

Want to learn more? Check out our electrical cable most frequently asked questions.

What scenarios is this cable suitable for?

This aluminum core XLPE insulated steel tape armored PVC sheathed power cable is suitable for underground laying, building power transmission, industrial equipment power distribution, and power transmission systems. Due to its steel tape armor design, it can resist mechanical stress, making it particularly suitable for environments that require high-strength protection, such as construction sites, underground laying, or humid environments.

What are the advantages of XLPE insulation?

XLPE (cross-linked polyethylene) insulation has excellent electrical properties and heat resistance, and can withstand operating temperatures up to 90°C, and instantaneous heat resistance temperatures can reach 250°C. In addition, XLPE has excellent anti-aging, chemical corrosion resistance, and moisture resistance, which extends the service life of the cable.

What is the role of steel tape armor in the cable?

Steel tape armor provides additional mechanical protection to prevent the cable from being damaged by external mechanical damage during transportation, installation, or use. This armor design makes the cable particularly suitable for laying in environments where it may be subject to impact, pressure, or external damage, such as underground or inside walls.

What is the role of the PVC sheath?

The PVC (polyvinyl chloride) sheath provides outer protection for the cable and has good wear resistance, moisture resistance and chemical corrosion resistance. It helps the cable resist moisture, acid and alkali and other corrosive substances in harsh environments, thereby ensuring the long-term stable operation of the cable.

What are the advantages of aluminum core cable compared with copper core cable?

Aluminum core cable has the following advantages over copper core cable:

Lighter weight: The density of aluminum is about one-third of that of copper, which reduces the overall weight of the cable and facilitates installation and transportation.

Lower cost: The cost of aluminum is low, which can effectively reduce the project budget.

Better conductivity: Although the conductivity of aluminum is not as good as copper, the same current carrying capacity can be achieved through proper design. Aluminum core cable is very suitable for use in scenarios that do not require extremely high conductivity but have requirements for cost and weight.

Can this cable be used outdoors?

Yes, this cable can be used outdoors. Because its PVC sheath is waterproof and moisture-proof, and the steel belt armor provides good mechanical protection, it is very suitable for outdoor environments, including direct underground laying or exposure to severe weather.

What are the standards and certifications for the cable?

This cable usually complies with international and domestic cable standards such as IEC, GB/T, etc., depending on the manufacturer. In addition, it may also comply with ISO quality management system certification, etc. It is recommended to check whether the cable meets the standards and requirements of your country or region before purchasing.

What are the operating voltage and operating temperature of the cable?

This aluminum core XLPE insulated cable usually supports medium and high voltage power transmission, and the common rated voltage range is 1kV to 35kV. The operating temperature range is usually -15℃ to 90℃, and it can operate normally in hot or cold environments.

What should be paid attention to during installation?

During installation, care should be taken to avoid excessive bending and maintain a suitable bending radius to prevent damage to the internal structure of the cable. In addition, try to avoid external impact or scratches on the cable, and follow the relevant cable laying specifications to ensure safe and stable operation of the cable.

What is the service life of this cable?

Under normal operating conditions, the service life of this cable can reach more than 30 years. Its high temperature resistant and anti-aging XLPE insulation material and PVC sheath design with excellent protective performance greatly extend the service life of the cable. However, the actual service life also depends on the specific use environment and maintenance conditions.
