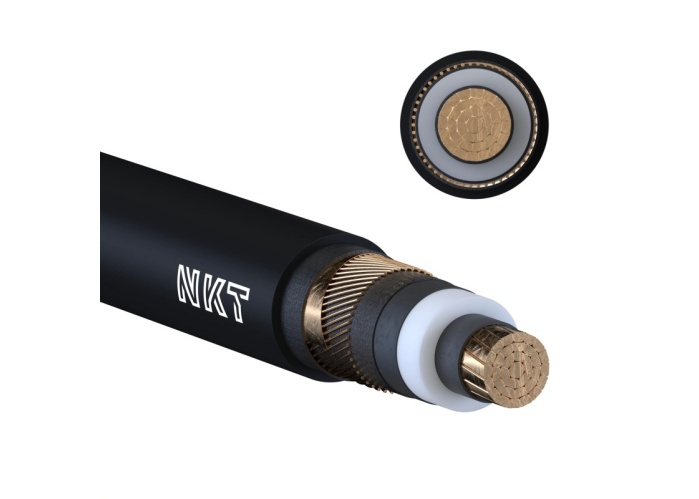

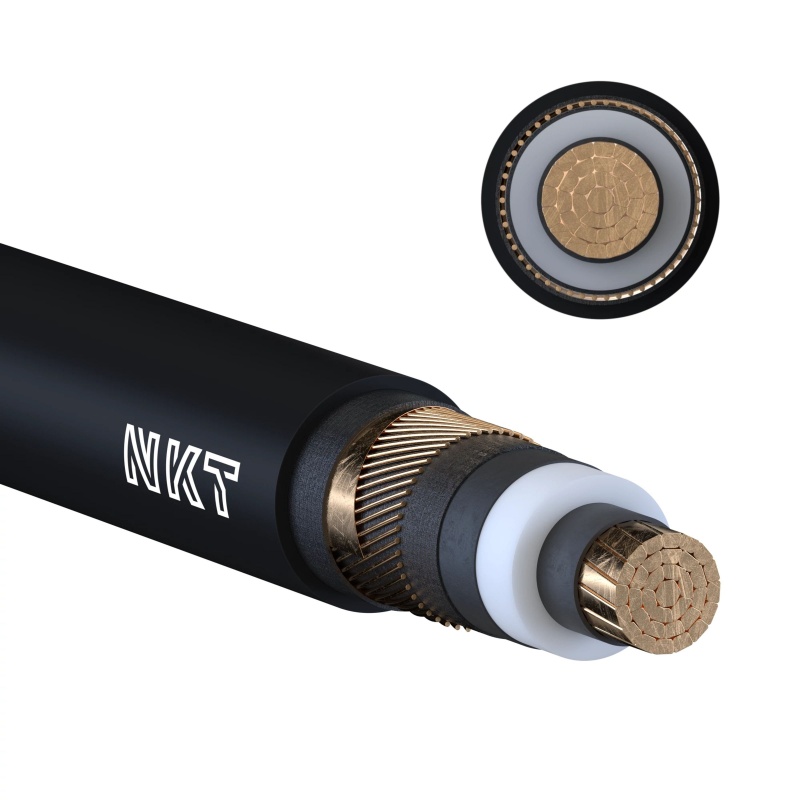

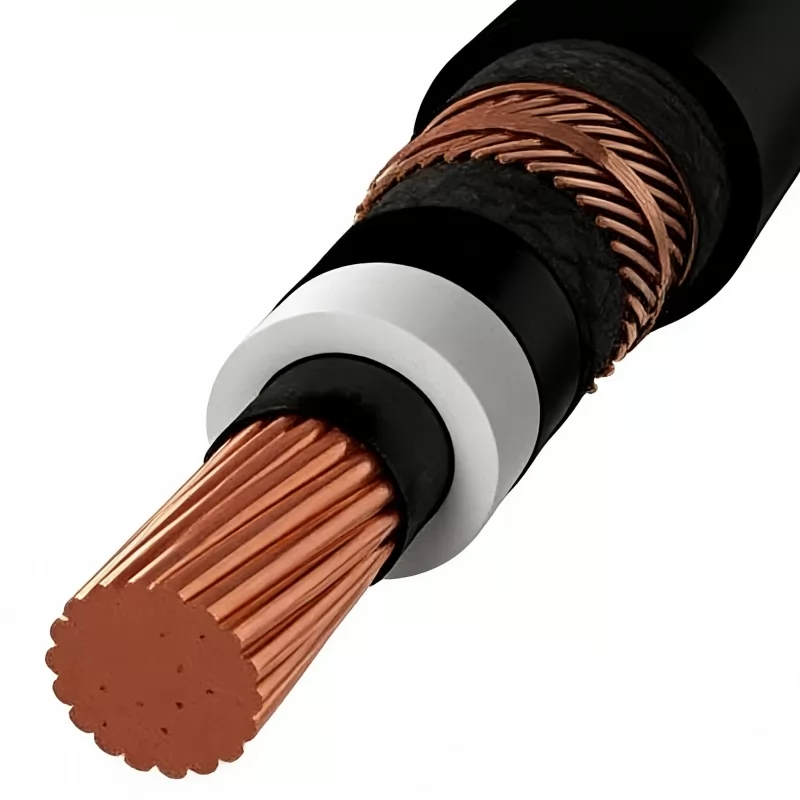

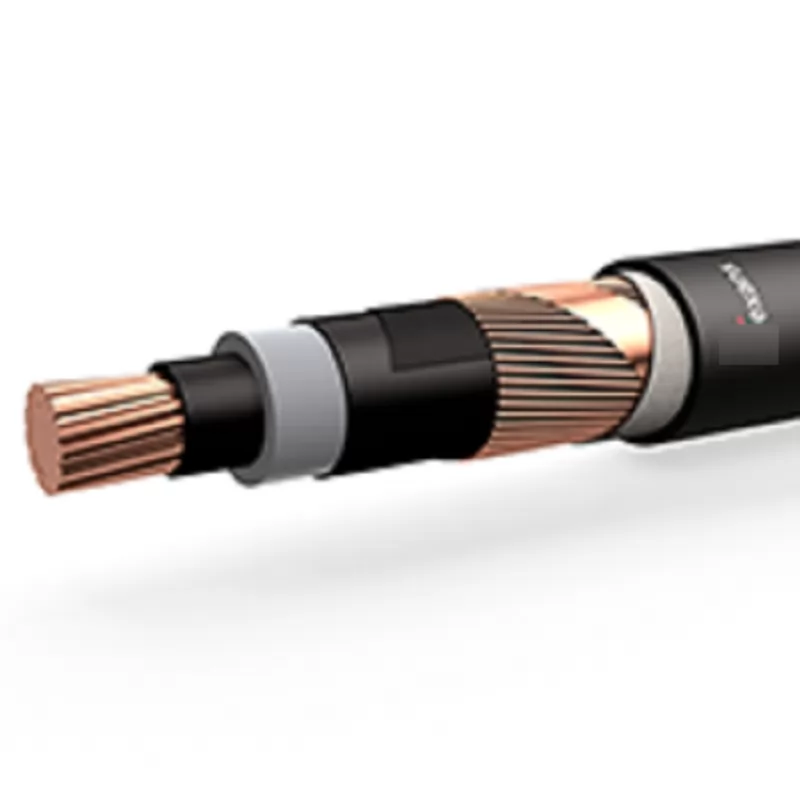

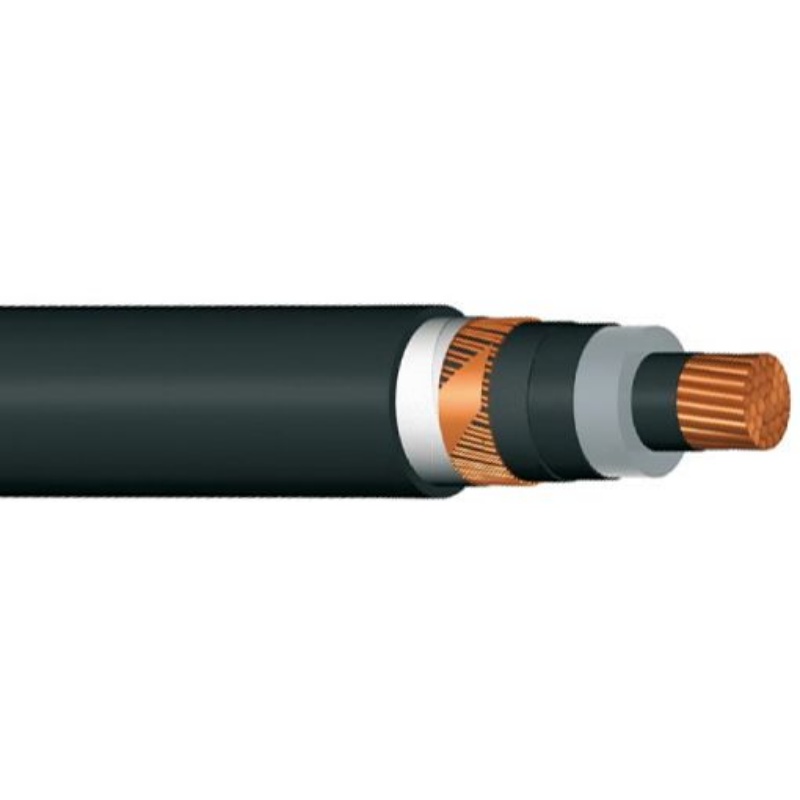

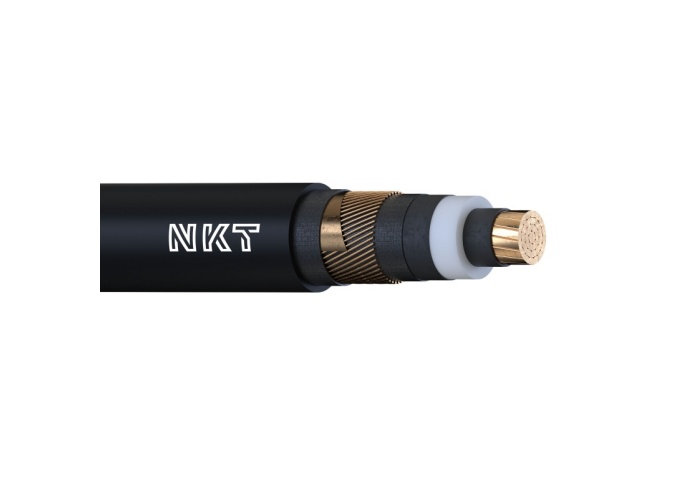

N2XS(F)2Y/N2XS(FL)2Y/N2XS2Y
N: Cable
2X: Cross-linked polyethylene (XLPE) insulation
S: Same shield
2Y: Polyethylene (PE) sheath
F: Longitudinal waterproofing
FL: Longitudinal and transverse waterproofing

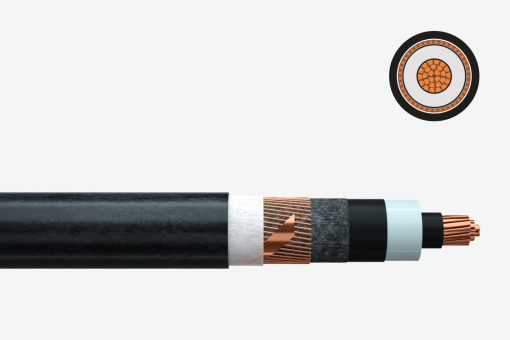

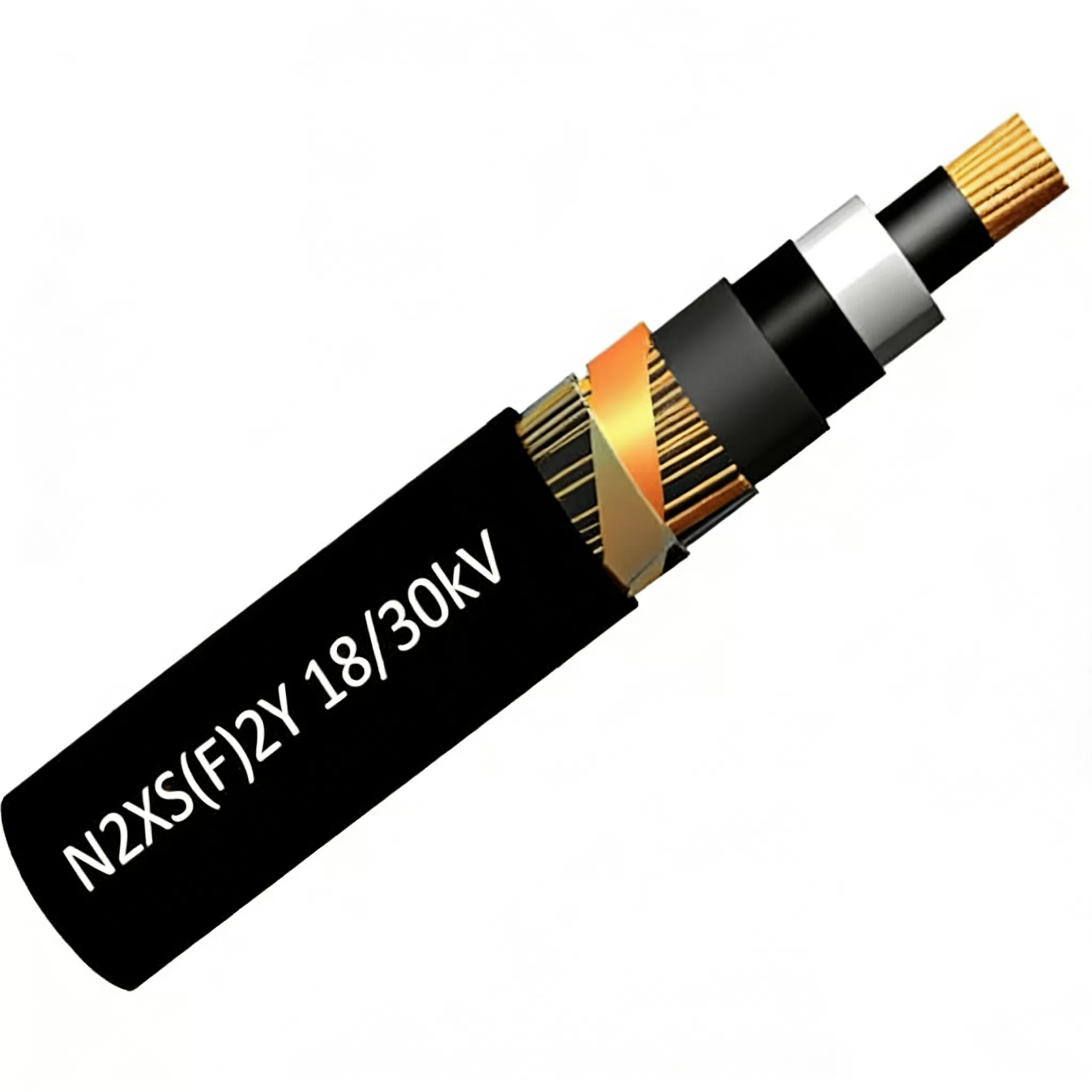

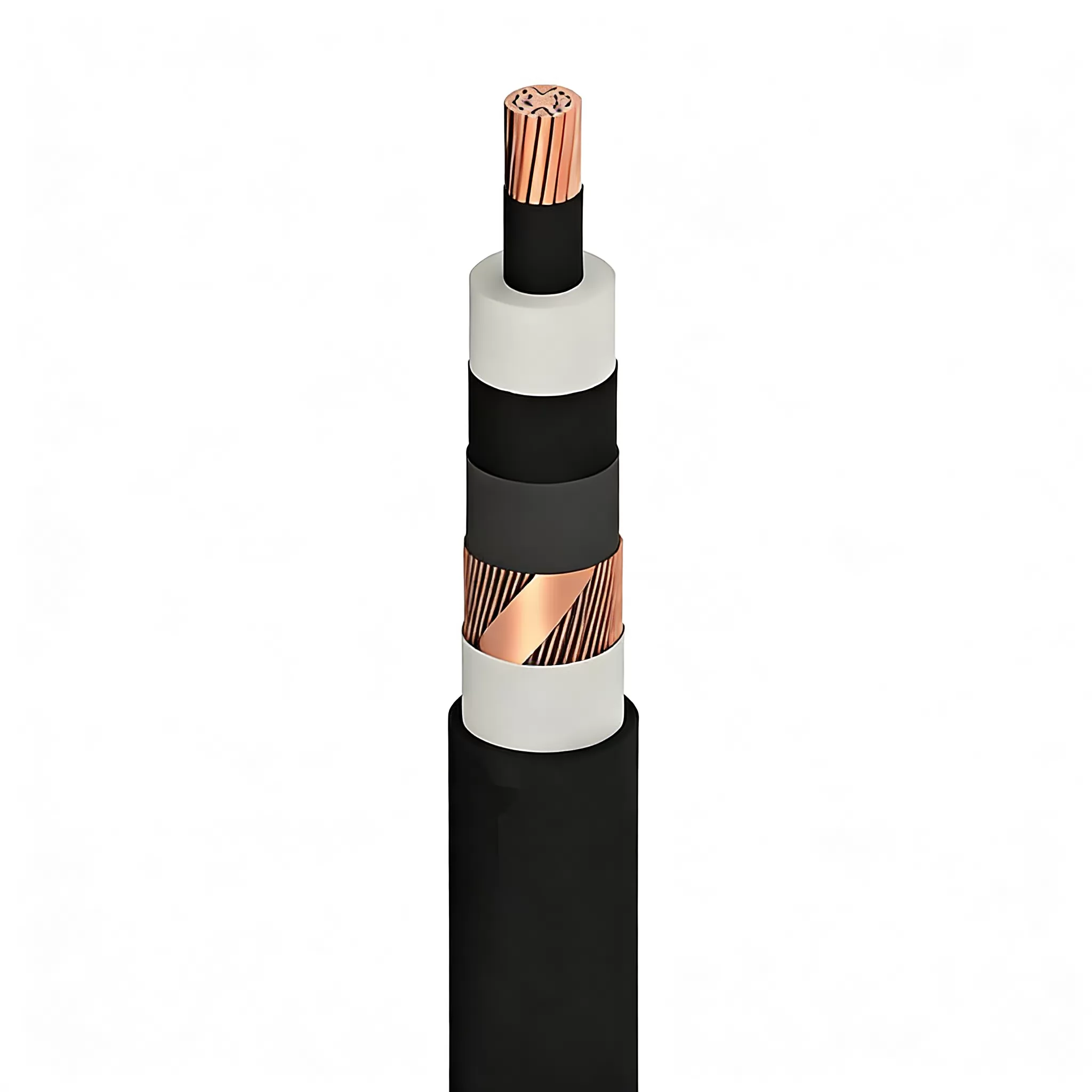

The N2XS2Y / N2XS(F)2Y / N2XS(FL)2Y series are medium-voltage power cables conforming to the VDE German standard. They feature copper conductors, XLPE insulation, copper wire shielding, and a PE sheath, suitable for 6/10kV and above medium-voltage power distribution systems. Depending on different engineering environment requirements, various structural solutions are available, including no waterproofing, radial waterproofing, and longitudinal full waterproofing, meeting the needs of different application scenarios such as pipeline laying, direct underground burial, and damp or high groundwater levels. This series of cables has excellent electrical performance, mechanical strength, and long-term operational stability, and is widely used in industrial power distribution, substations, power infrastructure, and urban energy projects.
Share:
This series of cables is designed and manufactured in strict accordance with IEC 60502-2 and DIN VDE 0276-620 international standards, ensuring that medium-voltage cables meet the highest specifications in terms of electrical performance, mechanical strength and long-term reliability.
Waterproofing options:
N2XS2Y: Standard structure, suitable for environments without waterproofing requirements.
N2XS(F)2Y: Radial waterproofing, suitable for damp environments.
N2XS(FL)2Y: Longitudinal water-blocking, fully waterproof design, suitable for direct burial and areas with high groundwater levels.

Customization & OEM Service
We offer customized medium-voltage cable solutions to meet diverse project needs:
Conductor material: Copper / Aluminum
Conductor cross-section and structure
Rated voltage and insulation thickness
Waterproof structure selection
Outer sheath color and special performance requirements
Can be manufactured according to IEC, GB, BS, or other international standards
OEM and private label services are also supported.

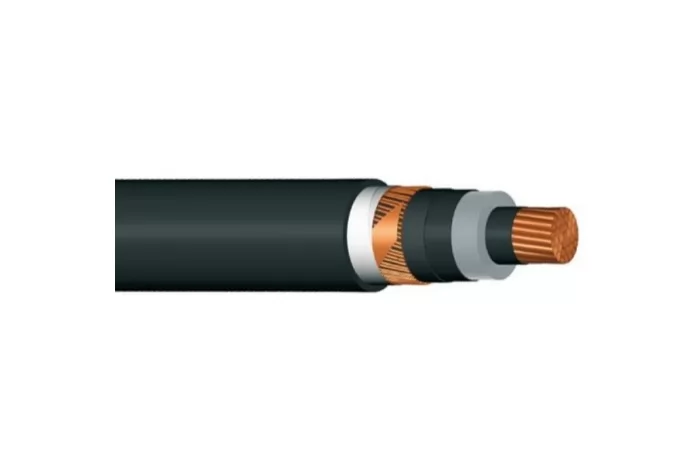

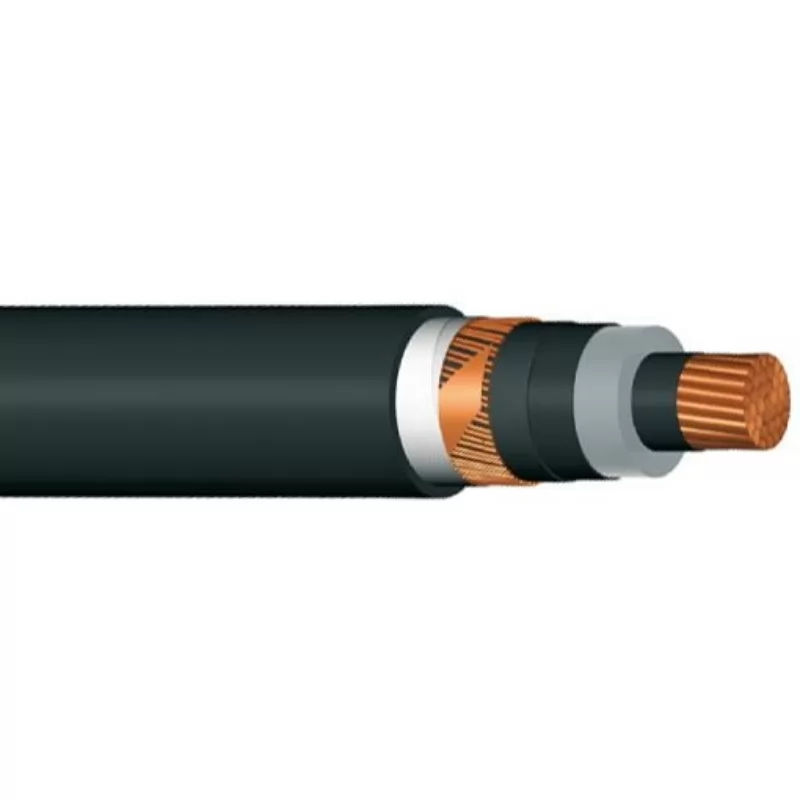

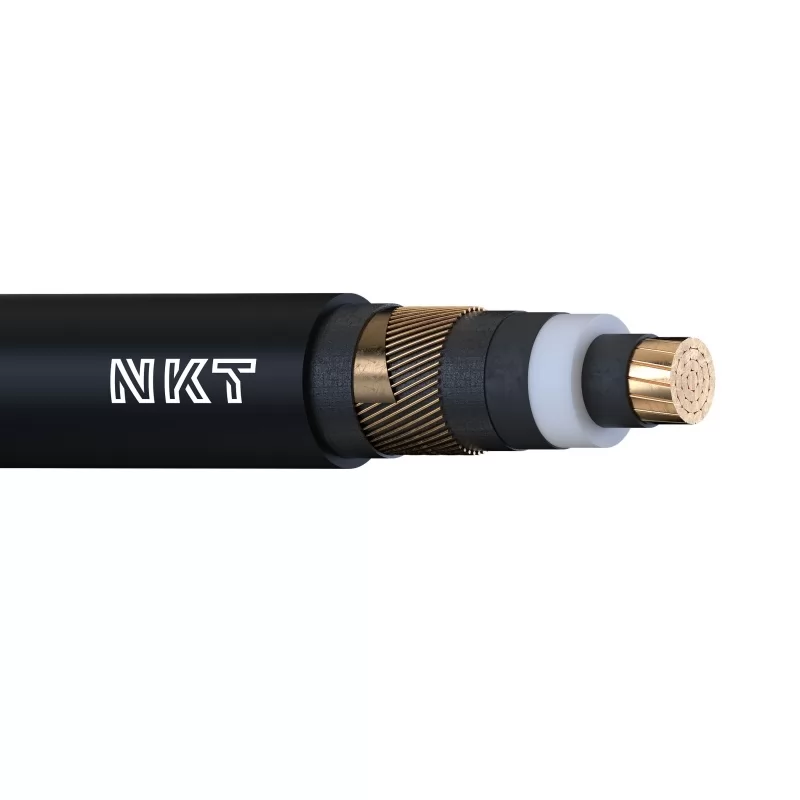

Structural Features:
Copper Conductor: Excellent electrical conductivity and low conductor resistance
Conductor and Insulation Shielding Layer: Optimizes electric field distribution and reduces the risk of partial discharge
XLPE Insulation: Heat-resistant, aging-resistant, and long service life
Copper Wire Metal Shielding: Enhances electrical safety and meets grounding requirements
PE Sheath: Moisture-resistant, chemically resistant, and UV-resistant
Technical Data
| Cross-section | Shape of conductor | Conductor Diameter | Insulation Thickness | Diameter Over Insulation | Sheath thickness | N2XS(F)2Y | N2XS(FL)2Y | N2XS2Y | Test voltage | ||||||
| mm² | / | mm | mm | mm | mm | OD | Bending radius | Weight (kg/km) | OD (mm) | Bending radius (mm) | Weight (kg/km) | OD (mm) | Bending radius (mm) | Weight (kg/km) | KV |
| 6/10kv | |||||||||||||||
| 1x35/16 | RM | 7.2 | 3.4 | 15.3 | 2.5 | / | 24 | 360 | 803 | 21 kV | |||||
| 1x50/16 | RM | 8.2 | 3.4 | 16.3 | 2.5 | 26 | 375 | 928 | 26 | 520 | 1010 | 25 | 375 | 928 | 21 kV |
| 1x70/16 | RM | 9.8 | 3.4 | 17.9 | 2.5 | 26 | 390 | 1155 | 28 | 560 | 1238 | 26 | 390 | 1154 | 21 kV |
| 1x95/16 | RM | 11.3 | 3.4 | 19.4 | 2.5 | 28 | 420 | 1410 | 29 | 580 | 1495 | 28 | 420 | 1410 | 21 kV |
| 1x120/16 | RM | 12.8 | 3.4 | 20.9 | 2.5 | 30 | 450 | 1683 | 31 | 620 | 1773 | 30 | 450 | 1682 | 21 kV |
| 1x150/25 | RM | 14.2 | 3.4 | 22.3 | 2.5 | 31 | 465 | 2052 | 32 | 640 | 2119 | 31 | 465 | 2025 | 21 kV |
| 1x185/25 | RM | 15.8 | 3.4 | 23.9 | 2.5 | 32 | 480 | 2384 | 34 | 680 | 2483 | 32 | 480 | 2383 | 21 kV |
| 1x240/25 | RM | 18.3 | 3.4 | 26.4 | 2.5 | 35 | 525 | 2964 | 36 | 720 | 3073 | 35 | 525 | 2965 | 21 kV |
| 1x300/25 | RM | 20.7 | 3.4 | 28.8 | 2.5 | 37 | 555 | 3624 | 39 | 780 | 3737 | 37 | 555 | 3624 | 21 kV |
| 1x400/35 | RM | 23.3 | 3.4 | 31.4 | 2.5 | 40 | 600 | 4575 | 42 | 840 | 4697 | 40 | 600 | 4574 | 21 kV |
| 1x500/35 | RM | 26.5 | 3.4 | 34.6 | 2.5 | 43 | 645 | 5598 | 44 | 880 | 5729 | 43 | 645 | 5597 | 21 kV |
| 12/20kv | |||||||||||||||
| 1x35/16 | RM | 7.2 | 5.5 | 19.5 | 2.5 | 28 | 420 | 949 | / | 28 | 420 | 948 | 42 kV | ||
| 1x50/16 | RM | 8.2 | 5.5 | 20.5 | 2.5 | 29 | 435 | 1079 | 30 | 600 | 1166 | 29 | 435 | 1078 | 42 kV |
| 1x70/16 | RM | 9.8 | 5.5 | 22.1 | 2.5 | 31 | 465 | 1315 | 32 | 640 | 1409 | 31 | 465 | 1315 | 42 kV |
| 1x95/16 | RM | 11.3 | 5.5 | 23.6 | 2.5 | 32 | 480 | 1580 | 33 | 660 | 1675 | 32 | 480 | 1579 | 42 kV |
| 1x120/16 | RM | 12.8 | 5.5 | 25.1 | 2.5 | 34 | 510 | 1862 | 35 | 700 | 1968 | 34 | 510 | 1861 | 42 kV |
| 1x150/25 | RM | 14.2 | 5.5 | 26.5 | 2.5 | 35 | 525 | 2212 | 36 | 720 | 2320 | 35 | 525 | 2212 | 42 kV |
| 1x185/25 | RM | 15.8 | 5.5 | 28.1 | 2.5 | 37 | 555 | 2585 | 38 | 760 | 2697 | 37 | 555 | 2585 | 42 kV |
| 1x240/25 | RM | 18.3 | 5.5 | 30.6 | 2.5 | 39 | 585 | 3181 | 40 | 800 | 3303 | 39 | 585 | 3181 | 42 kV |
| 1x300/25 | RM | 20.7 | 5.5 | 33.0 | 2.5 | 42 | 630 | 3851 | 43 | 860 | 3978 | 42 | 630 | 3763 | 42 kV |
| 1x400/35 | RM | 23.3 | 5.5 | 35.6 | 2.5 | 44 | 660 | 4795 | 45 | 900 | 4925 | 44 | 660 | 4795 | 42 kV |
| 1x500/35 | RM | 26.5 | 5.5 | 38.8 | 2.5 | 47 | 705 | 5873 | 49 | 980 | 6006 | 47 | 705 | 5872 | 42 kV |
| 18/30kv | |||||||||||||||
| 1x50/16 | RM | 8.2 | 8.0 | 25.5 | 2.5 | 34 | 510 | 1292 | 35 | 700 | 1405 | 34 | 510 | 1292 | 63 kV |
| 1x70/16 | RM | 9.8 | 8.0 | 27.1 | 2.5 | 36 | 540 | 1542 | 37 | 740 | 1646 | 36 | 540 | 1542 | 63 kV |
| 1x95/16 | RM | 11.3 | 8.0 | 28.6 | 2.5 | 37 | 555 | 1818 | 38 | 760 | 1926 | 37 | 555 | 1817 | 63 kV |
| 1x120/16 | RM | 12.8 | 8.0 | 30.1 | 2.5 | 39 | 585 | 2110 | 40 | 800 | 2227 | 39 | 585 | 2110 | 63 kV |
| 1x150/25 | RM | 14.2 | 8.0 | 31.5 | 2.5 | 40 | 600 | 2473 | 41 | 820 | 2590 | 40 | 600 | 2473 | 63 kV |
| 1x185/25 | RM | 15.8 | 8.0 | 33.1 | 2.5 | 42 | 630 | 2854 | 43 | 860 | 2975 | 42 | 630 | 2853 | 63 kV |
| 1x240/25 | RM | 18.3 | 8.0 | 35.6 | 2.5 | 44 | 660 | 3468 | 45 | 900 | 3594 | 44 | 660 | 3467 | 63 kV |
| 1x300/25 | RM | 20.7 | 8.0 | 38.0 | 2.5 | 47 | 705 | 4164 | 48 | 960 | 4300 | 47 | 705 | 4164 | 63 kV |
| 1x400/35 | RM | 23.3 | 8.0 | 40.6 | 2.5 | 49 | 735 | 5131 | 51 | 1020 | 5290 | 49 | 735 | 5131 | 63 kV |
| 1x500/35 | RM | 26.5 | 8.0 | 43.8 | 2.6 | 53 | 795 | 6235 | 54 | 1080 | 6403 | 53 | 795 | 6234 | 63 kV |
Expand all
Only some product parameters are displayed. For more product information, please contact us.
The above parameters are for reference only.
Cable Structure

Applications
Applications
This series of medium-voltage XLPE power cables is widely used in:
Underground power distribution systems
Industrial plants and substations
Power plants and power distribution projects
Urban and rural power distribution networks
Cable trenches, tunnels, and direct burial environments
Electrical characteristics:
Test voltage:21 kV
Maximal operating conductor temperature:+90 °C
Maximal short-circuit temperature:+250 °C
Operating temperature range:–35 °C – +90 °C
Minimal storage temperature:–35 °C
Minimal temperature for laying:–20 °C
Colour of insulation:uncoloured
Colour of sheath:black
Flame retardant:no
