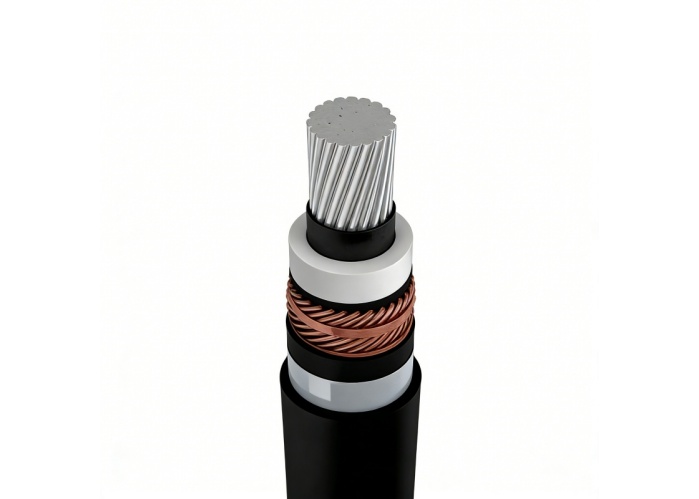

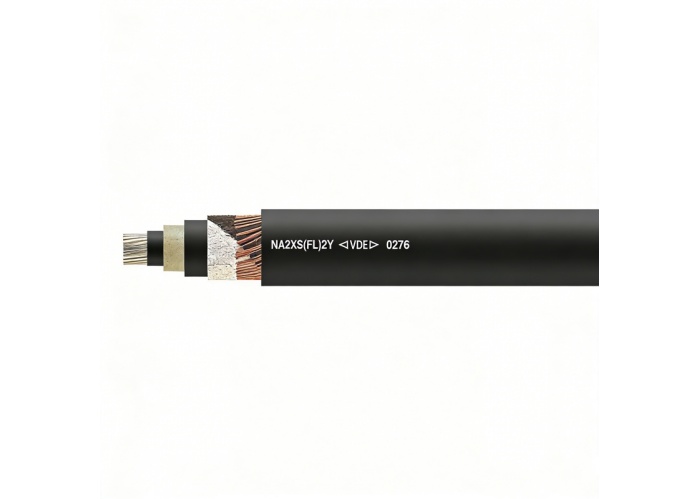

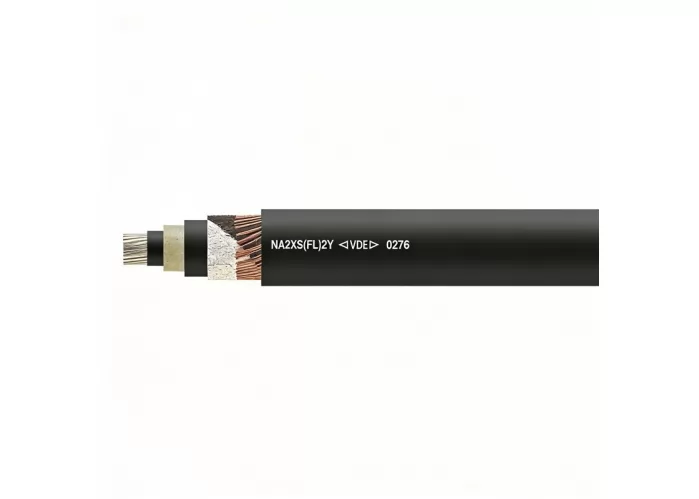

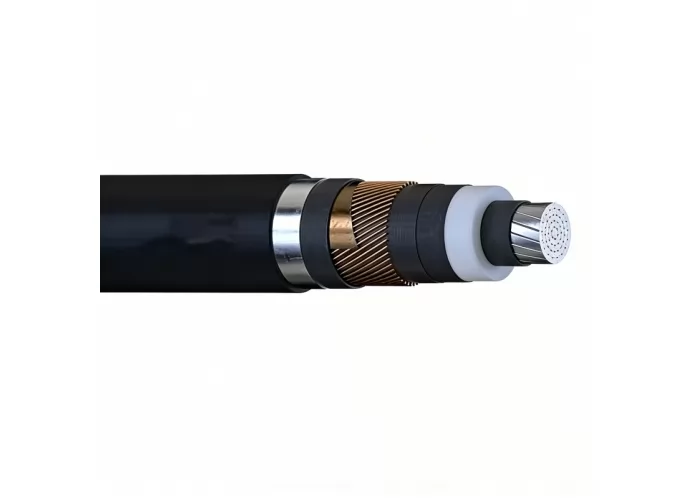

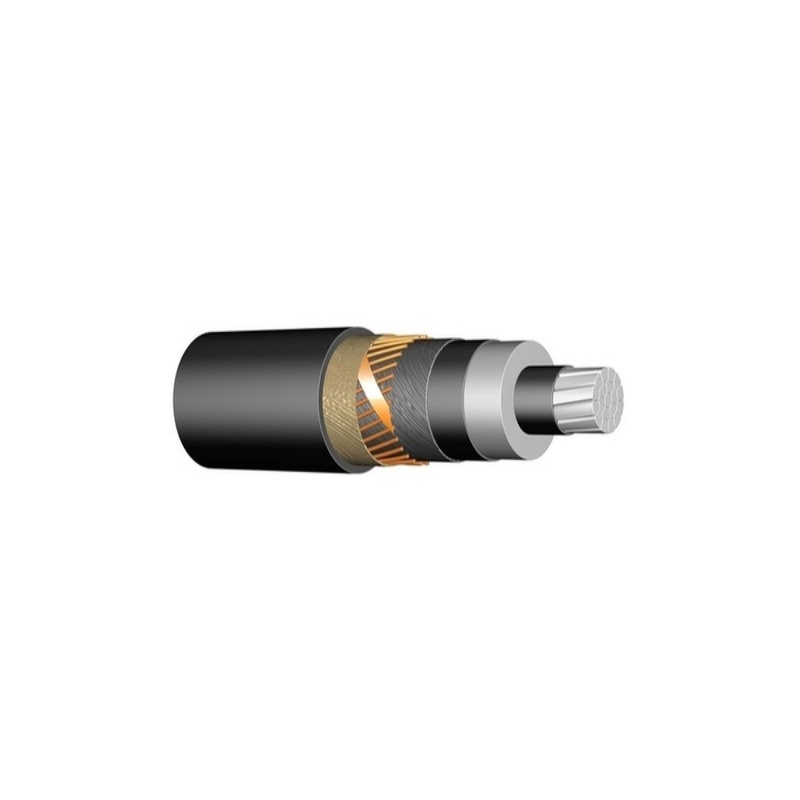

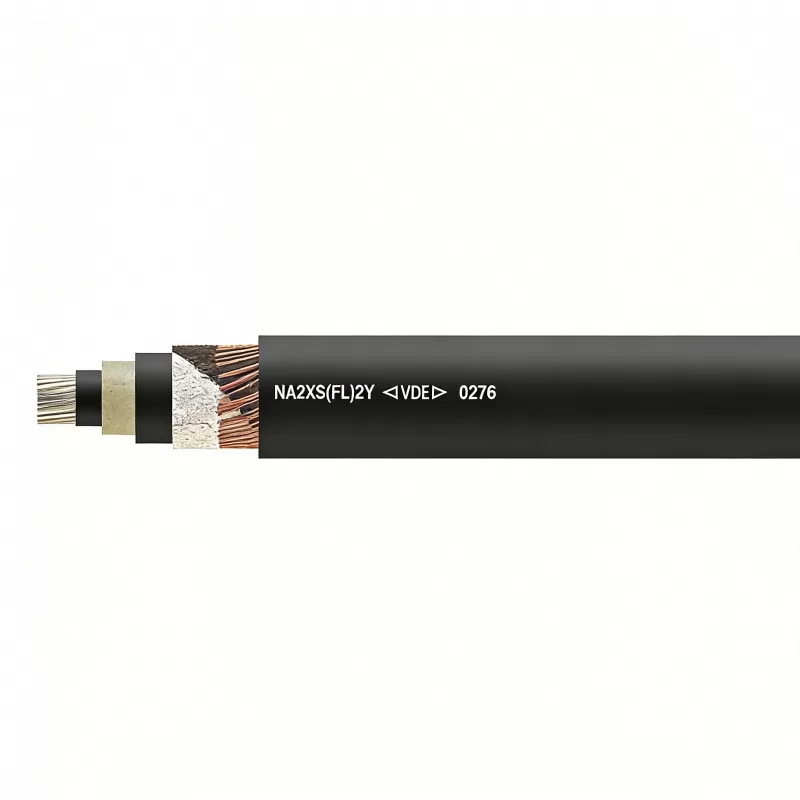

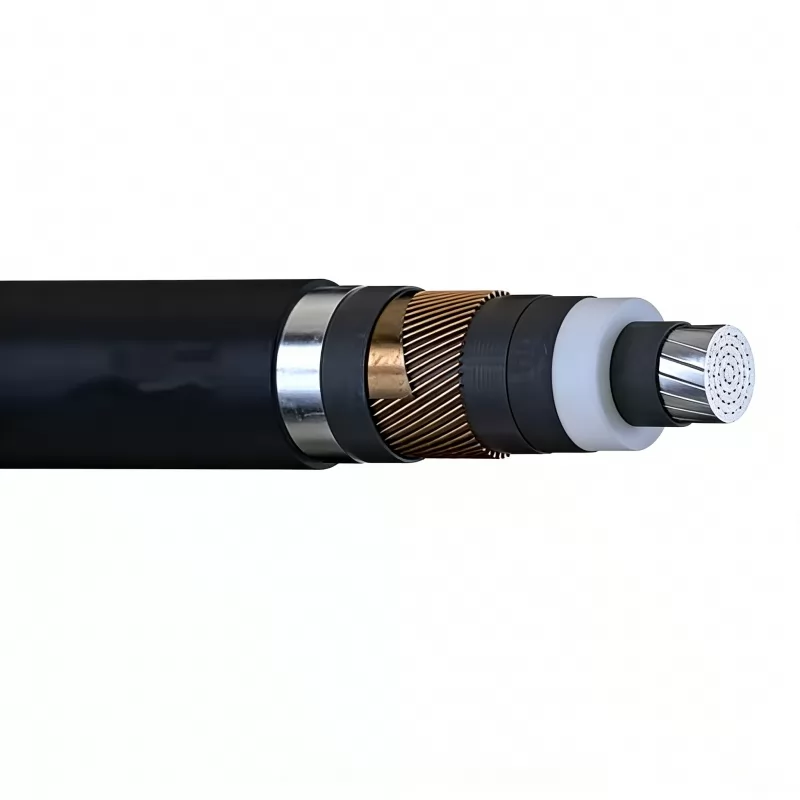

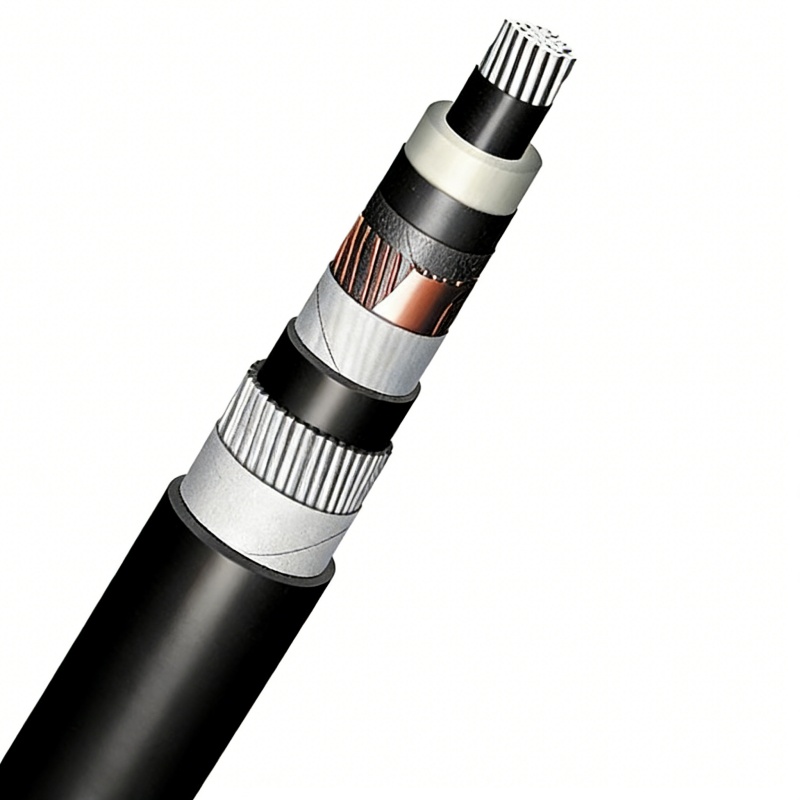

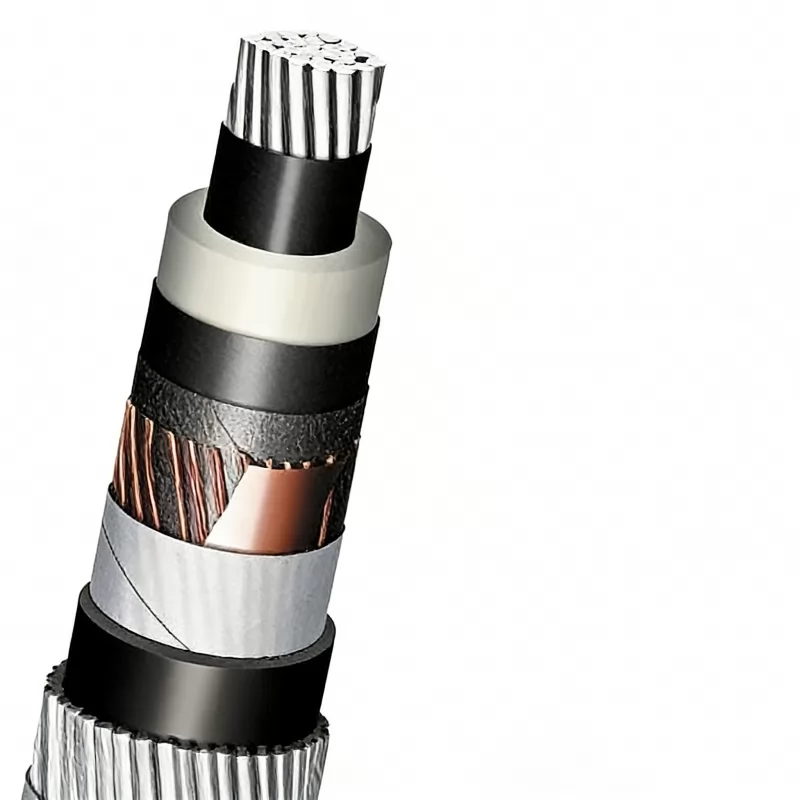

NA2XS2Y/NA2XS(F)2Y/NA2XS(FL)2Y
N: Cable
A: Aluminum conductor
2X: Cross-linked polyethylene (XLPE) insulation
S: Same shield
2Y: Polyethylene (PE) sheath
F: Longitudinal waterproof
FL: Longitudinal and transverse waterproof
The NA2XS2Y / NA2XS(F)2Y / NA2XS(FL)2Y series are medium-voltage power cables conforming to the VDE German standard, with rated voltages of 6/10 kV, 12/20 kV, and 18/30 kV. They employ an aluminum conductor + XLPE cross-linked polyethylene insulation + copper wire metal shield + PE sheath structure.
Compared to copper conductor cables, this series is lighter and has lower material costs while ensuring safe operation and compliance with electrical performance standards, making it particularly suitable for long-distance laying and large-scale power infrastructure projects.
Through different waterproof structural designs, the products are available in standard, radially waterproof (F), and longitudinally fully waterproof (FL) types to meet the needs of various engineering environments, including underground laying, direct burial, and high groundwater levels.
Share:
This series of cables is designed and manufactured in strict accordance with IEC 60502-2 and DIN VDE 0276-620 international standards, ensuring that medium-voltage cables meet the highest specifications in terms of electrical performance, mechanical strength, and long-term reliability.
Waterproofing options:
NA2XS2Y: No waterproofing, suitable for dry environments or conduit installation
NA2XS(F)2Y: Radial waterproofing, suitable for humid environments
NA2XS(FL)2Y: Longitudinal water-blocking, suitable for direct burial and areas with high groundwater levels

Customization Services
We support customization based on client project requirements, including:
Aluminum conductor cross-section and structural design;
Voltage rating;
Waterproof structure (non-waterproof / F / FL);
Shielding method and cross-section;
Sheath material, color, and printing;
Compliance with different national standards and project technical specifications.

Structural Features
Aluminum Conductor (NA)
Lightweight, suitable for long-distance laying, with a better overall cost than copper conductor solutions
Conductor/Insulation Shielding System
Optimizes electric field distribution and reduces electrical stress
XLPE Insulation (X)
Heat-resistant and aging-resistant, suitable for long-term medium-voltage operation
Copper Wire Metal Shielding (S)
Provides reliable grounding and electric field control
PE Sheath (2Y)
Good resistance to moisture, chemical corrosion, and weathering
Technical Data
| Number of cores and cross-section | Shape of conductor | Conductor diameter | Nominal Insulation Thickness | Diameter Over Insulation | Nominal sheath thickness | N2XS(F)2Y | N2XS(FL)2Y | N2XS2Y | Test voltage | ||||||
| mm² | / | mm | mm | mm | mm | Outer diameter (mm) | Bending radius (mm) | Weight (kg/km) | Outer diameter (mm) | Bending radius (mm) | Weight (kg/km) | Outer diameter (mm) | Bending radius (mm) | Weight (kg/km) | KV |
| 6/10kv | |||||||||||||||
| 1x35/16 | RM | 7.2 | 3.4 | 15.3 | 2.5 | / | 24 | 360 | 803 | 21 kV | |||||
| 1x50/16 | RM | 8.2 | 3.4 | 16.3 | 2.5 | 26 | 375 | 928 | 26 | 520 | 1010 | 25 | 375 | 928 | 21 kV |
| 1x70/16 | RM | 9.8 | 3.4 | 17.9 | 2.5 | 26 | 390 | 1155 | 28 | 560 | 1238 | 26 | 390 | 1154 | 21 kV |
| 1x95/16 | RM | 11.3 | 3.4 | 19.4 | 2.5 | 28 | 420 | 1410 | 29 | 580 | 1495 | 28 | 420 | 1410 | 21 kV |
| 1x120/16 | RM | 12.8 | 3.4 | 20.9 | 2.5 | 30 | 450 | 1683 | 31 | 620 | 1773 | 30 | 450 | 1682 | 21 kV |
| 1x150/25 | RM | 14.2 | 3.4 | 22.3 | 2.5 | 31 | 465 | 2052 | 32 | 640 | 2119 | 31 | 465 | 2025 | 21 kV |
| 1x185/25 | RM | 15.8 | 3.4 | 23.9 | 2.5 | 32 | 480 | 2384 | 34 | 680 | 2483 | 32 | 480 | 2383 | 21 kV |
| 1x240/25 | RM | 18.3 | 3.4 | 26.4 | 2.5 | 35 | 525 | 2964 | 36 | 720 | 3073 | 35 | 525 | 2965 | 21 kV |
| 1x300/25 | RM | 20.7 | 3.4 | 28.8 | 2.5 | 37 | 555 | 3624 | 39 | 780 | 3737 | 37 | 555 | 3624 | 21 kV |
| 1x400/35 | RM | 23.3 | 3.4 | 31.4 | 2.5 | 40 | 600 | 4575 | 42 | 840 | 4697 | 40 | 600 | 4574 | 21 kV |
| 1x500/35 | RM | 26.5 | 3.4 | 34.6 | 2.5 | 43 | 645 | 5598 | 44 | 880 | 5729 | 43 | 645 | 5597 | 21 kV |
| 12/20kv | |||||||||||||||
| 1x35/16 | RM | 7.2 | 5.5 | 19.5 | 2.5 | 28 | 420 | 949 | / | 28 | 420 | 948 | 42 kV | ||
| 1x50/16 | RM | 8.2 | 5.5 | 20.5 | 2.5 | 29 | 435 | 1079 | 30 | 600 | 1166 | 29 | 435 | 1078 | 42 kV |
| 1x70/16 | RM | 9.8 | 5.5 | 22.1 | 2.5 | 31 | 465 | 1315 | 32 | 640 | 1409 | 31 | 465 | 1315 | 42 kV |
| 1x95/16 | RM | 11.3 | 5.5 | 23.6 | 2.5 | 32 | 480 | 1580 | 33 | 660 | 1675 | 32 | 480 | 1579 | 42 kV |
| 1x120/16 | RM | 12.8 | 5.5 | 25.1 | 2.5 | 34 | 510 | 1862 | 35 | 700 | 1968 | 34 | 510 | 1861 | 42 kV |
| 1x150/25 | RM | 14.2 | 5.5 | 26.5 | 2.5 | 35 | 525 | 2212 | 36 | 720 | 2320 | 35 | 525 | 2212 | 42 kV |
| 1x185/25 | RM | 15.8 | 5.5 | 28.1 | 2.5 | 37 | 555 | 2585 | 38 | 760 | 2697 | 37 | 555 | 2585 | 42 kV |
| 1x240/25 | RM | 18.3 | 5.5 | 30.6 | 2.5 | 39 | 585 | 3181 | 40 | 800 | 3303 | 39 | 585 | 3181 | 42 kV |
| 1x300/25 | RM | 20.7 | 5.5 | 33.0 | 2.5 | 42 | 630 | 3851 | 43 | 860 | 3978 | 42 | 630 | 3763 | 42 kV |
| 1x400/35 | RM | 23.3 | 5.5 | 35.6 | 2.5 | 44 | 660 | 4795 | 45 | 900 | 4925 | 44 | 660 | 4795 | 42 kV |
| 1x500/35 | RM | 26.5 | 5.5 | 38.8 | 2.5 | 47 | 705 | 5873 | 49 | 980 | 6006 | 47 | 705 | 5872 | 42 kV |
| 18/30kv | |||||||||||||||
| 1x50/16 | RM | 8.2 | 8.0 | 25.5 | 2.5 | 34 | 510 | 1292 | 35 | 700 | 1405 | 34 | 510 | 1292 | 63 kV |
| 1x70/16 | RM | 9.8 | 8.0 | 27.1 | 2.5 | 36 | 540 | 1542 | 37 | 740 | 1646 | 36 | 540 | 1542 | 63 kV |
| 1x95/16 | RM | 11.3 | 8.0 | 28.6 | 2.5 | 37 | 555 | 1818 | 38 | 760 | 1926 | 37 | 555 | 1817 | 63 kV |
| 1x120/16 | RM | 12.8 | 8.0 | 30.1 | 2.5 | 39 | 585 | 2110 | 40 | 800 | 2227 | 39 | 585 | 2110 | 63 kV |
| 1x150/25 | RM | 14.2 | 8.0 | 31.5 | 2.5 | 40 | 600 | 2473 | 41 | 820 | 2590 | 40 | 600 | 2473 | 63 kV |
| 1x185/25 | RM | 15.8 | 8.0 | 33.1 | 2.5 | 42 | 630 | 2854 | 43 | 860 | 2975 | 42 | 630 | 2853 | 63 kV |
| 1x240/25 | RM | 18.3 | 8.0 | 35.6 | 2.5 | 44 | 660 | 3468 | 45 | 900 | 3594 | 44 | 660 | 3467 | 63 kV |
| 1x300/25 | RM | 20.7 | 8.0 | 38.0 | 2.5 | 47 | 705 | 4164 | 48 | 960 | 4300 | 47 | 705 | 4164 | 63 kV |
| 1x400/35 | RM | 23.3 | 8.0 | 40.6 | 2.5 | 49 | 735 | 5131 | 51 | 1020 | 5290 | 49 | 735 | 5131 | 63 kV |
| 1x500/35 | RM | 26.5 | 8.0 | 43.8 | 2.6 | 53 | 795 | 6235 | 54 | 1080 | 6403 | 53 | 795 | 6234 | 63 kV |
Expand all
Only some product parameters are displayed. For more product information, please contact us.
The above parameters are for reference only.

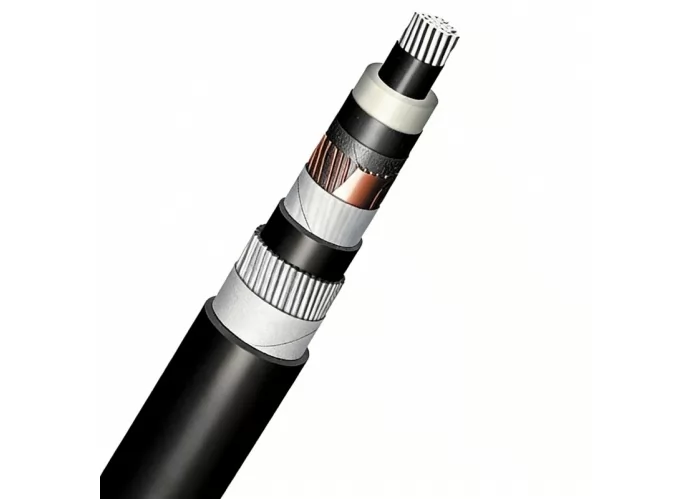

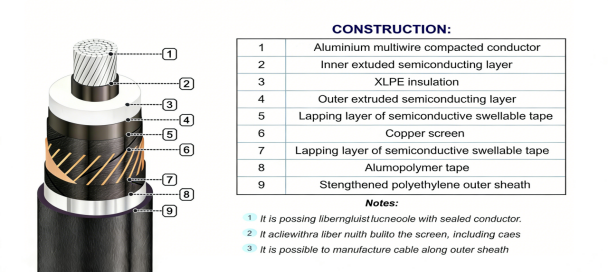

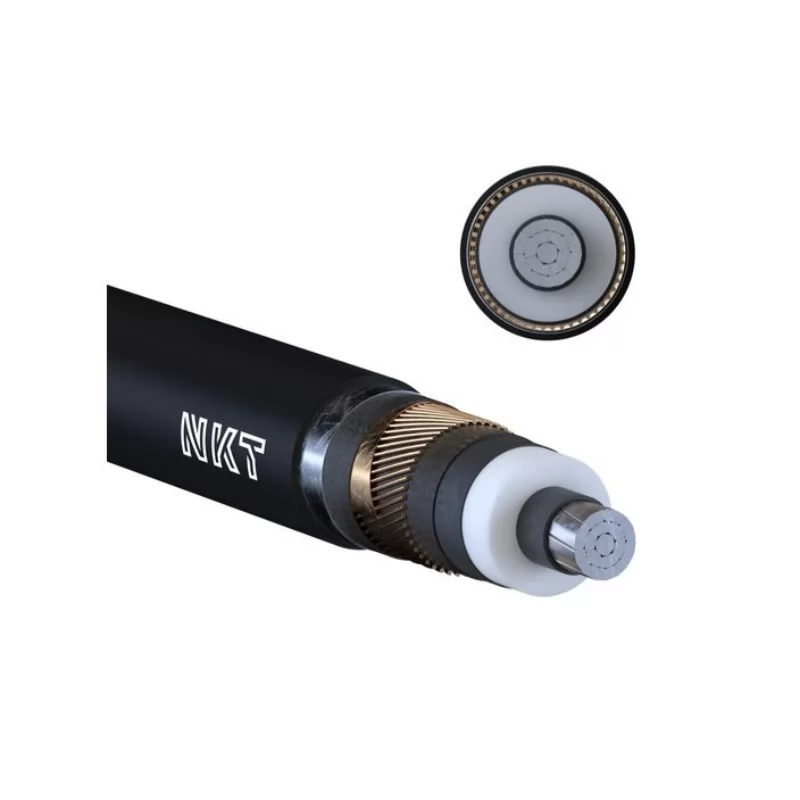

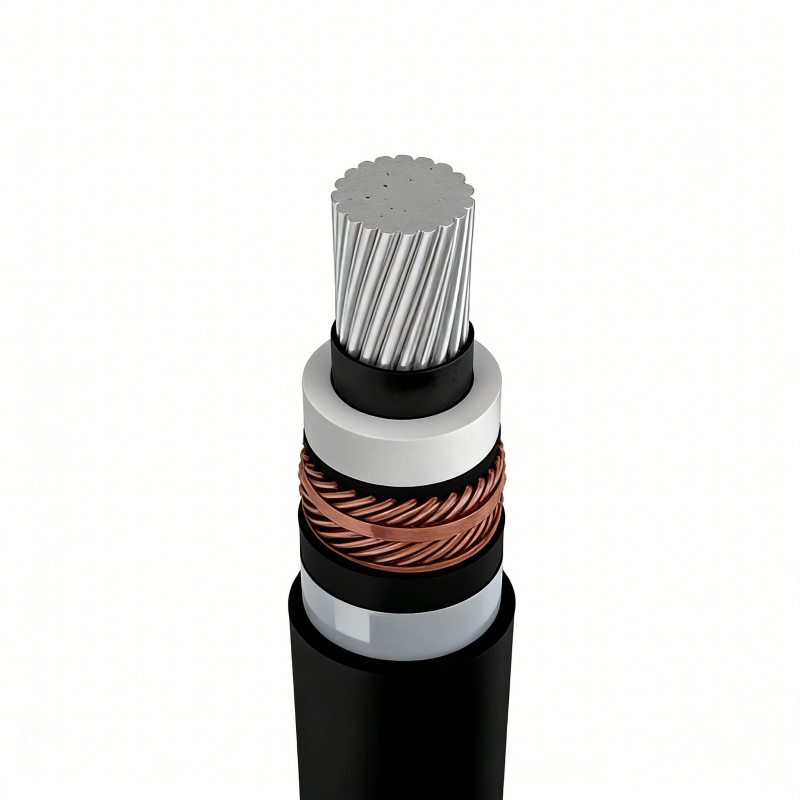

Cable Structure

Features
Application Areas
Medium-voltage power distribution and transmission lines
Urban power infrastructure
Power supply for industrial parks and public utilities
Underground direct burial and long-distance power transmission projects
Cost- and weight-sensitive medium-voltage projects
Electrical characteristics:
Test voltage:21 kV
Maximal operating conductor temperature:+90 °C
Maximal short-circuit temperature:+250 °C
Operating temperature range:–35 °C – +90 °C
Minimal storage temperature:–35 °C
Minimal temperature for laying:–20 °C
Colour of insulation:uncoloured
Colour of sheath:black
Flame retardant:no
