Understanding Bare Copper Conductors: Types, Uses, and Benefits

Bare copper wire, a fundamental component in electrical systems, plays a key role in the efficient and safe transmission of electrical power. Unlike insulated wire, bare copper wire is uncoated, exposing pure copper for maximum electrical conductivity. This article explores the characteristics, uses, and different types of bare conductors, along with key considerations for installation and safety.

What is a Bare Conductor?

A bare conductor is a wire made from copper or aluminum without any insulation or protective coating. These conductors are valued for their excellent electrical conductivity and corrosion resistance. Copper is often the material of choice due to its superior electrical properties, but aluminum is also used for cost-effectiveness and lighter weight. Bare conductors are often used in specific electrical environments where insulation isn’t necessary, such as in grounding systems and power transmission.

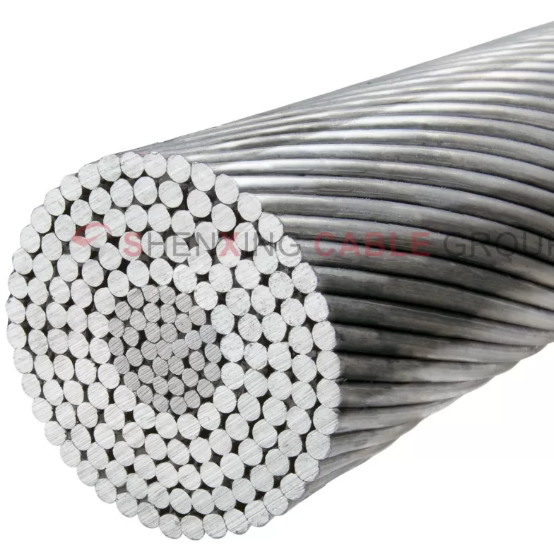

Bare Conductor Cable-ACSR

Types of Bare Conductors

Bare conductors come in different forms, each tailored to specific applications:

• Bare Copper Wire: Pure copper wire offers excellent conductivity and is widely used in grounding, earthing, and bonding applications.

• AAAC (All-Aluminum Alloy Conductor): Made from aluminum alloy, these conductors offer a high strength-to-weight ratio and are corrosion-resistant, making them ideal for coastal or industrial areas.

• ACSR (Aluminum Conductor Steel Reinforced): ACSR combines aluminum’s conductivity with steel's tensile strength, making it ideal for long-distance, high-voltage transmission lines.

• AAC (All-Aluminum Conductor): This conductor, known for its light weight and excellent conductivity, is typically used in urban power distribution networks.

• ACAR (Aluminum Conductor Alloy Reinforced): ACAR provides a balance between conductivity and mechanical strength, suitable for applications where both are important.

Applications of Bare Conductors

Bare copper conductors are essential for a wide range of electrical applications:

• Power Transmission: Bare copper wire is commonly used in overhead transmission lines, where its efficient heat dissipation is ideal for high-voltage, long-distance power transfer.

• Grounding and Earthing: Grounding systems rely on bare copper conductors to provide a secure, low-resistance path for fault currents to dissipate into the ground, protecting electrical systems and equipment.

• Lightning Protection: Bare copper is used in lightning protection systems to provide a direct path for lightning strikes to be safely diverted into the ground.

• Telecommunications: Bare copper wire is used for telephone and internet cabling, ensuring reliable signal transmission with minimal loss.

• Renewable Energy: Bare copper conductors are essential for solar panel installations, wind turbines, and other renewable energy systems, where they are used for grounding and efficient energy transfer.

• Construction and Infrastructure: In building construction, bare copper wire is used for bonding, grounding, and lightning protection, offering long-lasting and effective solutions.

Why Bare Copper for Grounding Wires?

Grounding wires are typically left uninsulated for several practical reasons:

• Direct Earth Connection: Bare grounding wires establish a direct path to the earth, allowing fault currents to quickly dissipate, reducing the risk of electrical hazards like electric shock or fire.

• Cost-Effectiveness: Since grounding wires do not carry operational currents under normal conditions, they can be left uninsulated, saving on material and manufacturing costs.

• Durability: Bare ground wires are highly resistant to environmental factors like soil moisture, making them more durable and long-lasting than insulated wires.

• Safety and Efficiency: The absence of insulation enhances the connection between the wire and the grounding system, improving overall safety and system reliability.

Advantages of Bare Copper Conductors

• High Conductivity: Bare copper offers superior electrical conductivity, ensuring efficient power transfer.

• Corrosion Resistance: Copper is naturally resistant to corrosion, even in harsh environmental conditions.

• Flexibility: Bare copper wire is easy to manipulate and shape, making it versatile for various applications.

• Cost-Effective: Without the need for insulation, bare copper wire is often more economical, especially for grounding systems.

Installation Considerations and Safety

Proper installation is critical for the reliable and safe operation of bare copper conductors:

• Planning and Compliance: Ensure that all environmental factors and electrical codes are considered when planning the installation of bare conductors.

• Grounding System Integrity: For grounding applications, design the system to provide a low-resistance path to the earth. This includes selecting the right grounding materials and installation techniques.

• Clearance and Spacing: Adequate clearance between conductors and structures is essential to prevent accidental contact and reduce the risk of arcing.

• Corrosion Protection: Anti-corrosive treatments can prolong the lifespan of bare copper conductors, especially in challenging environments.

• Mechanical Stress Protection: In areas prone to mechanical impact, protect conductors with conduits or other barriers to prevent damage.

• Verification: After installation, conduct tests to ensure the conductor’s integrity and the system’s overall safety.

Where to Buy Bare Copper Conductors？

If you're looking for high-quality cable products, consider Shenxing Cable. We offer a wide range of cable specifications to perfectly meet your electrical project needs—from large industrial installations to simple home grounding systems. Need reliable bare conductor cable? Shenxing Cable has the expertise and resources to help you easily complete any electrical task!

Conclusion

Bare copper conductors are essential in various applications, from power transmission and grounding to telecommunications and renewable energy systems. With their high conductivity, durability, and cost-effectiveness, bare copper wire remains a preferred choice in the electrical industry. Whether you're grounding electrical systems, connecting power lines, or installing renewable energy infrastructure, bare copper conductors provide the performance and reliability needed for safe and efficient operation.
